Rain Bird ESP-LX User Manual

72 ESP-LX Modular Controller
Install Module(s)

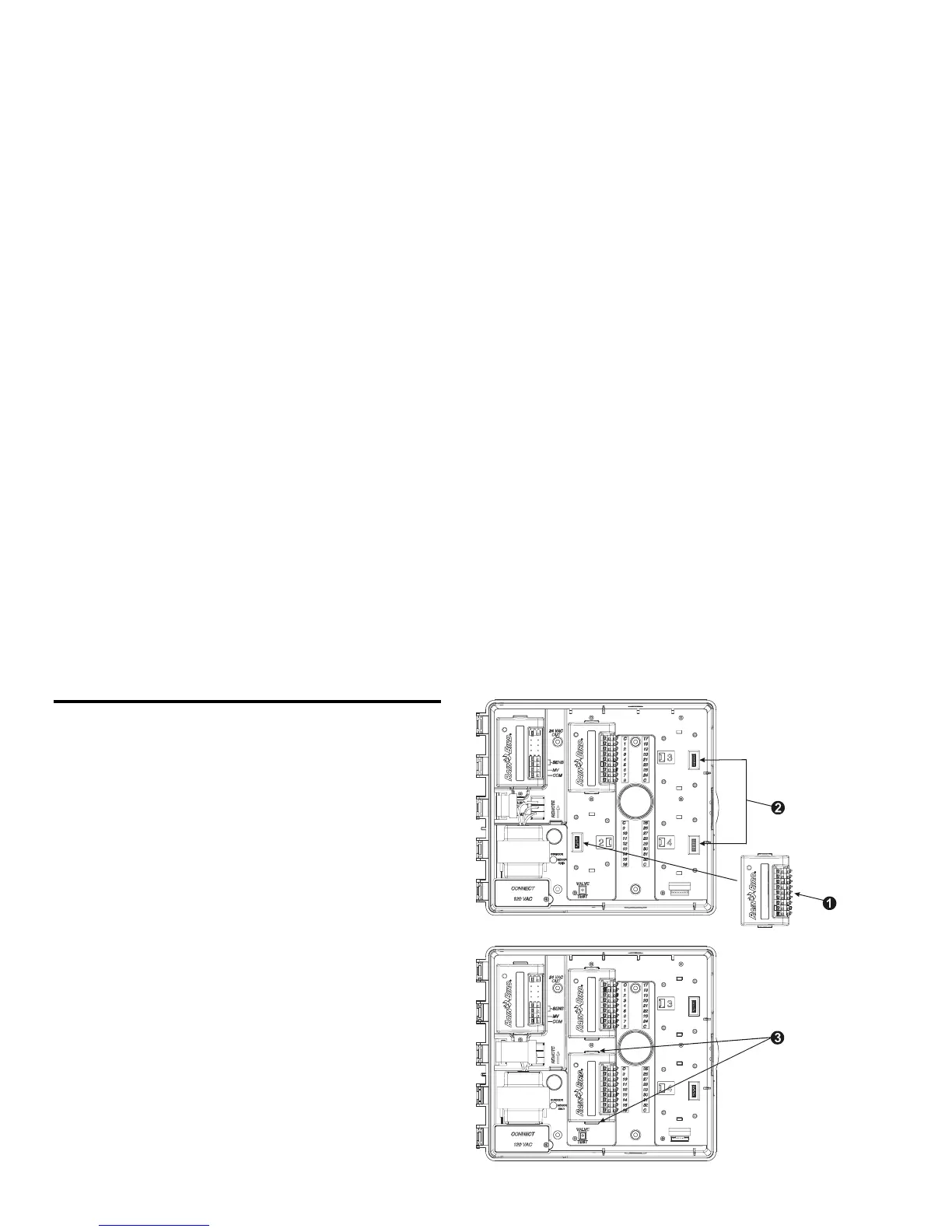

The ESP-LX Modular controller lets you add modules for
additional valve connections. The controller can accommodate up
to four modules.
 To install a module, align the connector on the back of the
module with the module slot on the back panel. Press firmly
until the module snaps into place.
 Use the remaining connectors to install additional modules.
 To remove a module, press in on the two release buttons and
pull the module from the back panel.

Rain Bird ESP-LX Specifications

General

Enclosure rating	NEMA 3R
Sensor input	Yes
Type	Modular
Enclosure	Indoor/Outdoor
Display	LCD
Programs	4
Master Valve/Pump Start	Yes
Power Source	120V AC
Power supply	Included
Battery backup	Yes (for memory retention)
Cycle and soak	Yes
Mounting	Wall mount
