Rain Bird ESP-LX User Manual

34 ESP-LX Modular Controller

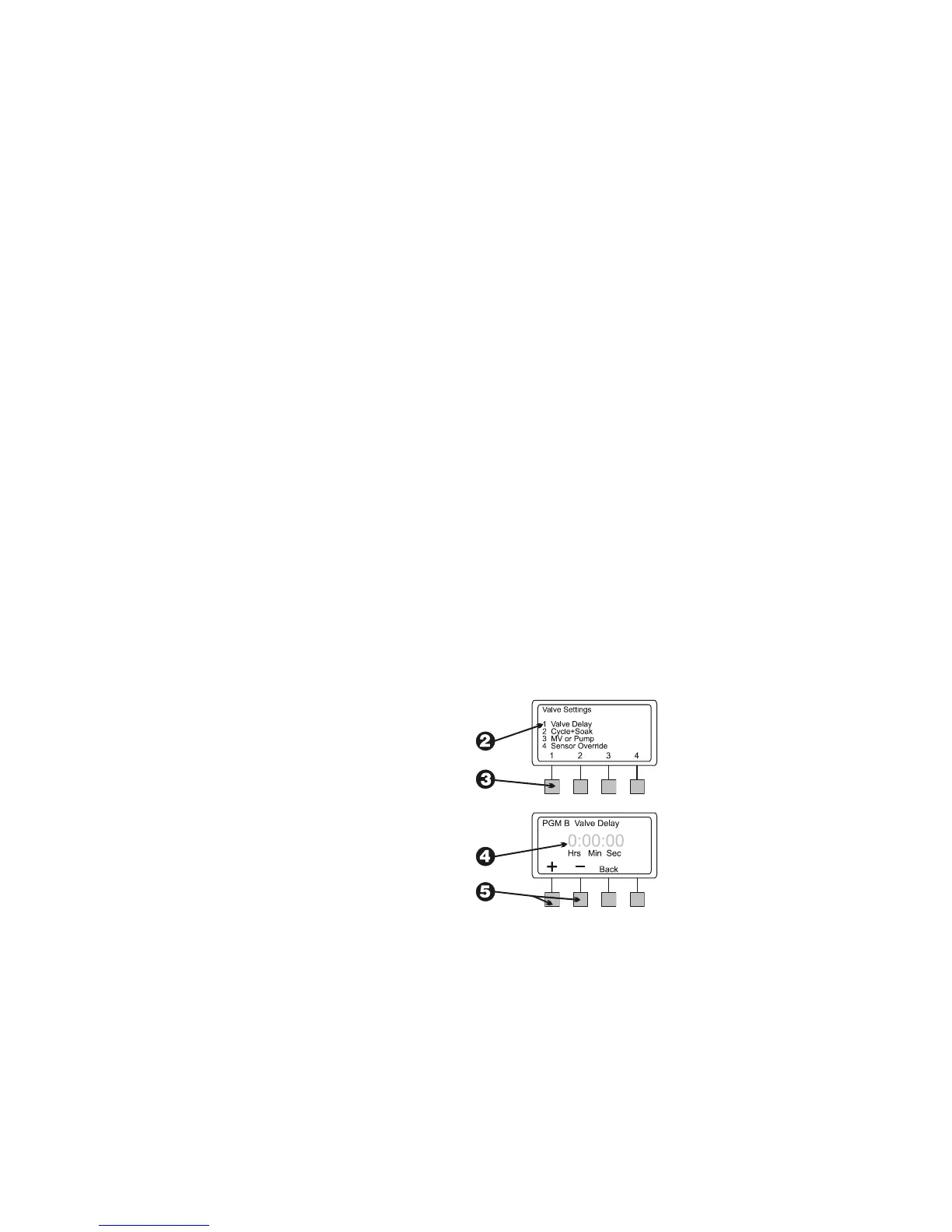

 The Valve Settings menu appears.
 Press “1” on the Valve Settings menu.
 The display shows the selected program, along with the delay
that is currently set between valves. The numbers flash. If the
program you want is not displayed, use the program select
switch to change it. See page 17 for instructions.
 Press “+” or “–” to set the delay time between valves. The
delay can be up to 9 hours long. This delay time will affect all
valves in the selected program.
 To set a valve delay for another program, use the program
select switch to change the program. Then repeat steps 4
through 6.

Rain Bird ESP-LX Specifications

General

Enclosure rating	NEMA 3R
Sensor input	Yes
Type	Modular
Enclosure	Indoor/Outdoor
Display	LCD
Programs	4
Master Valve/Pump Start	Yes
Power Source	120V AC
Power supply	Included
Battery backup	Yes (for memory retention)
Cycle and soak	Yes
Mounting	Wall mount
