Rain Bird ESP-LX User Manual

36 ESP-LX Modular Controller

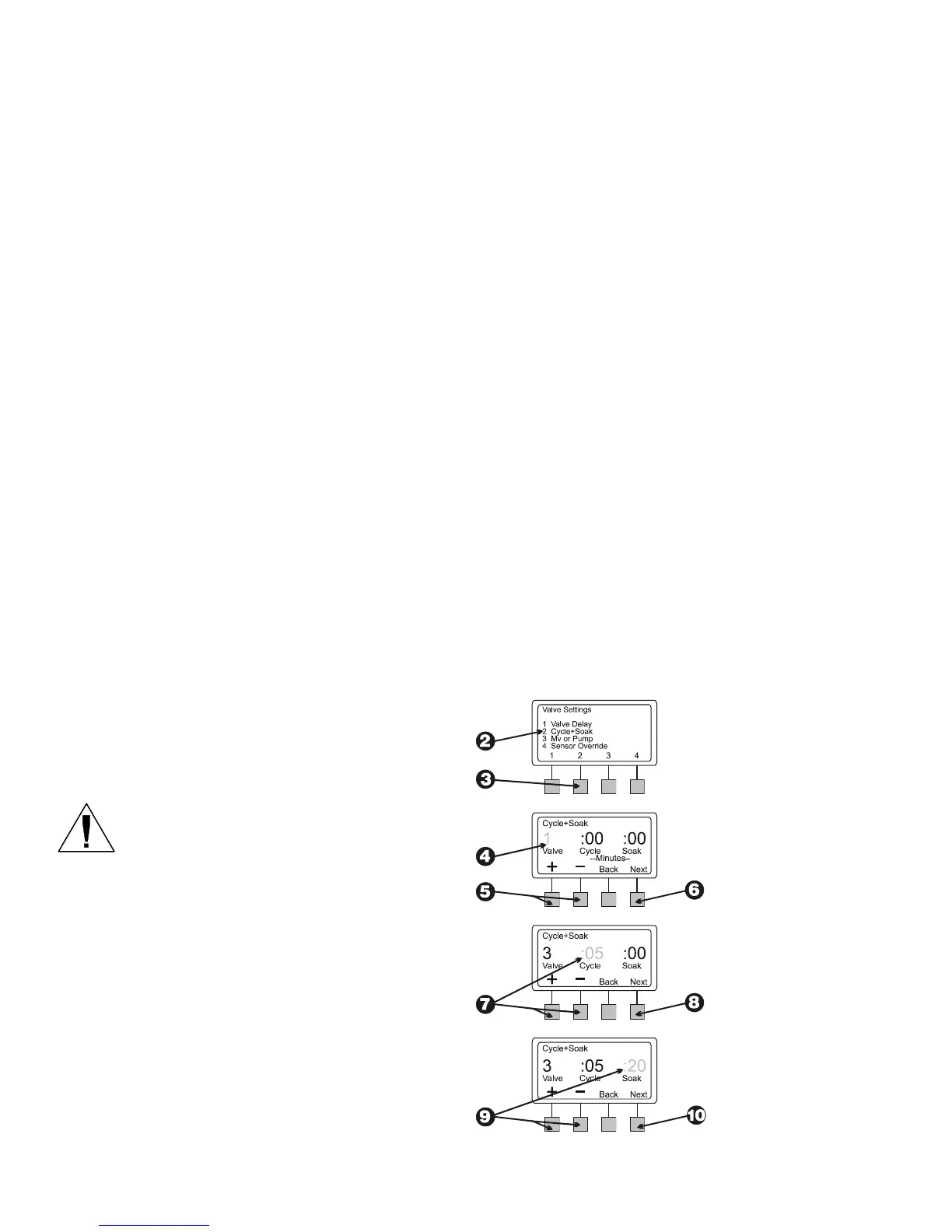

 The Valve Settings menu appears.
 Press “2” on the Valve Settings menu.
 The display shows a valve number and its current settings for
Cycle+Soak™. The valve number flashes.
NOTE: Cycle+Soak™ settings of “:00” indicate
normal operation. The valve will operate for its
programmed run time with no delays for soak time.
 To select a different valve, press “+” or “–” until the valve
number you want appears.
 Press “Next.”
 The Cycle numbers flash. Press “+” or “–” to set the maximum
number of minutes (up to 60) for a watering cycle.
 Press “Next.”
 The Soak numbers flash. Press “+” or “–” to set the minimum
number of minutes (up to 60) for soaking between cycles.
 To set Cycle+Soak™ for another valve, press “Next.” Then
repeat steps 4 through 10.

Rain Bird ESP-LX Specifications

General

Enclosure rating	NEMA 3R
Sensor input	Yes
Type	Modular
Enclosure	Indoor/Outdoor
Display	LCD
Programs	4
Master Valve/Pump Start	Yes
Power Source	120V AC
Power supply	Included
Battery backup	Yes (for memory retention)
Cycle and soak	Yes
Mounting	Wall mount
