X1 P1 Dierential pressure sensor - 12V DC
X2 B3 Core probe
X3 B1 Interior cabinet
X4 B2 Quenching
X5 B4 Humidity
X6 B5 Steam generator
X8 Buzzer - 12V AC
X10 Connection Ethernet PCB
X11 Y5 Clima valve - 12V DC
X12 Level electrode - 12V AC, 500 Hz
X13 Interior light - 11,5V AC
X14 Power supply from T1 - 11.5V AC, 18V AC *
X17 USB connection
X18 SC - pump
X19 Water solenoid valves - Cooling fan
X20 Energy optimizing system
X21 230V power supply
X23 UltraVent without BUS (USA only)
X24 SSR - 12V DC
X26 Voltage selector UL Only
X27 Door contact switch - 12V DC
X30 empty
X31 Bus connection
X32 Potentiometer Time / Core probe
X50 EEPROM
A9:
X7 Cleanjet pump M6
X9 230V power input
X25 Drain valve / micro switch S12

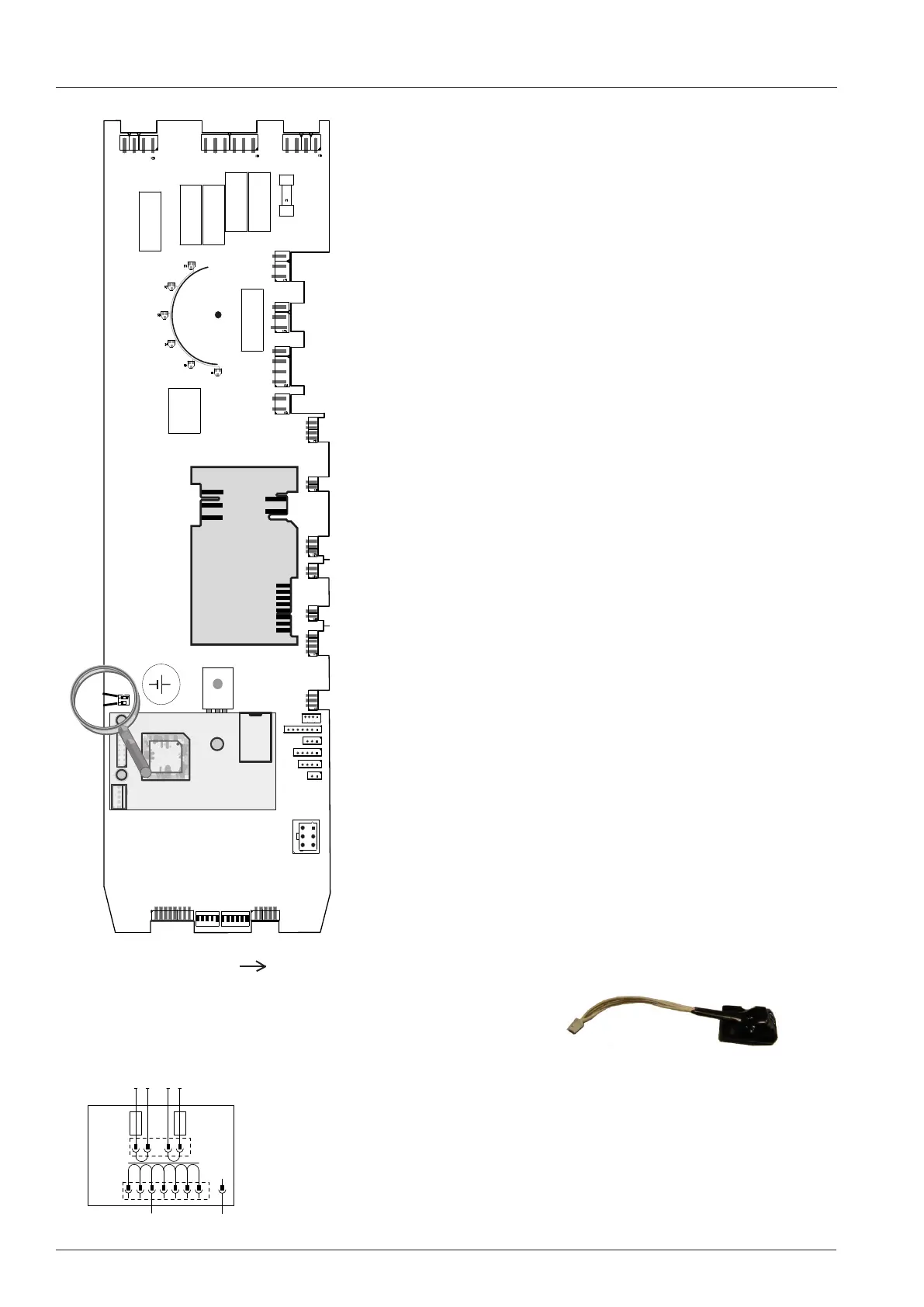

PCB CM_P
T1
?
?
?
200
208
220
230
250
240
0
N
F2
5AT
F1
2AT
11,5V
18V
*
pin counting 1
CR 2032
X20
X19
X18
X21
X23
X14
X13
X11
X 8
X26
X27
X30
X12
X 1
X50
X 2
X 4
X 5
X 6
X 3
X32X24
X10
X31
X17 X16
Dip 1
Dip 2
X9
X25
X7
A9
Ethernet
option
A4
1,6AT
optional Ethernet card
