- 49 - V08 en, SCC
Only when the green LED is ON (power supply existing and electronic motor control ok), the motor is
functional
The fan motor rotates clockwise - anti clockwise with a 120 second interval.
On oor units with 2 motors the bottom motor carries a jumper for bus recognition. This jumper
(40.01.581) is part of the wiring harness. Caution: These jumper pins carry 120Vac!
The motor has 4 dierent fan speeds and runs clockwise - anticlockwise.
60, 61, 101, 201: 500, 1000, 1450, 1550 rpm
62, 102, 202: 500, 1250, 1750, 1850 rpm
It is possible that the motor will reduce speed independently to avoid energy transfer by the rotating fan wheel.
In case the motor develops an internal problem, it will stop and try to restart aer 10 seconds. During this time hot
air productions is stopped, steam is still possible. In the service history Service 55 or 56 (bottom motor) is shown.
(ref. to blink code under “Error messages”
Note: In this case there is no Service 34.x error! - Motor doesn‘t turn, hot air heating is blocked
When changing the fan motor, a new motor sha gasket must always be used!
Failure of the fan motor can have dierent reasons, mainly humidity or voltage
related.
Check all possible humidity sources (steam pipe from steam generator to cabi-
net, motor sha gasket, connection control box to vent pipe, water connections
to nozzles and solenoids etc. )
Check power connections, units 3NAC build before 11_2014: connect motor
power supply to L1, (ref. TI 19 - 2014, MI 01 - 2015)

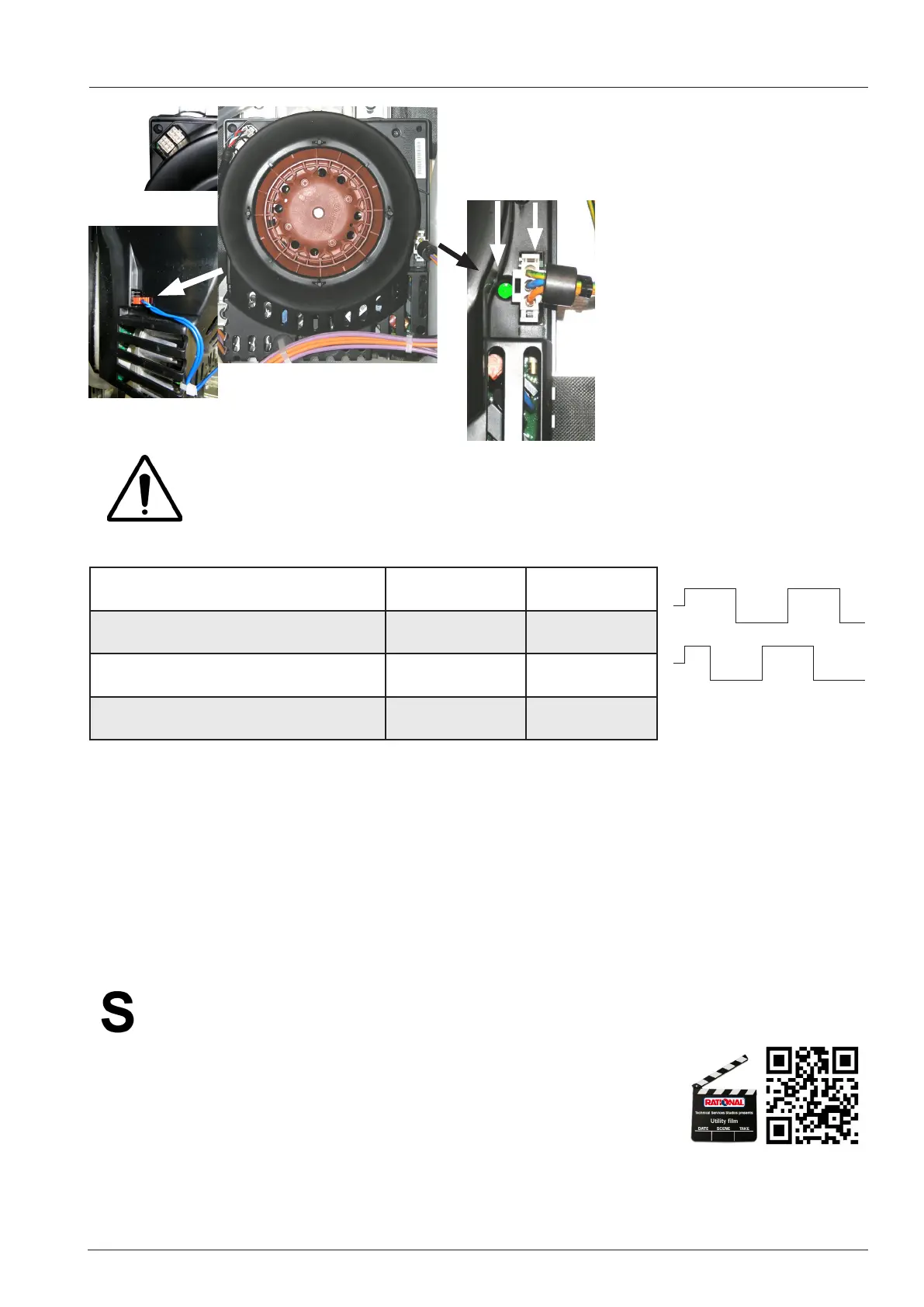

Fan motor SCC Line 61 - 202
Bus
LED
100 - 240V
120 sec
120 sec
120 sec
120 sec
60 sec
Unit size 61 - 101 - 201
Electric and Gas
62 - 102 - 202
Electric and Gas
Motor 40.03.378, Rotor black, 550W,
1NAC 100 - 250V
x ---
Motor 40.03.513, Rotor brown, 700W,
1NAC200 - 250V, 2AC 200-240V
--- x
Motor 40.03.514, Rotor brown, 700W,
3AC 400-480V
x x
http://bit.ly/motor-fan_wheel
