V08 en, SCC - 82 -

Switch unit OFF and ON again aer making any changes!

Adjustments should only be done with SE4, 5, 8 and 20. Do not alter other settings!

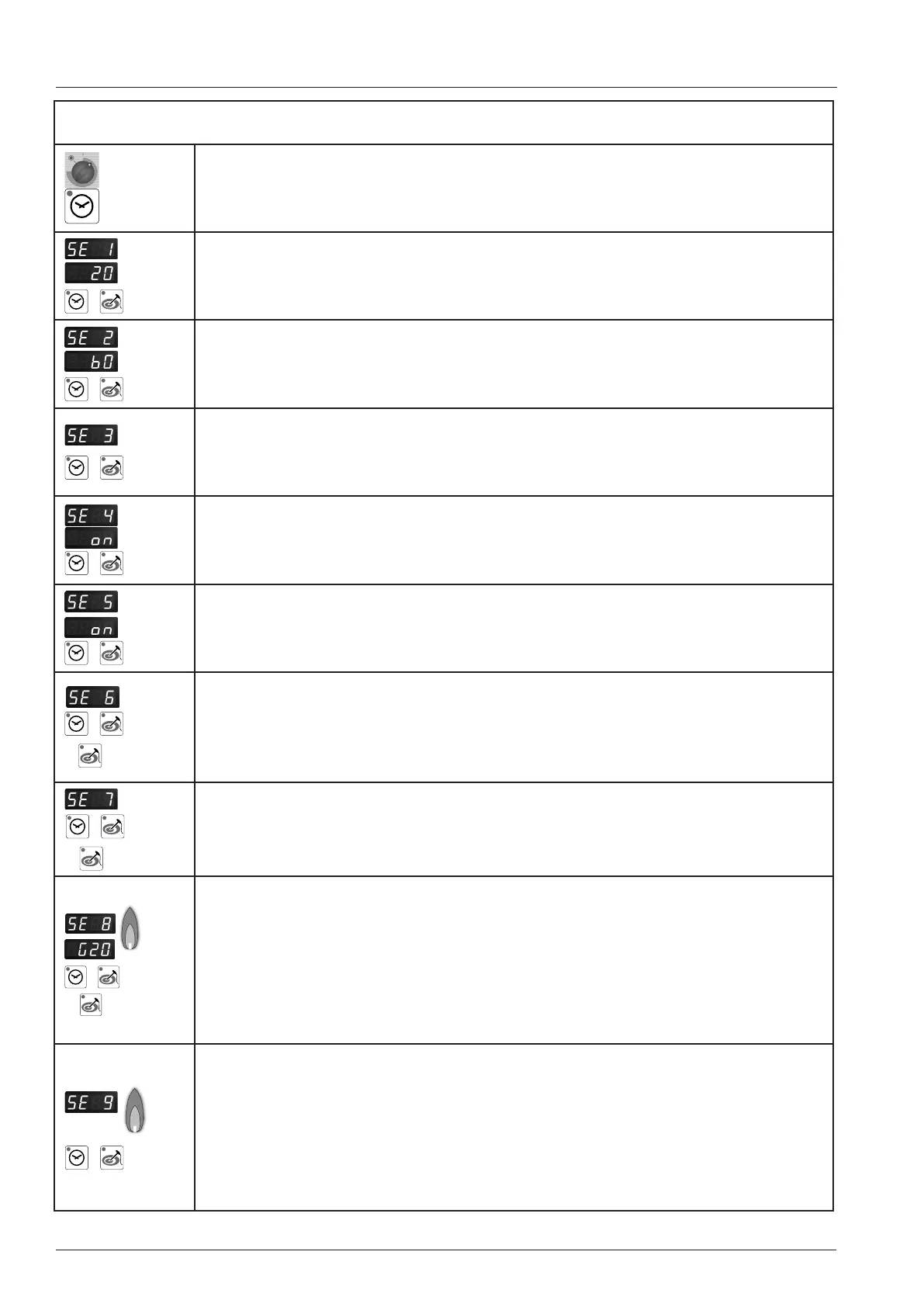

Select desired step with timer dial

(fan motor and heating elements are automatically OFF)

Activate selected step with timer key

Steam heating time since last SC-Automatic

Press the time and core keys simultaneously for 5 seconds to set steam heating time (SE2) to

preset steam heating time plus 1 minute (default 45+1min) => test function for SC-Automat-

Preset Steam heating time until SC-Automatic (default 60min)

Press time key and adjust preset steam heating time from 20 - 120 minutes with timer dial

Flushing time SC-Automatic (default 45 seconds)

Press time key and adjust ushing time of SC- Automatic from 30 - 90 seconds with timer

dial

Operation SC pump (oFF - continuous or on - pulsing)

Press time key and select „on“ or „oFF“ with timer dial

Show mode (on - oFF) SHO

Press time key and select „on“ or „oFF“ with timer dial;

keep time key pressed and press Core key for 1 sec, release core key before

releasing time key,

Setting of quenching temperature hot air.

Press time key and set temperature with temperature dial. Setting: 90°C, possible 75°-105°.

Keep time key pressed and conrm with Core key.

Setting of quenching temperature wet modes (Steam, Combi, Finishing)

Press time key and set temperature with temperature dial. Setting: 80°C, possible 65°-95°.

Keep time key pressed and conrm with Core key.

Setting new gas type (G20, G25, G30, G31, 13A)

Press time key, keep it pressed and select new gas type with timer dial Conrm new gas type

by pressing core temperature key once. Corresponding gas blower speed is automatically

adjusted

NOTE: Aer changing gas type a ue gas analysis must be carried out via

function test.

Nominal length of CO2 screw in mm on gas valve aer gas type modication / changing gas

valve

Press time key, keep it pressed and select with timer dial “ST“ for steam, “HA1“ for hot air top

or “HA2“ for hot air bottom (only 201/202) with timer dial;

Average length in mm of CO2 screw on gas valve is shown on timer display

CM_P - Basic settings - SE
