Rational CombiMaster Plus CMP User Manual

V08 en, SCC - 84 -

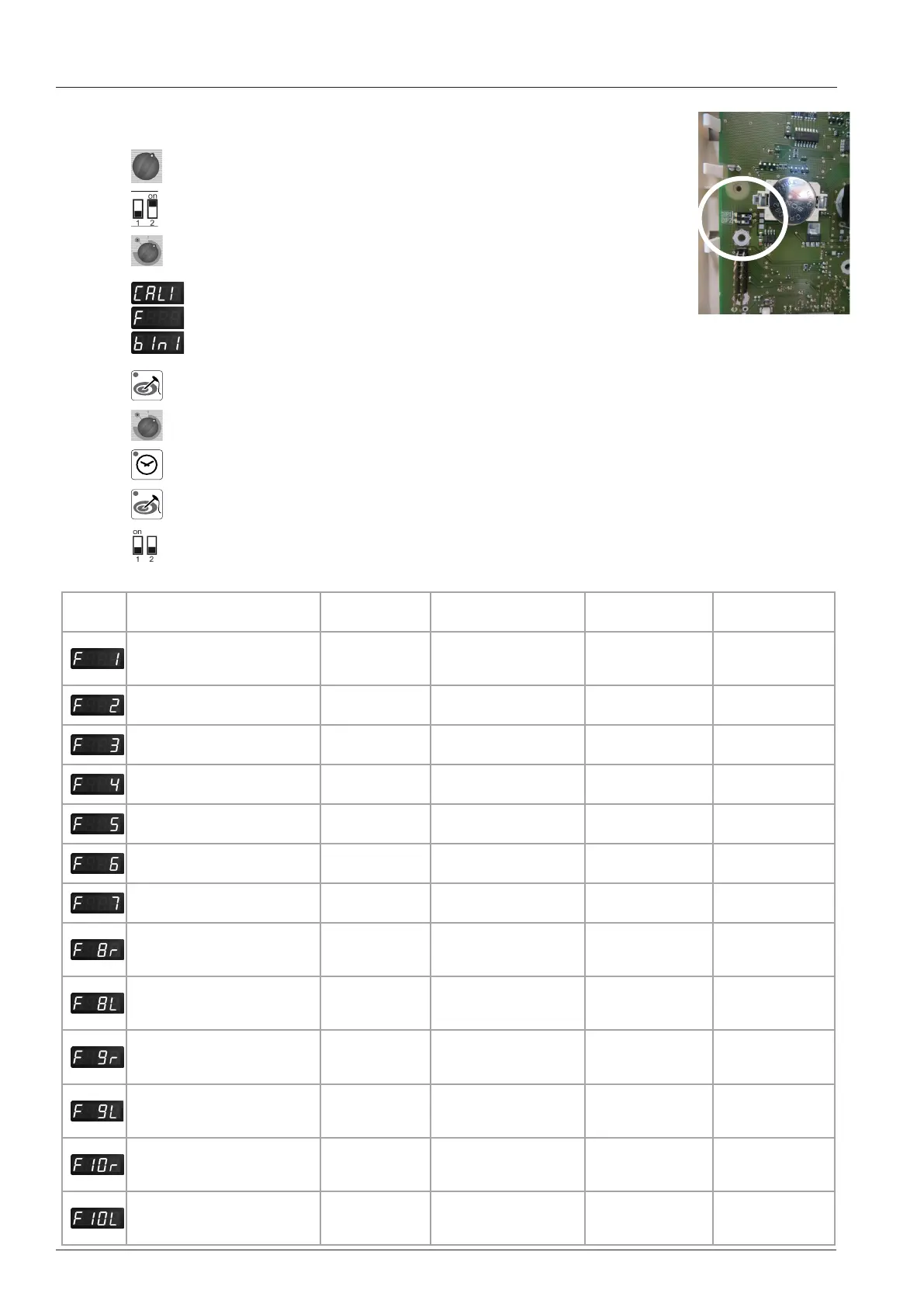

Function test
1
Switch unit ON
2 On operator PCB set DIP switch 2 to „ON“ position
3 Select function test with timer dial:
Activation of manual calibration
Function test
bini - ball valve initialization, to start press core probe key.
4 Activate function test by pressing core temperature key
5 Select desired step with timer dial.
6 Activate selected step with timer key.
7 Activate component with core temperature key.
8
To de-activate function test set DIP switch 2 to „OFF“ position.
Switch unit o and on again.
CM_P - Function test - F
Function Connection
PCB
Cabinet
display
Time
display
Comment
Steam 50%,
Electric unit
X24:(1-2)
actual temp.B5
steam generator
1 / 0
Gas:
no function
Steam 100%
Electric unit
X24:(1-2)+(5-
6)
actual temp.B5
steam generator
1 / 0
Gas:
no function
Hot air 50%
Electric unit
X24:(7-8)
actual temp.B1
cabinet
1 / 0
Gas:
no function
Hot air 100%
Electric unit
X24:(7-8)+(3-
4)
actual temp.B1
cabinet
1 / 0
Gas:
no function
Steam Gas unit BUS
actual temp.B5
B5 steam generator
1 / 0
Electric:
no function
Hot air Gas unit
table / oor top
BUS
actual temp.B1
cabinet
1 / 0
Electric:
no function
Hot air Gas
oor unit bottom
BUS
actual temp.B1
cabinet
1 / 0
Electric:
no function
Motor top MAX rpm
Table and oor models
BUS Set rpm Act. rpm clockwise
Motor top MAX rpm
Table and oor models
BUS Set rpm Act. rpm anti clockwise
Motor top MIN rpm
Table and oor models
BUS Set rpm Act. rpm clockwise
Motor top MIN rpm
Table and oor models
BUS Set rpm Act. rpm anti clockwise
Motor bottom MAX rpm
oor models only
BUS Set rpm Act. rpm
clockwise
201 / 202 only
Motor bottom MAX rpm
oor models only
BUS Set rpm Act. rpm
anti clockwise
201 / 202 only
