- 53 - V08 en, SCC
LED door light - SCC - Index I
A7: SCC 61-102
42.00.224
11.5V
A2: X13
H1
S3A2: X27
cable to door
<--- replaced by <--- replaced by

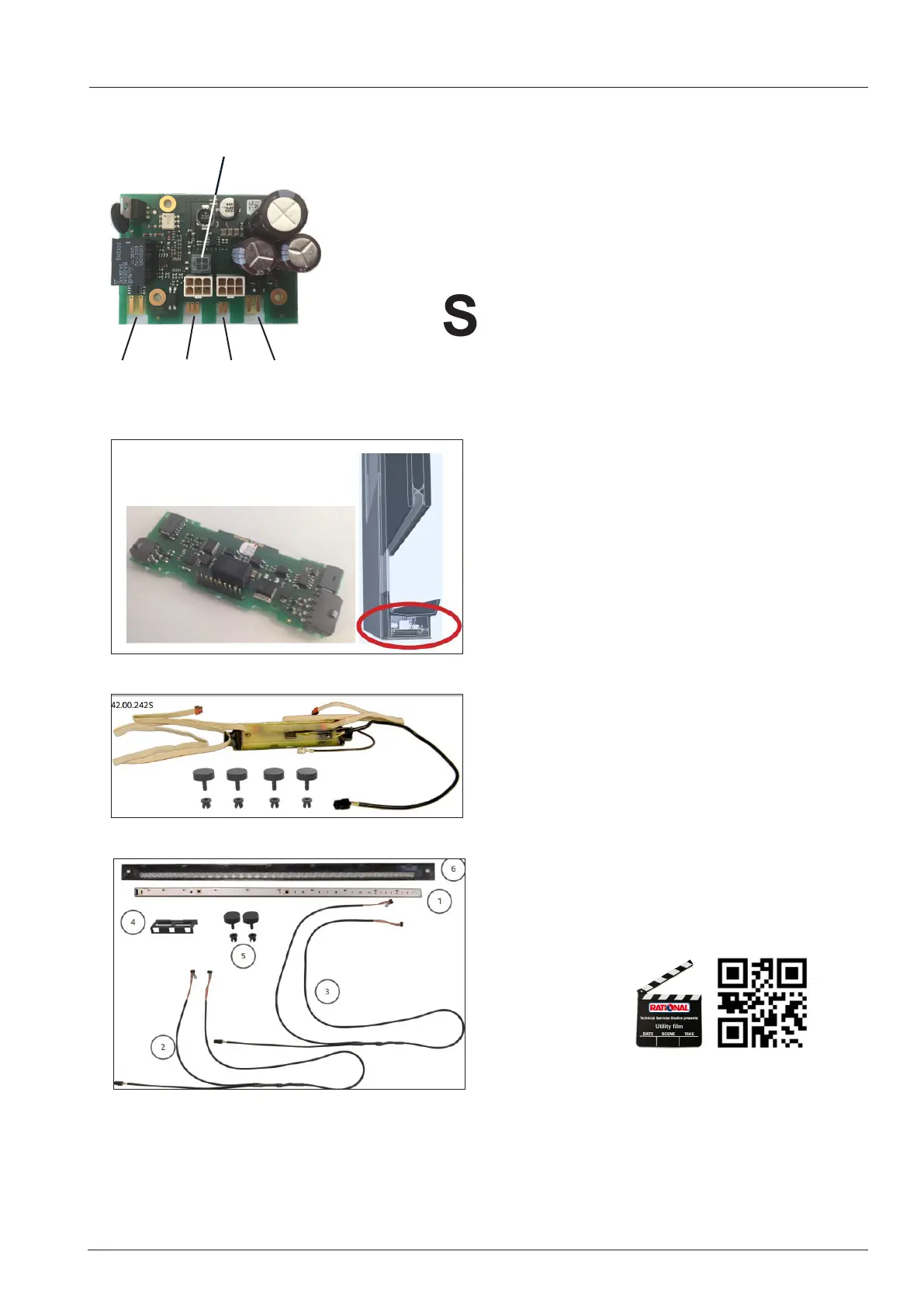

A7 board - SCC 61-102 since 08-2016
Note: a short circuit in the connection from the
pcb to the door / LED can cause a Service 34 er-
ror on units SCC 61-102.
Disconnect the cable from A7 to the door.
Error should change to Service 52.
PCB A8 (42.00.193) inside the door drip tray
used from 09-2016 to 05-2017
42.00.193 replaced since June 2017 by sealed
version:
PCB A8 (42.00.241S for SCC 61 /62)
PCB A8 (42.00.242S for SCC 101 /102)
Sealed version 42.00.241S / ...242S replaced by
integrated BUS LED since 12 / 2017:
Integrated BUS LED kit 61/62: 87.01.488
Integrated BUS LED kit 101/102: 87.01.489
http://bit.ly/LED_IB
