3.2.2

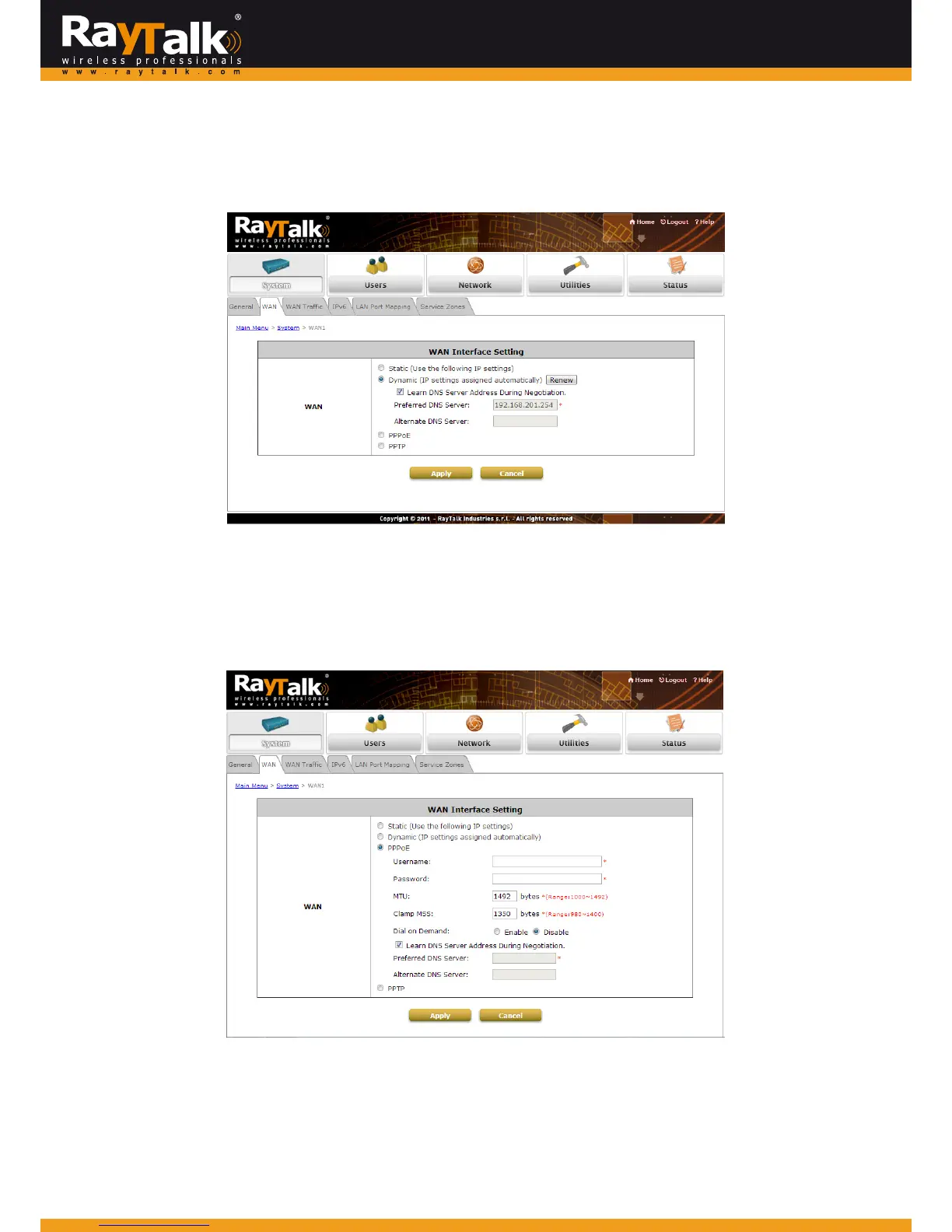

Dynamic

Dynamic:ItisonlyapplicableforthenetworkenvironmentwheretheDHCPserverisavailableupstreamofthesystem.Clickthe

RenewbuttontogetanIPaddressautomatically.



3.2.3

PPPoE



PPPoE: When selecting PPPoE to connect to the network, please set the "Username", "Password", "MTU" and "Clamp MSS".

There is a Dialon demand function under PPPoE. If this function is enabled, a Maximum Idle Time slot will be available for

inputtingavalue.Whentheidletimeisreached,thesystemwillautomaticallydisconnectitself.


