MonitorIPLink

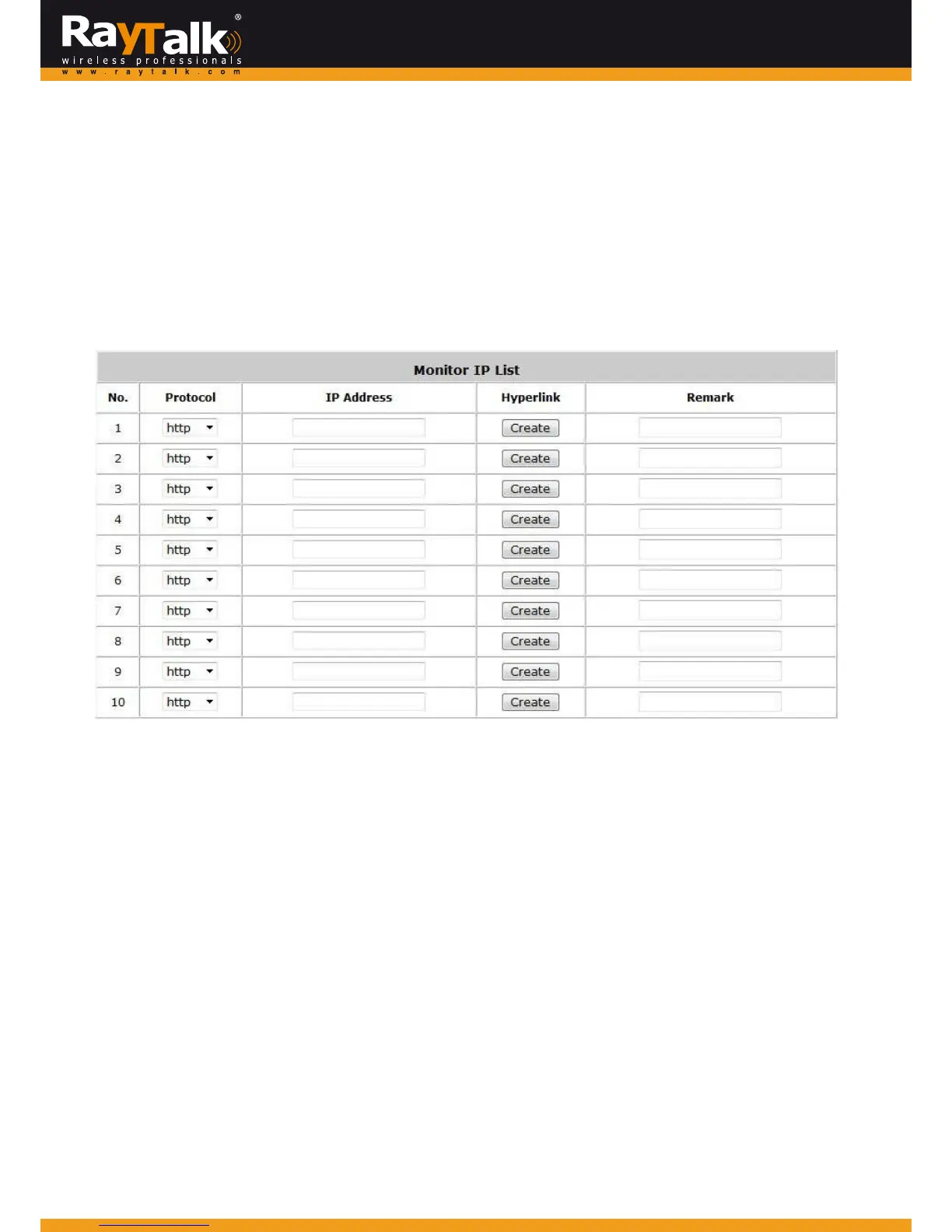

ToconfigureMonitorIPLink,goto:Network>>MonitorIP.



TheRAYTALKRA‐696willsendoutapacketperiodicallytomonitortheconnectionstatusoftheIPaddressesonthelist.

Oneachmonitoreditem withaWEBserverrunning,administratorsmayaddalinkforeasyaccessbyenteringtheIP, selecting

theProtocoltohttporhttpsandthenclickingCreate.

AfterclickingCreate,theIPaddresswillbecomeahyperlink,andadministratorscaneasilyaccessthehostremotelybyclicking

thehyp erlink.

ClicktheDeletebuttontoremovethehyperlinkifneeded.


