3 Web-based Management

Protocol Type: an existing protocol type such as Icmp, igmp, Udp, Tcp, Ospf, or an integer

between 1 and 255.

Src IP Address: source host IP address.

Src IP Mask: source host IP subnet mask.

Src L4 Port: TCP/UDP source port, an existing Echo, Frp, telnet, Smtp, WWW, or an integer

between 1 to 65535. It can be set only when protocol type is TCP or UDP.

Note: IETF IANA defines three groups of ports: Well Known Ports (0-1023), Registered Ports

(1024-49151), and Dynamic and/or Private Ports (49152-65535).

Dst IP Address: destination host IP address.

Dst IP Mask: destination host IP subnet mask

Dst L4 Port: TCP/UDP destination port, an existing Echo, Frp, telnet, Smtp, WWW, or an

integer 1-65535. It can be set only when protocol type is TCP or UDP.

Action: To permit or deny access of the package with matched rules.

3.6.12.4 L2 ACL

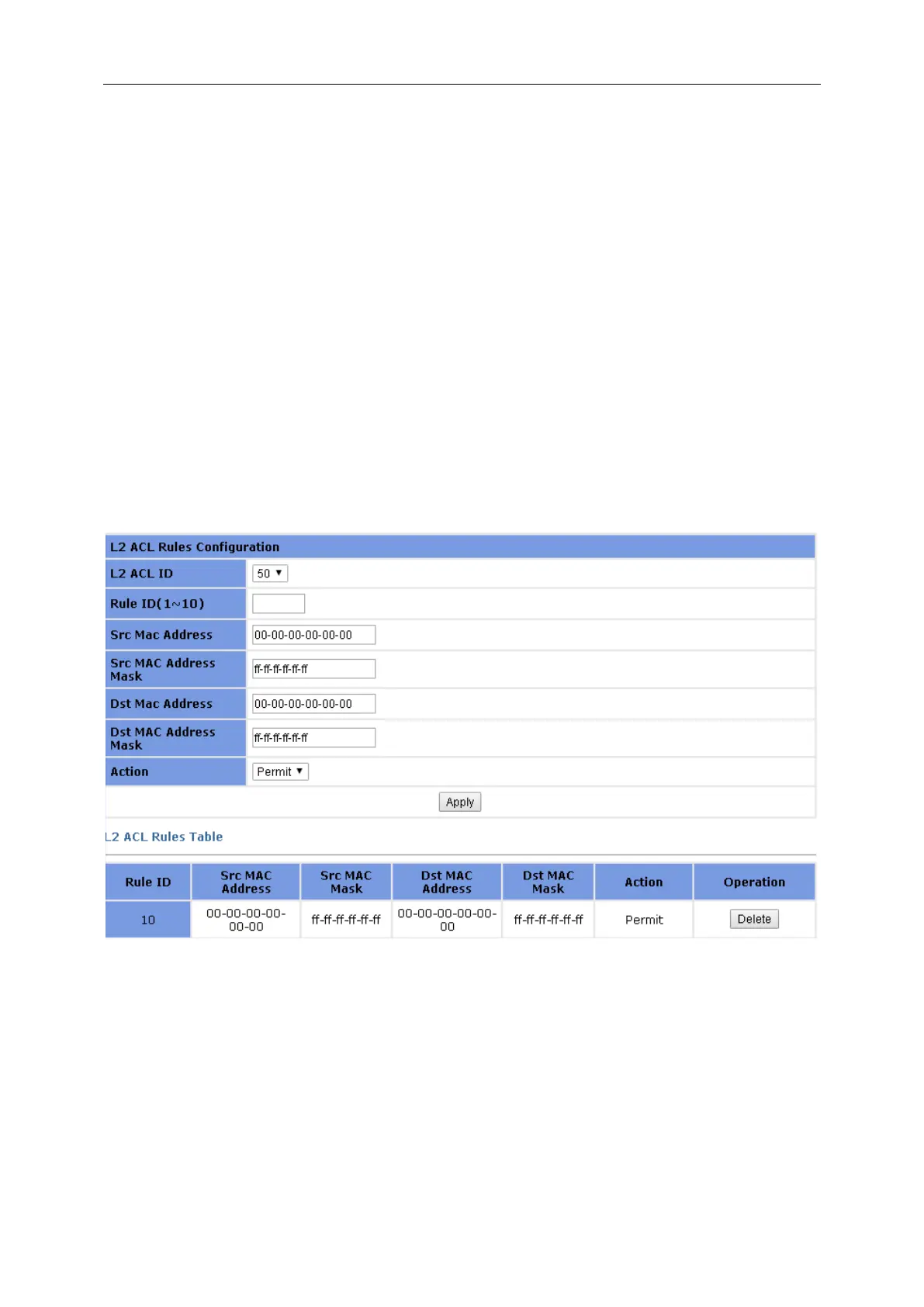

This page sets Src MAC Address, Src MAC Address Mask, Dst Mac Address, and Dst

MAC address Mask, and the Action that can be set as Permit or Deny.

Rule ID: Identification of the ACL rule.

Src MAC Address: Source host mac address.

Src MAC Address Mask: Source host mac address mask.

Dst MAC Address: Destination host mac address.

Dst MAC address Mask: Destination host mac address mask.

Action: To permit or deny the access of the package with matched rules.

3.6.12.5 Traffic ACL

The page configure traffic limit of ACL rules. It is for the ACL rules whose action is set to be

permit. “Action” must be set in ACL Rule page.
