Outer Tag VID: A VLAN ID for the outer tag that will be added to the packet.
Inner tag VID (Low)/ Inner tag VID (High): An outer tag is added to form a double tag
package, if the incoming package has a VLAN ID value between Inner tag VID (Low) and
Inner tag VID(High) (all inclusive).
Outer Tag Priority: the outer tag VLAN priority, in the range of 0 to 7.
Port: the double tag port from which a package is received.
3.3.5 VLAN Mapping
VLAN Mapping also called VLAN translation, its main function is to replace the private
network VLAN Tag users in the network of VLAN Tag, which was in accordance with the
public network transmission network planning.

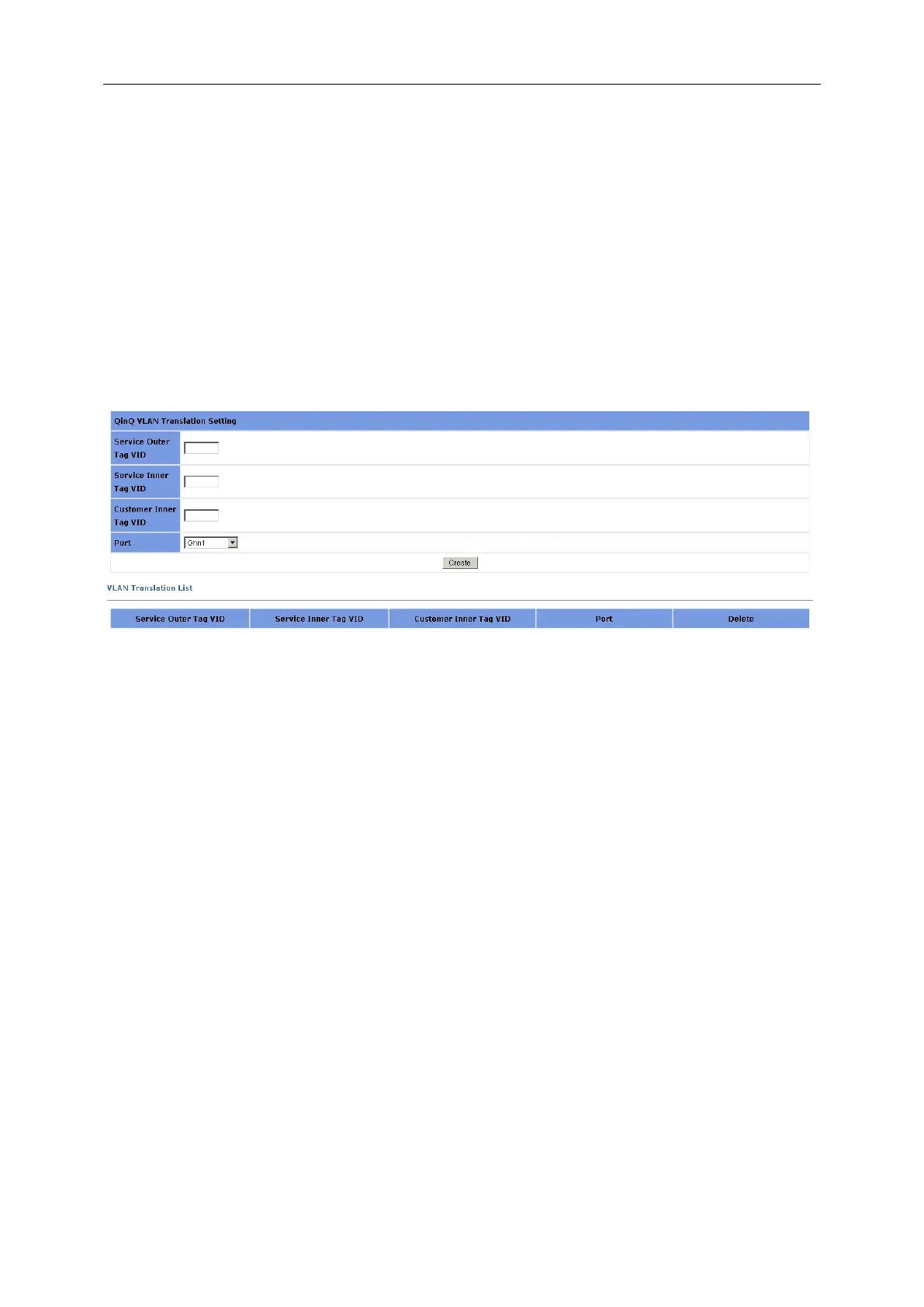

Service Outer Tag VID: Outer vid
Service Innerr Tag VID: Inner vid
Customer Inner TagVID: customer vid
Port: output port
3.3.6 VLAN Interface
When a device needs to communicate with devices at the network layer, On this page you
can create a logical interface based on a VLAN on the device A VLAN
interface is a network layer interface and can be configured with an IPv4/IPv6 address. The
device
then users the VLAN interface to communicate with devices at the network layer.
