3 Web-based Management
EthernetII: the Ethernet frame of type 0x88cc.
SNAP: the Ethernet frame of type 0xAAAA-0300-0000-88CC.

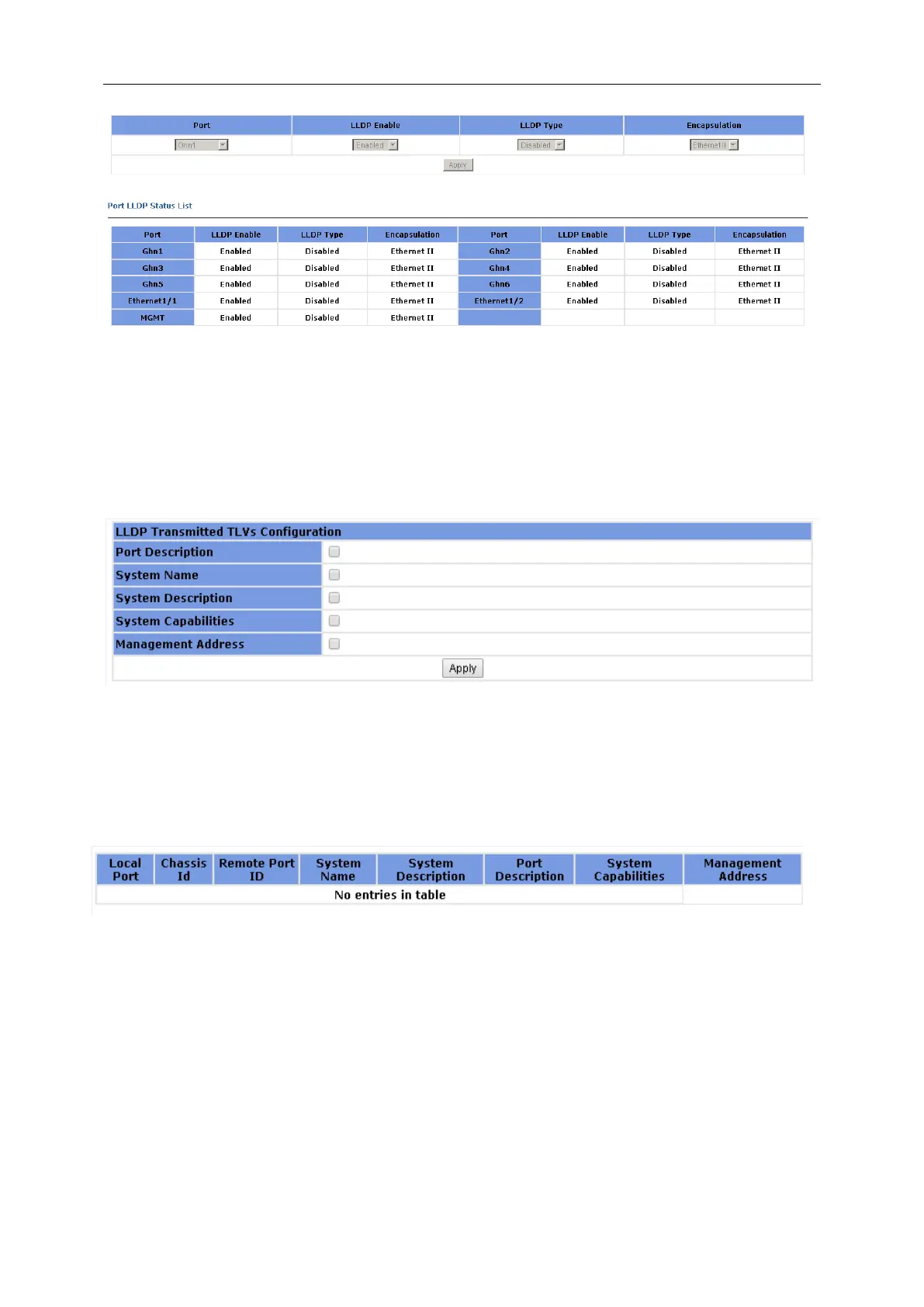

3.11.1.3 TLVs
This page sets the type of transmitting information: Port Description, System Name,
System Description, System Capability, and Management Address.
3.11.2 Neighbor
This page shows the Local Port, Chassis Id of a local device, and the Remote Port ID,
System name, Port description, System Capabilities, and Management Address of a
neighbor device.
3.11.3 Statistics
This page shows the statistics of Tx Frames, Rx Frames, Rx Error Frames, Discarded
Frames, TLVs discarded, TLVs unrecongnized, Org.TLVs discarded, and Aged out
packet counts of LLDP packets on each Ethernet port.
