Design and function
Function
12

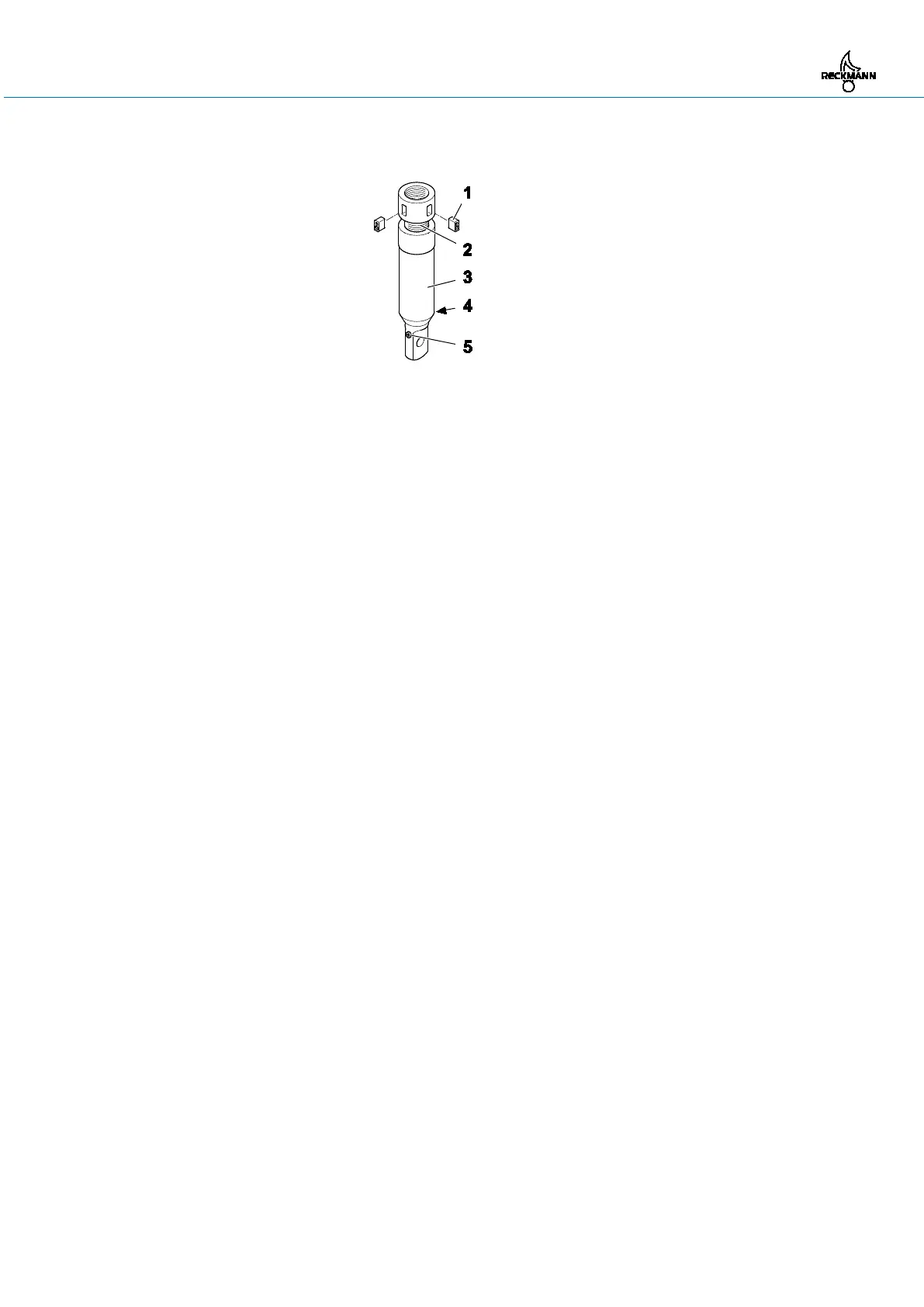

4.2.3 Adjuster (RF90-4, RF90-5)
1 Key (RF90-5: 2 keys)
2 Adjuster axle
3 Adjuster tube
4 Locking screw
5 Plug screw
Pos: 15.1 /ZINDEL/ Rollreffanlagen/Auf bau und Funktion/Funktio n-Rollreff @ 1\mod_14 00763386014_13349.doc x @ 13946 @ 2 @ 1
4.3 Function
The furling system reefs the fore sail by winding it around a foil that rotates around the forestay. A
groove in the foil holds the sail luff.
Pos: 15.2 /ZINDEL/ Rollreffanlagen/Auf bau und Funktion/Funktio n-Hydraulik @ 1\mod_140 0822275032_13349. docx @ 13954 @ @ 1
The furling system is driven by a hydraulic motor.
It must be connected to an on-board hydraulic system.
Pos: 15.3 /ZINDEL/ Rollreffanlagen/Auf bau und Funktion/Funktio n-Handkurbel @ 1\mod_1415 976900103_13349.doc x @ 14025 @ @ 1
If a malfunction occurs the furling system can be operated using a winch handle.
The gear is self-locking. No forces are transmitted from the sail to the winch handle. There can
hence be no winch handle backlash.
Pos: 15.4 /ZINDEL/ Rollreffanlagen/Auf bau und Funktion/Funktio n-Verstel l-allg @ 1\mod_140082227 9280_13349.docx @ 1395 5 @ @ 1
The adjuster can be used to adjust the forestay length at the mooring. For furling systems RF90-4
and RF90-5 the mechanical adjuster is supported hydraulically.
