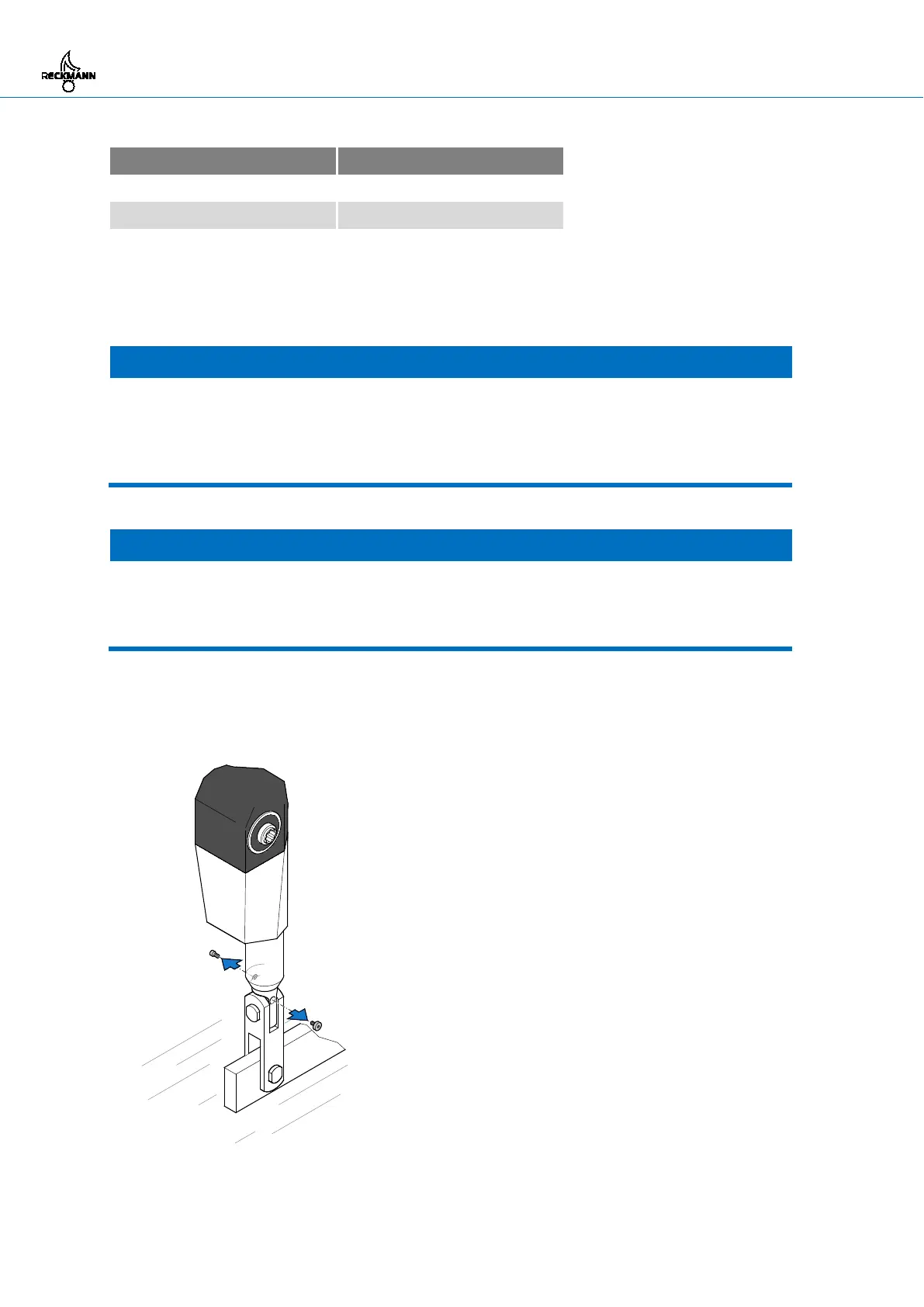

Adjusting the forestay length (RF90-4, RF90-5)
49
X: Maximum stroke
RF90-2 50 mm
RF90-3 60 mm
Pos: 69 /ZINDEL/Rollref fanlagen/Bedien ung/RF90-4, RF90-5/Spannu ng des Vorstags einstel len (RF90-4, RF90-5) @ 1\mod_140 1709511748_13349.d ocx @ 13987 @ 2333 @ 1
6.5 Adjusting the forestay length (RF90-4, RF90-5)
Notice
Excessively high operating pressure
Exceeding the maximum allowable operating pressure can result in damage to the
adjuster.
−
Pressurise the hydraulic coupling on the adjuster to max. 140 bar.
Notice
Risk of contamination of the environment by leaking hydraulic oil
Hydraulic oil can leak into the environment when the plug screw is taken off the adjuster.
−
Collect leaking hydraulic oil and dispose of it in accordance with requirements.
6.5.1 Preparation
1. Completely unscrew the locking screw.
2. Take the plug screw out of the hydraulic socket.
