Assembly
Completing the forestay (R20 – R40)
23
5.1.4.3 Installing the top terminal on the wire forestay
Risk of breaking the forestay
−
The top terminal must be fitted by qualified personnel using suitable tools.
Once the terminal has been installed on the wire forestay, bushings or spacer hoses can
no longer be fitted.
Only install the terminal after ensuring that all bushings and spacer hoses have been
properly installed.
− Roller-swage the terminal on to the wire forestay
or:
− Install a swageless stud terminal according to the supplied assembly instructions.
Pos: 30 /ZINDEL/Rollref fanlagen/Montage/ Alu/R10 - R40/Prof ile montieren @ 1\mod_13998 72223388_13349.doc x @ 13914 @ 3 @ 1

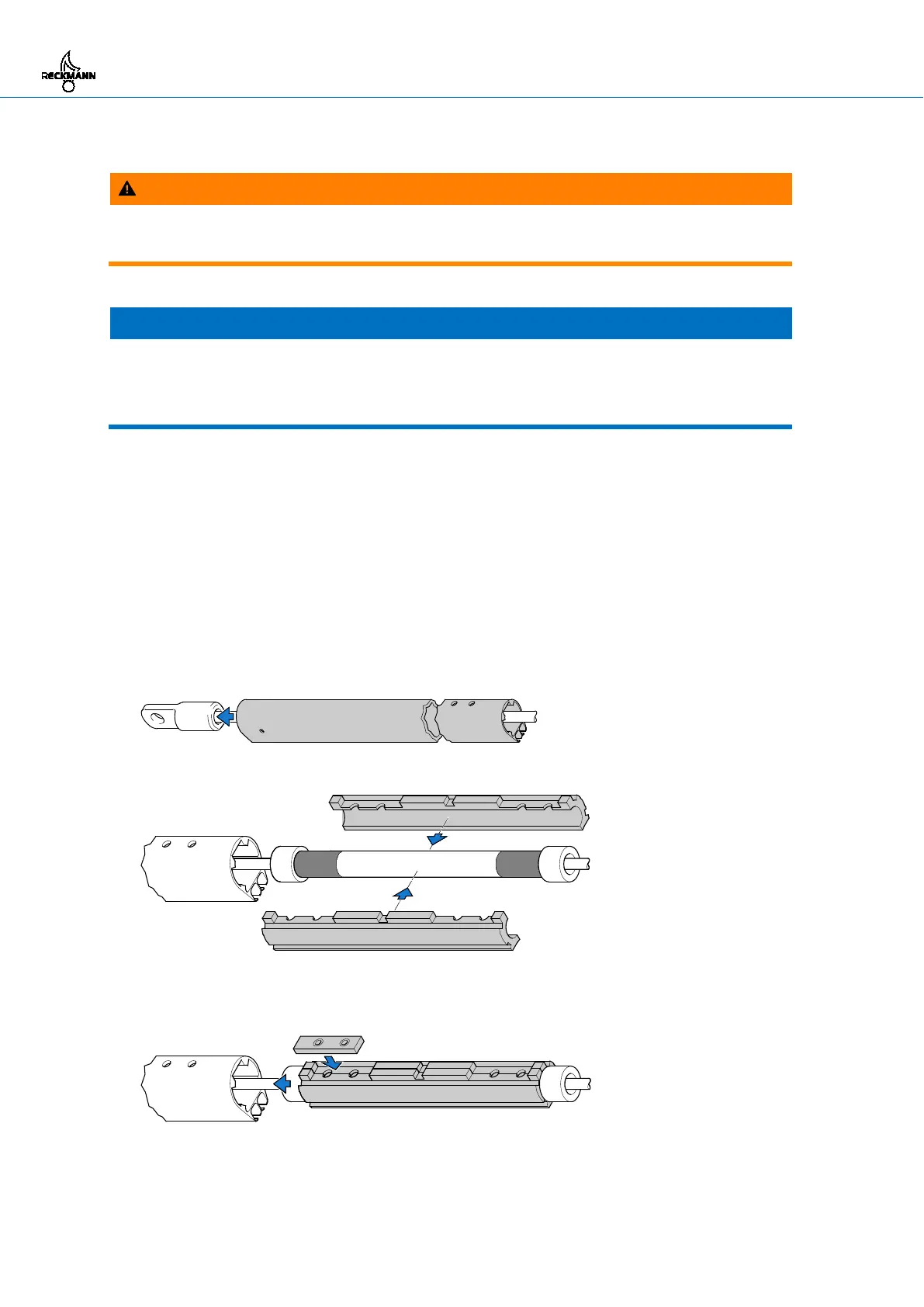

5.1.5 Fitting the furling sections
Start fitting the furling sections with the top furling section. The top furling section is the furling
section with the holes drilled into it for the top cap.
1. Slide the top furling section from below up to the terminal on the forestay. The end with the drill
holes for the top cap must be pointing towards the terminal.
2. Lay the two halves of a furling section connector around the spacer hose marked red.
3. Place the threaded plate in the recess in the furling section connector.
4. Slide the furling section connector with threaded plate halfway into the furling section.
