Assembly
Completing the forestay (R5 – R7)
33

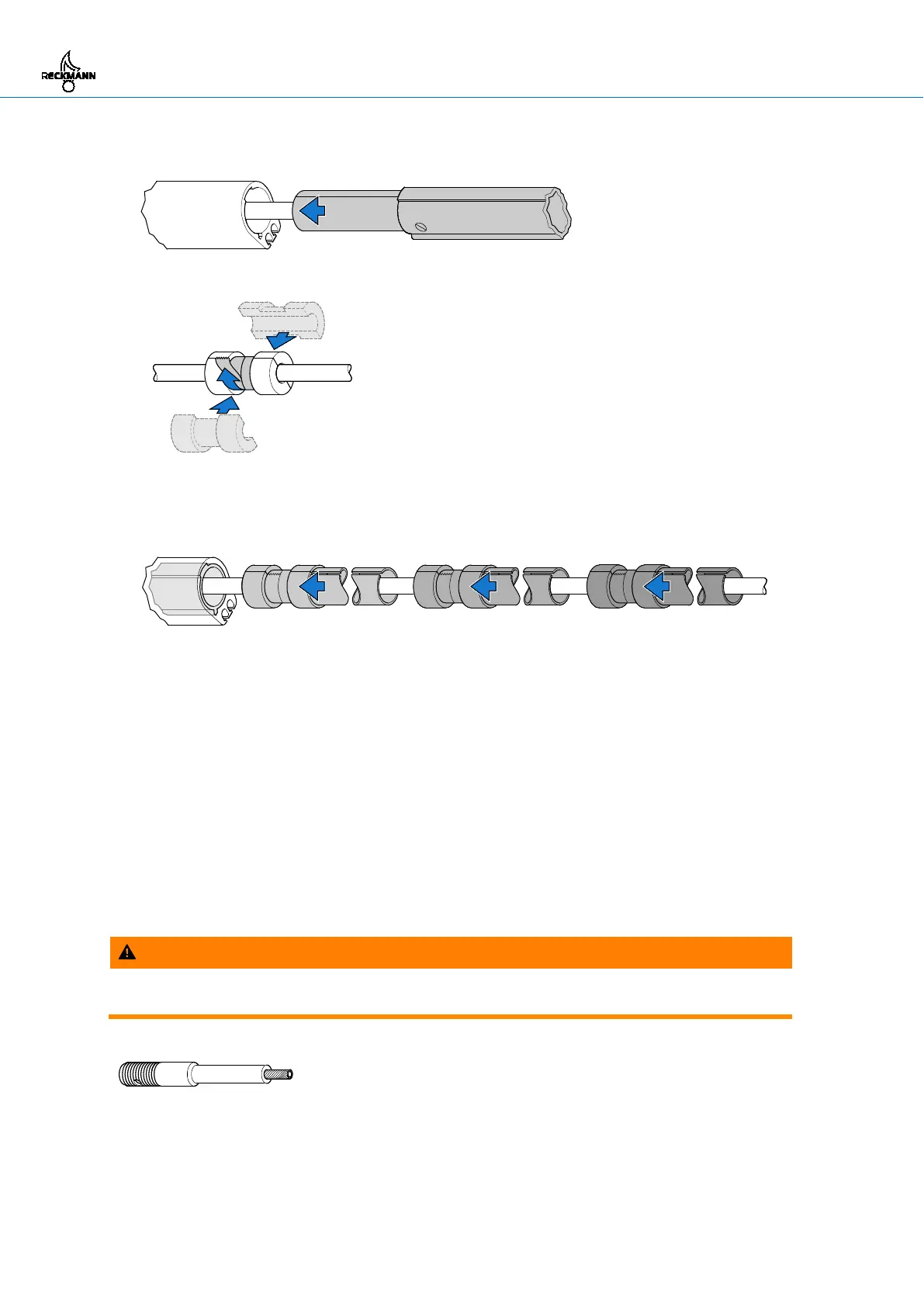

10. Slide the foil reinforcement into the feeder section.
11. Place a small split reinforcing bushing on the forestay and secure it with tape.
12. Mount a short spacer tube on the forestay and slide it along with the reinforcing bushing into the
foil reinforcement.
13. Repeat steps 11 and 12 twice.
Pos: 38 /ZINDEL/Rollref fanlagen/Montage/ Alu/R50, R5 - R8/rod/ Rodkopf pressen (R50, R5- R8) @ 1\ mod_1411983409874_133 49.docx @ 14004 @ 3 @ 1
5.2.9 Cold-heading the rod end
Only cold-head the lower rod end after ensuring that the furling sections have been properly
installed. Once the rod end has been cold-headed, it is possible that spacer tubes may no longer
be able to be fitted.
Cold-head the rod end according to the rod manufacturer's instructions.
Pos: 39 /ZINDEL/Rollref fanlagen/Montage/ wire/Walztermin al @ 1\mod_1425396390203_13 349.docx @ 14033 @ 3 @ 1
5.2.10 Roller-swaging the lower terminal on to the wire forestay
Risk of breaking the forestay
The terminal must be fitted by qualified personnel using suitable tools.
Roller-swage the supplied lower terminal on to the wire forestay.
Pos: 40 /ZINDEL/Rollref fanlagen/Montage/ Alu/Fallensch litten und Segeleinführ er montieren (R10 - R50, R5) @ 1\mod_1399976311803_1 3349.docx @ 13922 @ 2 @ 1
