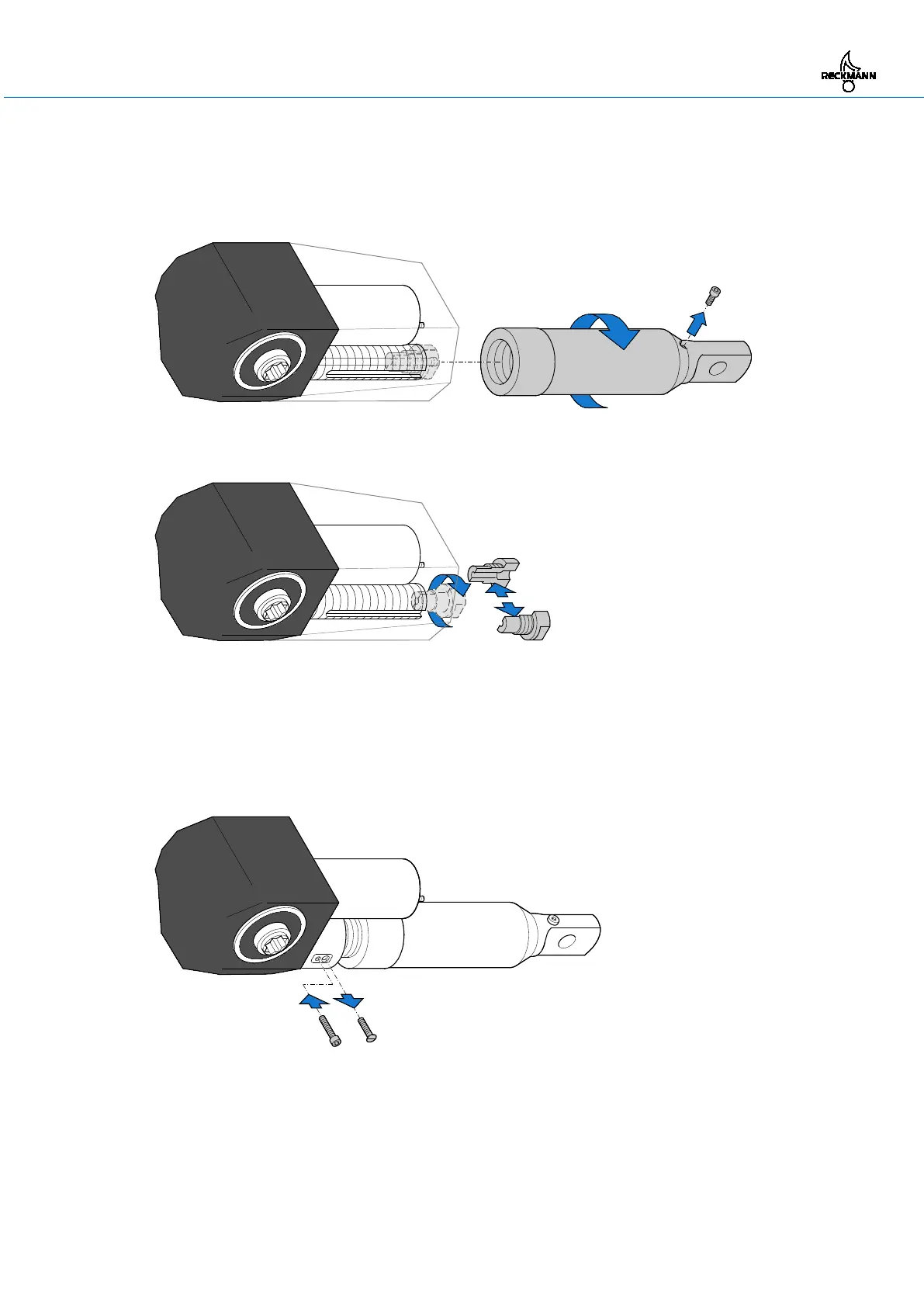

5.5.3 Dismantling the adjuster (RF90-2, RF90-3)
1. Unscrew the locking screw.
2. Unscrew the adjuster tube from the adjuster axle.
3. Only for a rod forestay: unscrew the rod collet from the adjuster axle. (Not applicable to wire
forestays)
Pos: 46 /ZINDEL/Rollref fanlagen/Montage/ RF90-4, RF90-5/Vers telleinheit demonti eren (RF90-4, RF 90-5) @ 1\mod_14 01090517041_13349. docx @ 13969 @ 3 @ 1
5.5.4 Dismantling the adjuster (RF90-4, RF90-5)
1. Unscrew the key-retaining screw.
2. Screw an M6 ✕ 40 screw into the second hole in the key and force the key out with it. Then
remove the screw.
