5.6 Installing the system
Warning
Risk of crushing and shearing
−
Never stick your finger into a threaded hole when mounting the furling system.
Pos: 56 /ZINDEL/Rollref fanlagen/Montage/ Toggle Masttop @ 1\mod_140 0825458562_13349. docx @ 13960 @ 3 @ 1
5.6.1 Toggle on the masthead
Warning
Risk of forestay breakage
The forestay is subjected to high bending moments when there is no mast toggle
mounted. If the forestay breaks, severe injuries may be incurred.
−
Connect the forestay to the mast with a toggle.
Pos: 57 /ZINDEL/Rollref fanlagen/Montage/ Fallenführung @ 1\ mod_1400823922169_1334 9.docx @ 13957 @ 3 @ 1

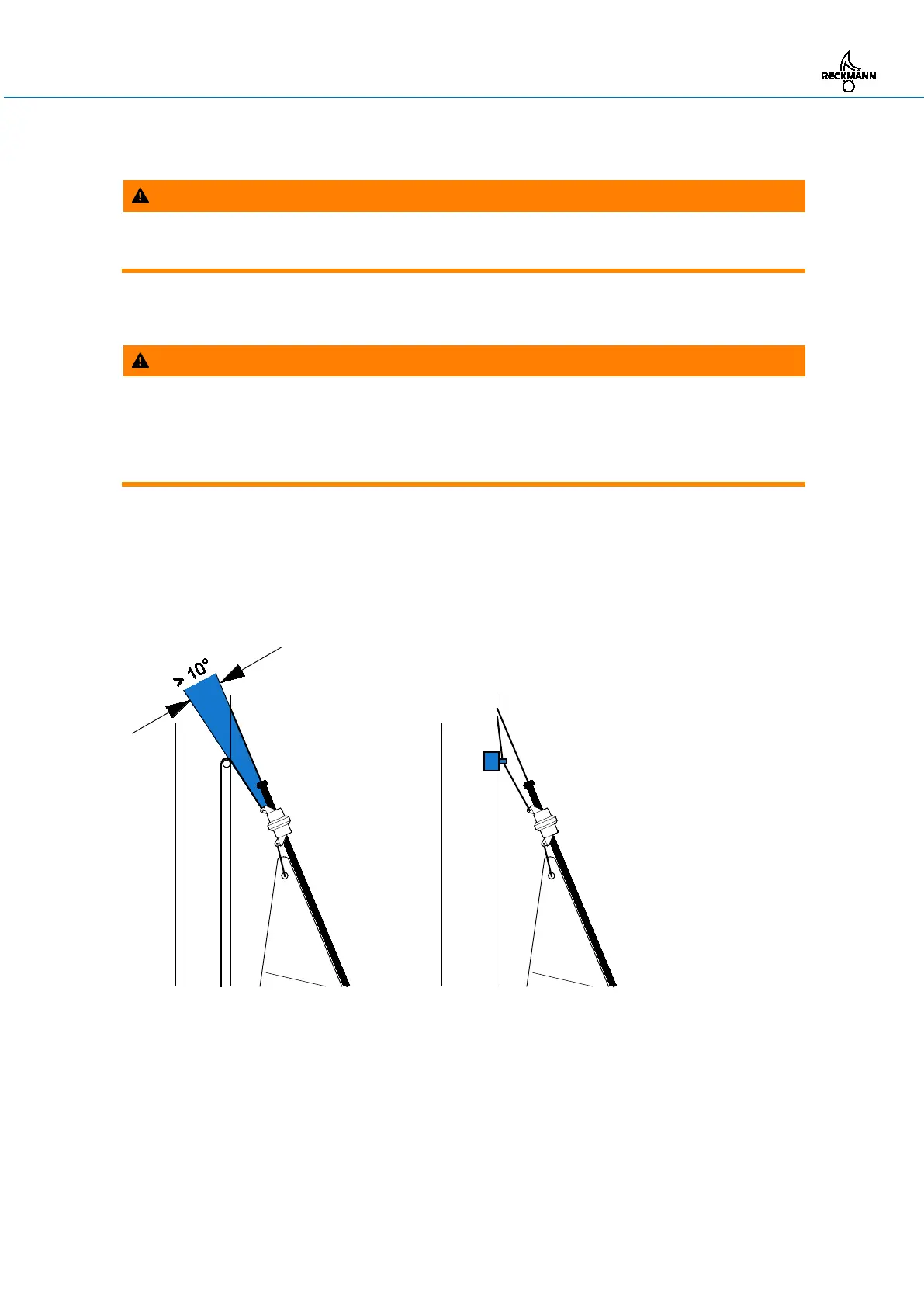

5.6.2 Minimum angle between forestay and halyard of 10°
When the sail is hoisted the halyard must run at an angle of at least 10° from the halyard swivel to
the forestay. Otherwise the halyard can wrap around the foil and cause the furling system to jam.
Install a halyard lead on the mast if the angle is less than 10°.
