Assembly
Hydraulic connection
44
5.7.2 Connecting the hydraulic hoses
Danger due to improperly installed hydraulic hoses
Hydraulic hoses can become damaged if the following instructions are not followed.
Do not twist the hydraulic hoses when connecting them.
Ensure that the hydraulic hoses are not chafing on board.
Ensure that the bending radii are not lower than the minimum bending radii given in the
following table.
Minimum bending radii for hydraulic hoses
Hose size r min (mm)
540 N-5 114
540 N-6 127
540 N-8 178
Pos: 61 /ZINDEL/Rollref fanlagen/Montage/ RF90-2, RF90-3/Hydr aulikschläuche anschli eßen (RF90-2, RF90-3) @ 1\mod_1401717366081_13349. docx @ 13990 @ 4 @ 1

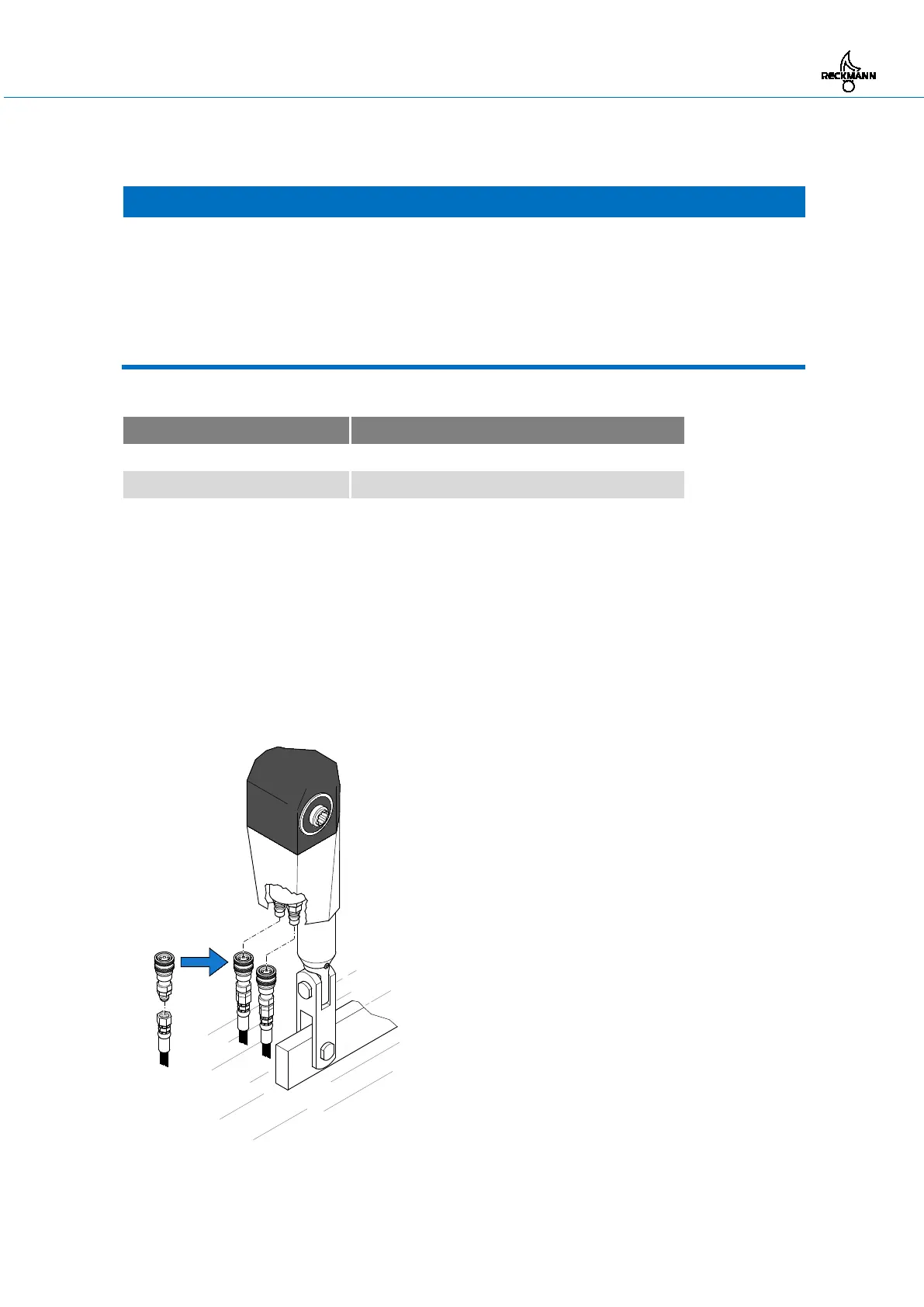

5.7.2.1 Connecting the hydraulic hoses (RF90-2, RF90-3)
• The hydraulic motor is equipped with connections for quick couplers.
• Quick coupler sockets for the hoses are attached to the adjuster in the as-delivered condition.
Procedure
1. Screw the quick coupler sockets to the hydraulic hoses.
2. Plug the hoses with the quick coupler sockets into the connections on the hydraulic motor.
Pos: 62 /ZINDEL/Rollref fanlagen/Montage/ RF90-4, RF90-5/Hydr aulikschläuche ansc hließen (RF90-4, RF90-5) @ 1\mod_1401774422929_1334 9.docx @ 13991 @ 4 @ 1
