Disassembly

Detaching the foil from the drive unit

9.3 Detaching the foil from the drive unit

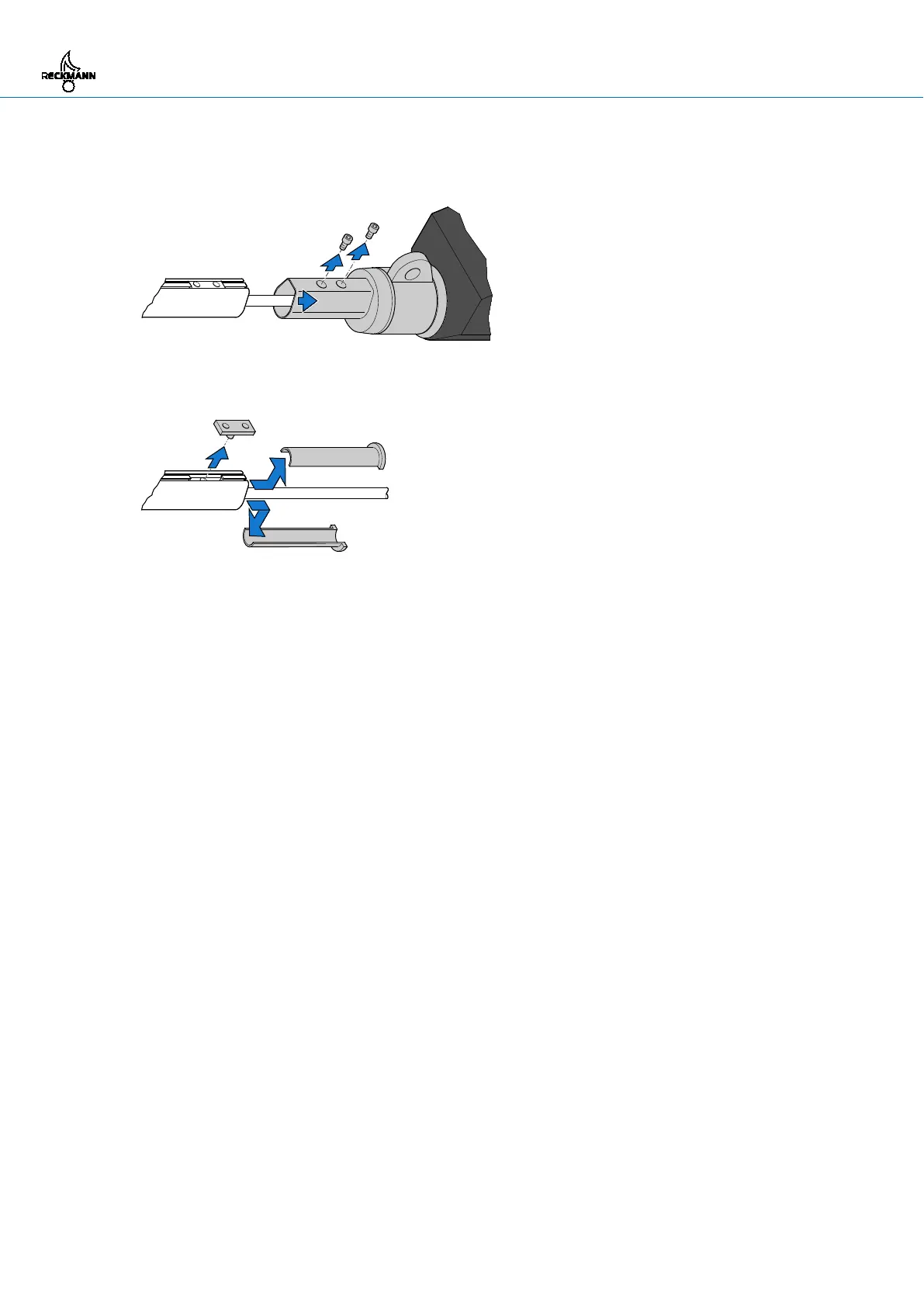

1. Unscrew the cap screws from the furler drive adapter. The drive unit can now be detached.

2. Take the threaded plate out of the recess in the feeder section.

3. Take the split bottom bushing out of the feeder section.
