Assembly
Completing the forestay (R5 ā R7)
32

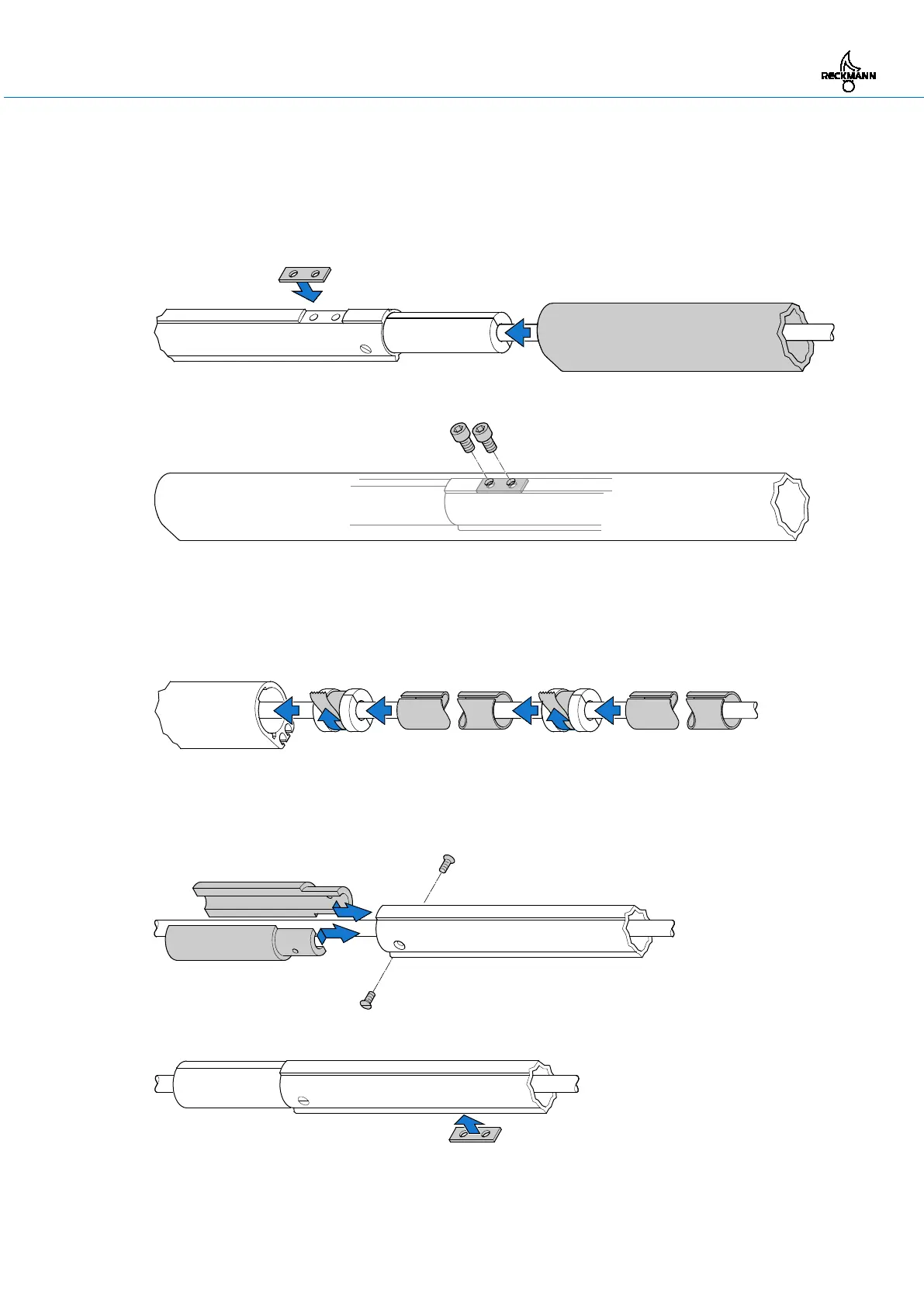

5.2.8 Fitting the feeder section
1. Slide the feeder section on to the forestay.
2. Place the threaded plate in the recess in the furling section connector and slide the feeder
section over it.
3. Screw the furling section connector to the furling section using two screws.
4. Mount a split standard bushing on the forestay and secure it with tape.
5. Slide a 1660-mm-long spacer tube on to the forestay and slide it along with the standard
bushing into the standard furling section.
6. Repeat the last two steps.
7. Slide the foil reinforcement on to the forestay.
8. Insert the split connector bushing into the upper end of the foil reinforcement and screw in
tightly.
9. Place the threaded plate in the recess in the foil reinforcement (not for R5):
