Assembly
Completing the forestay (R20 – R40)
13
5 Assembly
Pos: 17 /ZINDEL/Rollref fanlagen/Montage/ Alu/R10 - R40/headli ne_Vorstag komplet tieren (R10 - R40) @ 1\mod_140058582 8847_13349.doc x @ 13936 @ 2 @ 1
5.1 Completing the forestay (R20 – R40)
Pos: 18 /ZINDEL/Rollref fanlagen/Montage/ Alu/R10 - R40/Prof illänge anpassen - Einf ührung @ 1\mod_140170646672 5_13349.docx @ 13986 @ 3 @ 1
5.1.1 Adjusting the foil length
If a top furling section and a top spacer are not given in the list at the beginning of this manual, a
furling section and a corresponding spacer hose must be shortened by the offcut measurement 'C'.
For the offcut measurement 'C' please see the calculations on the flap.
Pos: 19 /ZINDEL/Rollref fanlagen/Montage/ Alu/R10 - R40/Prof il kürzen (R10 - R40) @ 1\mod_1400 586602689_13349.doc x @ 13937 @ 4 @ 1
5.1.1.1 Shortening the top furling section
Notice
Risk of material damage through shortening of an improper furling section
Shortening of an improper furling section can make the furling section unsuitable for later
assembly.
−
Only shorten standard furling sections of length 3000 mm.
−
Do not shorten the feeder section or a short furling section.

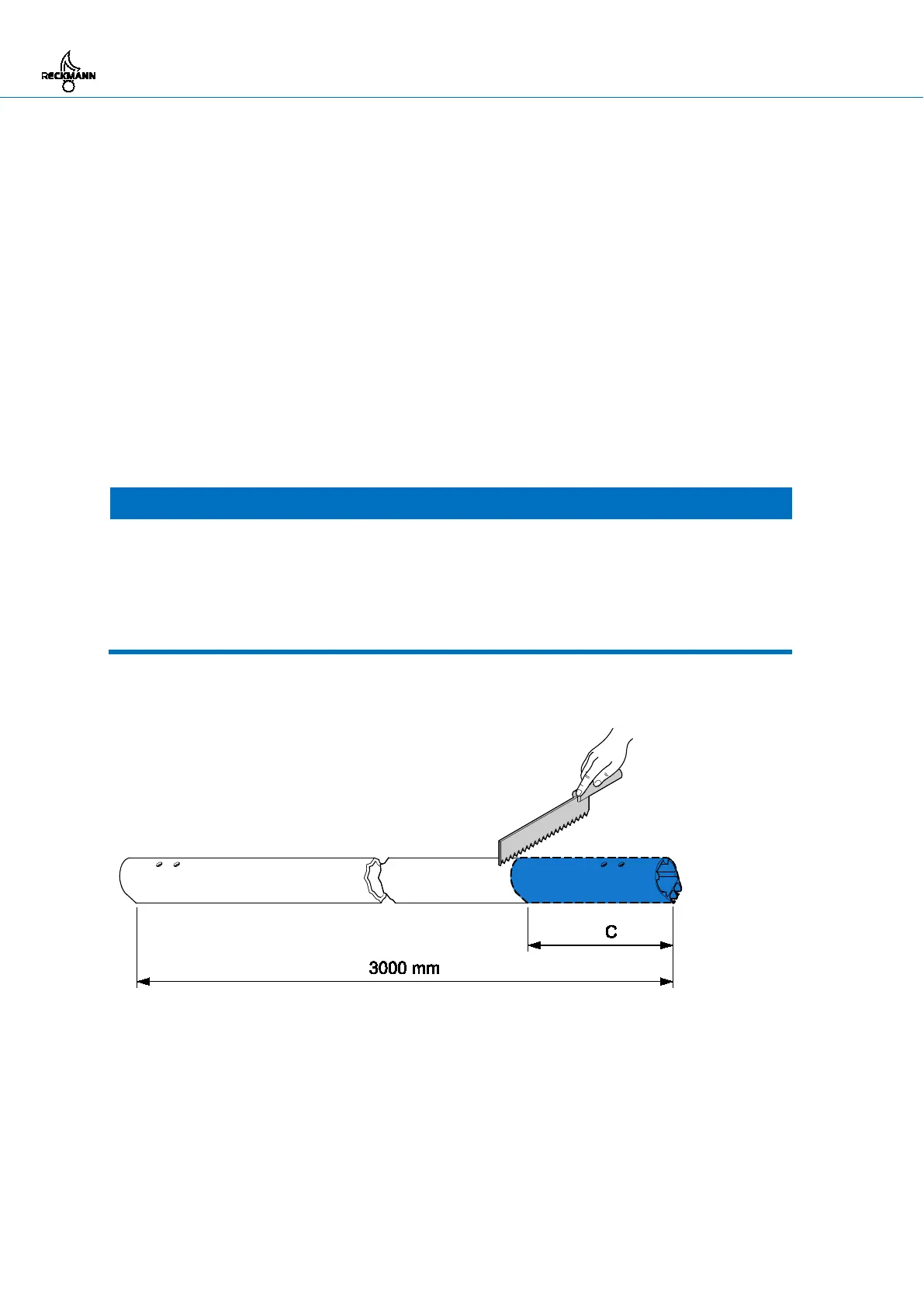

Shorten one of the 3000-mm-long standard furling sections by the calculated offcut measurement
'C' using a handsaw.
The shortened furling section will become the top furling section during assembly.
