Assembly
Completing the forestay (R5 – R7)
25
5.1.6 Fitting the foil reinforcement (optional)
• All furling sections except for the feeder section must be fitted.
• Only the following elements may be fitted on the forestay below the last furling section
connector: standard bushing – 600-mm hose – standard bushing – 600-mm hose – standard
bushing.

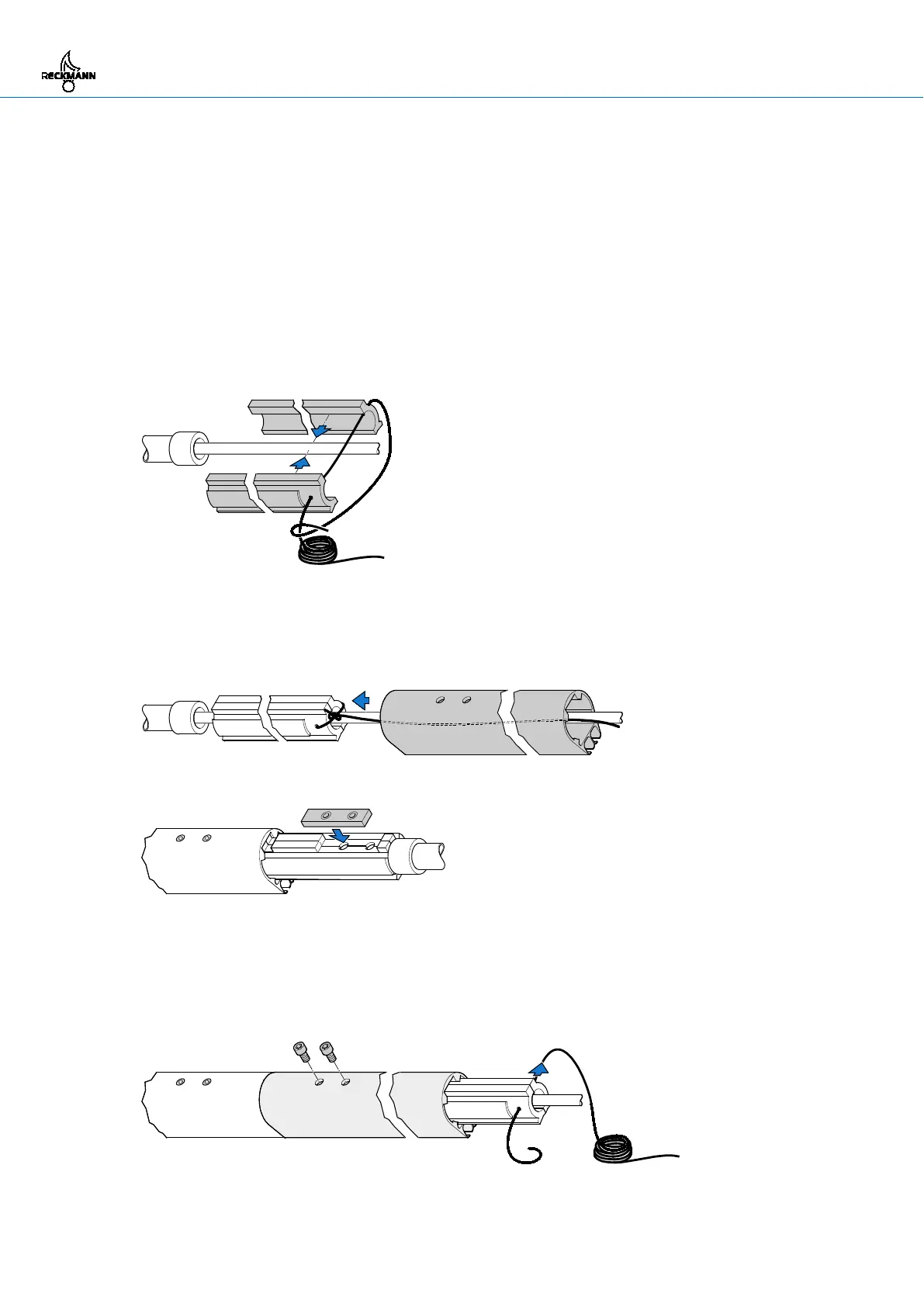

1. Place foil reinforcement elements on the forestay in places where there are no bushings or
spacer hoses. The ends with the drill holes must point to the lower end of the forestay.
2. Thread one end of the supplied rope through the holes in the foil reinforcement and tie a knot in
it.
3. Insert the other end of the rope through the feeder section.
4. Slide the feeder section over the foil reinforcement. Pull the foil reinforcement through the
feeder section with the rope until the foil reinforcement reaches the lower edge of the feeder
section. Slide the feeder section to the end of the furling section connector.
5. Place the threaded plate in the recess in the furling section connector.
6. Slide the feeder section on to the furling section connector. Continue keeping the foil
reinforcement at the lower end of the forestay with the rope.
7. Secure the feeder section with two self-locking screws. When all four screw threads are
engaged in the tapped holes in the threaded plate, tighten the screws.
8. Take the rope out of the foil reinforcement.
