Assembly
Completing the forestay (R20 – R40)
24

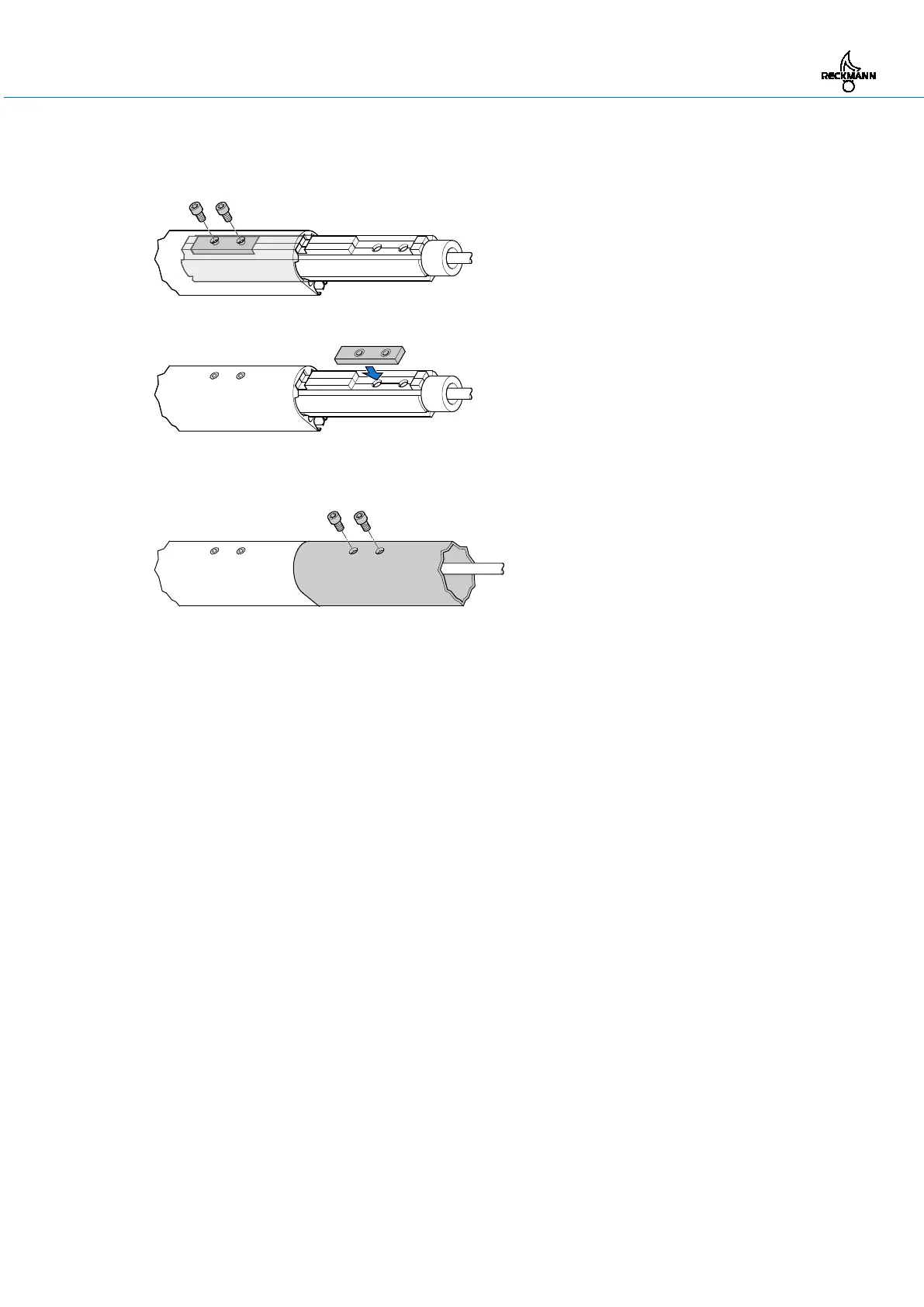

5. Secure the furling section with two self-locking screws. Do not tighten the screws completely
yet.
6. Place the threaded plate in the second recess in the furling section connector.
7. Slide a standard furling section on to the furling section connector.
8. Secure the standard furling section with two self-locking screws.
9. When all four screw threads are engaged in the tapped holes in the threaded plate, tighten the
screws.
10. Repeat steps 2 to 9 with other furling sections in the following order:
• 3000-mm-long standard furling sections
• 1500-mm-long standard furling section (if present).
11.a If no foil reinforcement is to be fitted: repeat steps 2 to 9 with the feeder section.
11.b If a foil reinforcement is to be fitted: repeat steps 2 to 5. Do not fit the feeder section yet.
