RECKMANN RF90 - Sliding on the Top Furling Section

Assembly
Completing the forestay (R5 – R7)
29
6. Cut holes in the furling section for countersunk screws.
Pos: 37.1 /ZINDEL/ Rollreffanlagen/Mont age/Alu/R50, R5 - R8/Pr ofile montieren - Topprof il @ 1\mod_1399892604550 _13349.docx @ 13916 @ 3 @ 1
5.2.5 Sliding on the top furling section

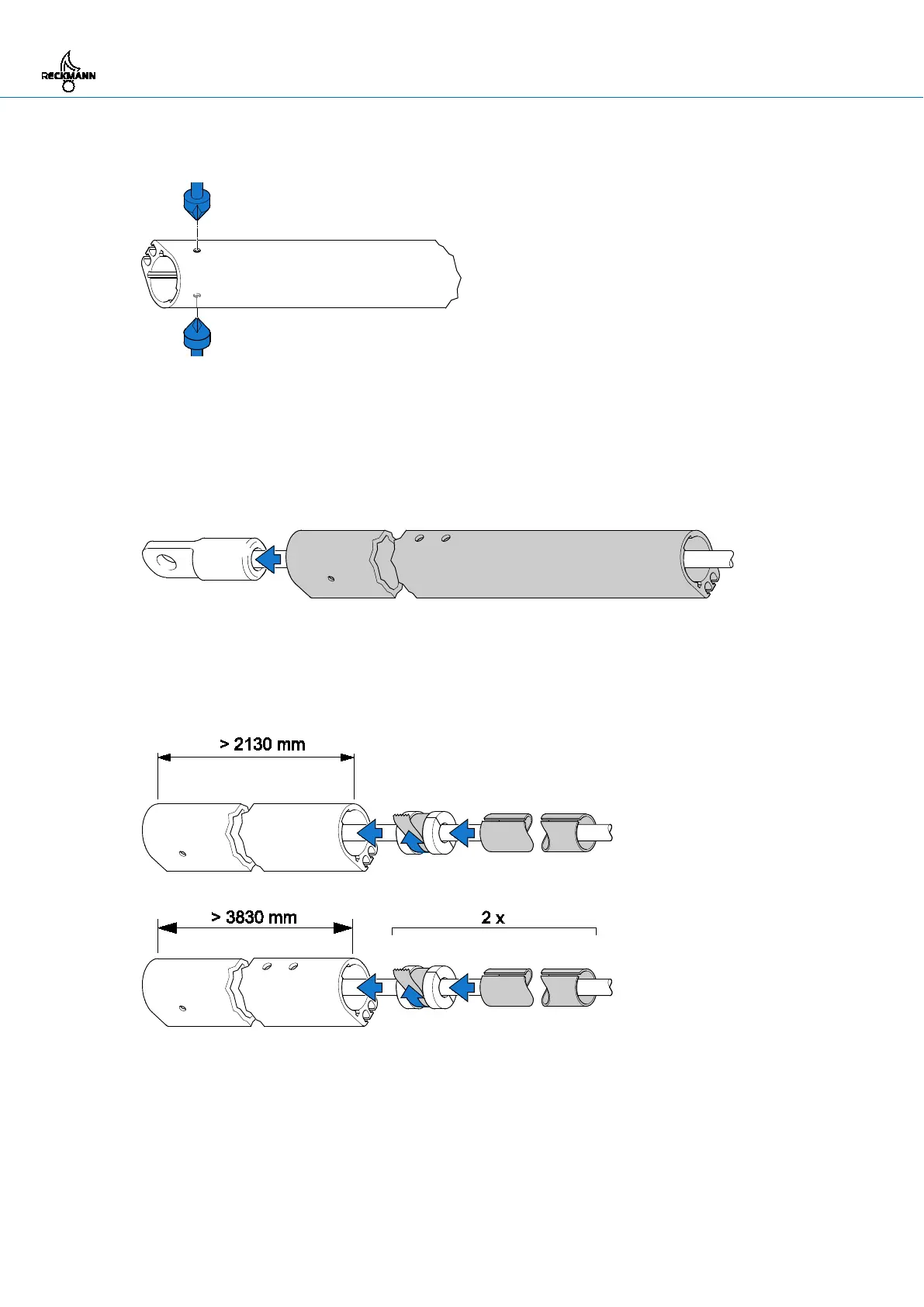

1. Slide the top furling section on to the forestay. The end with the drill holes for the top cap must
be pointing towards the terminal.
If the top furling section is less than 2130 mm long, continue with 5.2.6 Fitting the furling section
connector .
2. If the top furling section is 2130 mm long or longer but shorter than 3830 mm, then mount a split
standard bushing and secure it with tape.
If the top furling section is 3830 mm long or longer, then repeat these steps.
