Assembly
Completing the forestay (R20 – R40)
15

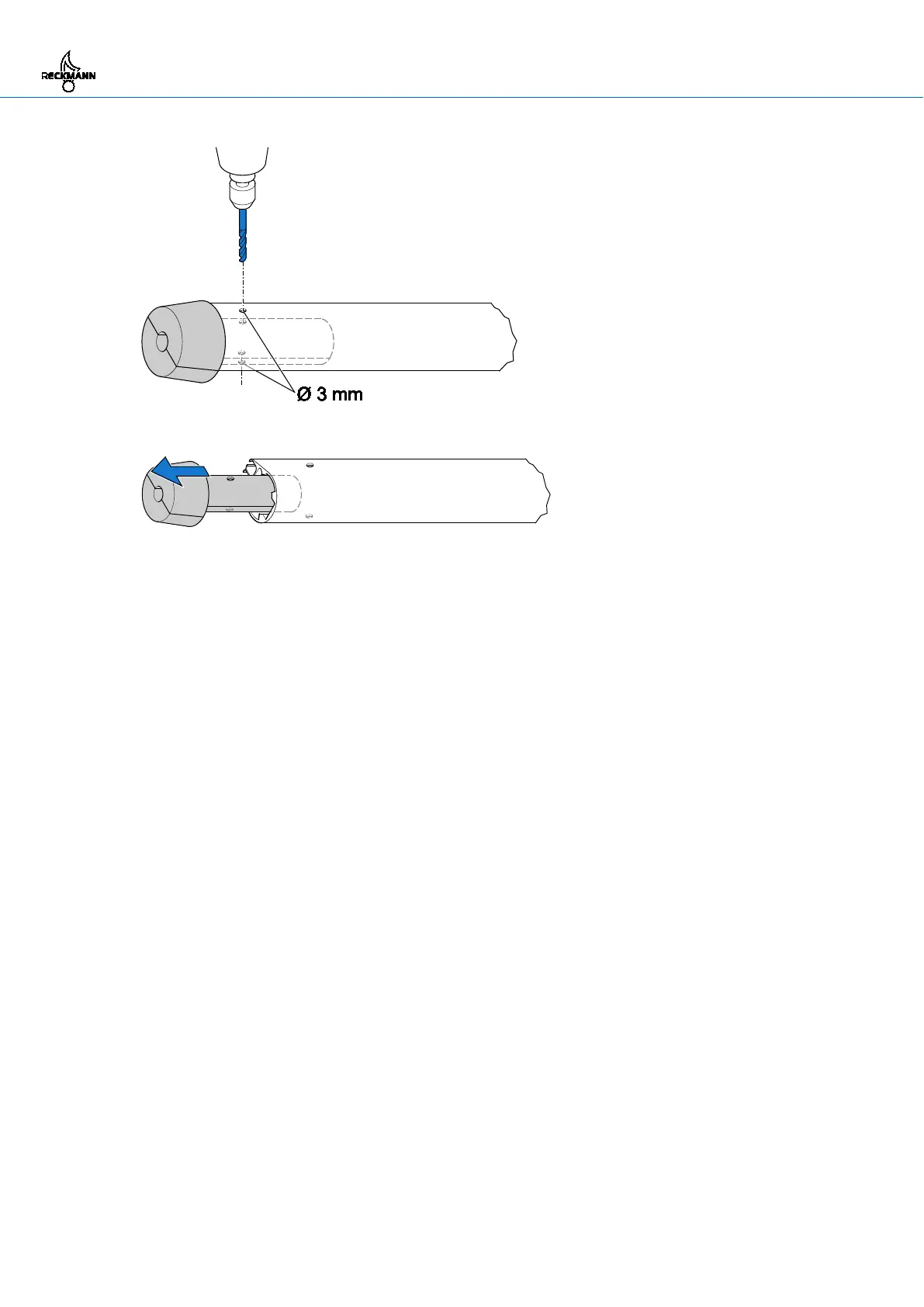

3. Take the top bushing halves out of the furling section and stow them for later assembly.
Pos: 22 /ZINDEL/Rollref fanlagen/Montage/ Alu/R10 - R40/rod/ headline_Rodvorstag vorbereiten @ 1\mod_1425 888645936_13349.doc x @ 14036 @ 3 @ 1
5.1.3 Preparing the rod forestay
Pos: 23 /ZINDEL/Rollref fanlagen/Montage/ Alu/R10 - R40/rod/ Terminal auf Rod montieren R10-R40 @ 1\mod_1411647417297_ 13349.docx @ 14001 @ 4 @ 1
5.1.3.1 Installing the top terminal on the rod forestay
Install the top terminal according to the manufacturer's instructions.
First cold-head one end of the rod forestay. Once both ends of the rod forestay have been cold-
headed, bushings or spacer hoses can no longer be fitted.
Pos: 24 /ZINDEL/Rollref fanlagen/Montage/ Alu/R10 - R40/rod/ Buchsen und Schläuche auf Ro d aufschieben @ 1\mod_13996 35546374_13349.doc x @ 13908 @ 455555 @ 1
5.1.3.2 Sliding bushings and spacer hoses on to the rod forestay
Errors made in sliding on of bushings and spacer hoses can make assembly of the furling sections
impossible. Take particular care when sliding on the bushings and spacer hoses. Follow the given
sequence precisely.
The procedure to be taken for a wire forestay is given in Sliding bushings and spacer hoses on to
the wire forestay on page 19.
