Disassembly
Dismantling the adjuster
60
9 Disassembly
Pos: 81 /ZINDEL/Rollref fanlagen/Demon tage/headline_Verst elleinheit demontier en @ 1\mod_141223995285 0_13349.docx @ 14018 @ 2 @ 1
9.1 Dismantling the adjuster
Pos: 82 /ZINDEL/Rollref fanlagen/Demon tage/Verstelleinh eit demontieren (RF90-2, RF90-3) @ 1\mod_142577183036 3_13349.docx @ 14034 @ 3 @ 1

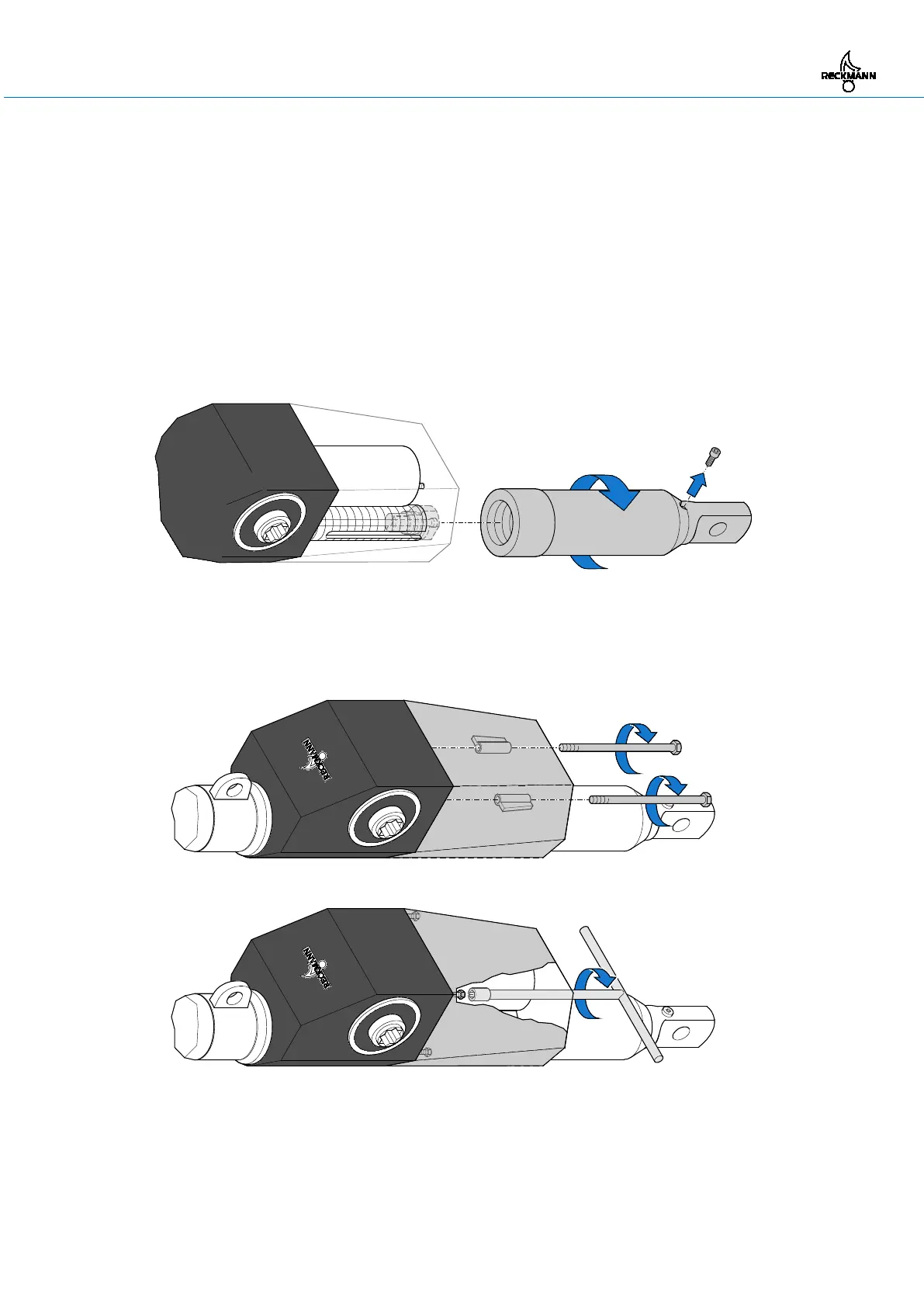

9.1.1 Dismantling the adjuster (RF90-2, RF90-3)
1. Unscrew the locking screw.
2. Unscrew the adjuster tube from the adjuster axle.
Pos: 83 /ZINDEL/Rollref fanlagen/Demon tage/Verstelleinh eit demontieren (RF90-4, RF90-5) @ 1\mod_142577218383 5_13349.docx @ 14035 @ 3 @ 1
9.1.2 Dismantling the adjuster (RF90-4, RF90-5)
1.a RF90-4: Unscrew the two screws in the outer cover and pull them out of the guide sleeves.
1.b RF90-5: Unscrew the four nuts in the outer cover using the supplied box spanner.
2. Detach the outer cover.
