Disassembly

Dismantling the adjuster

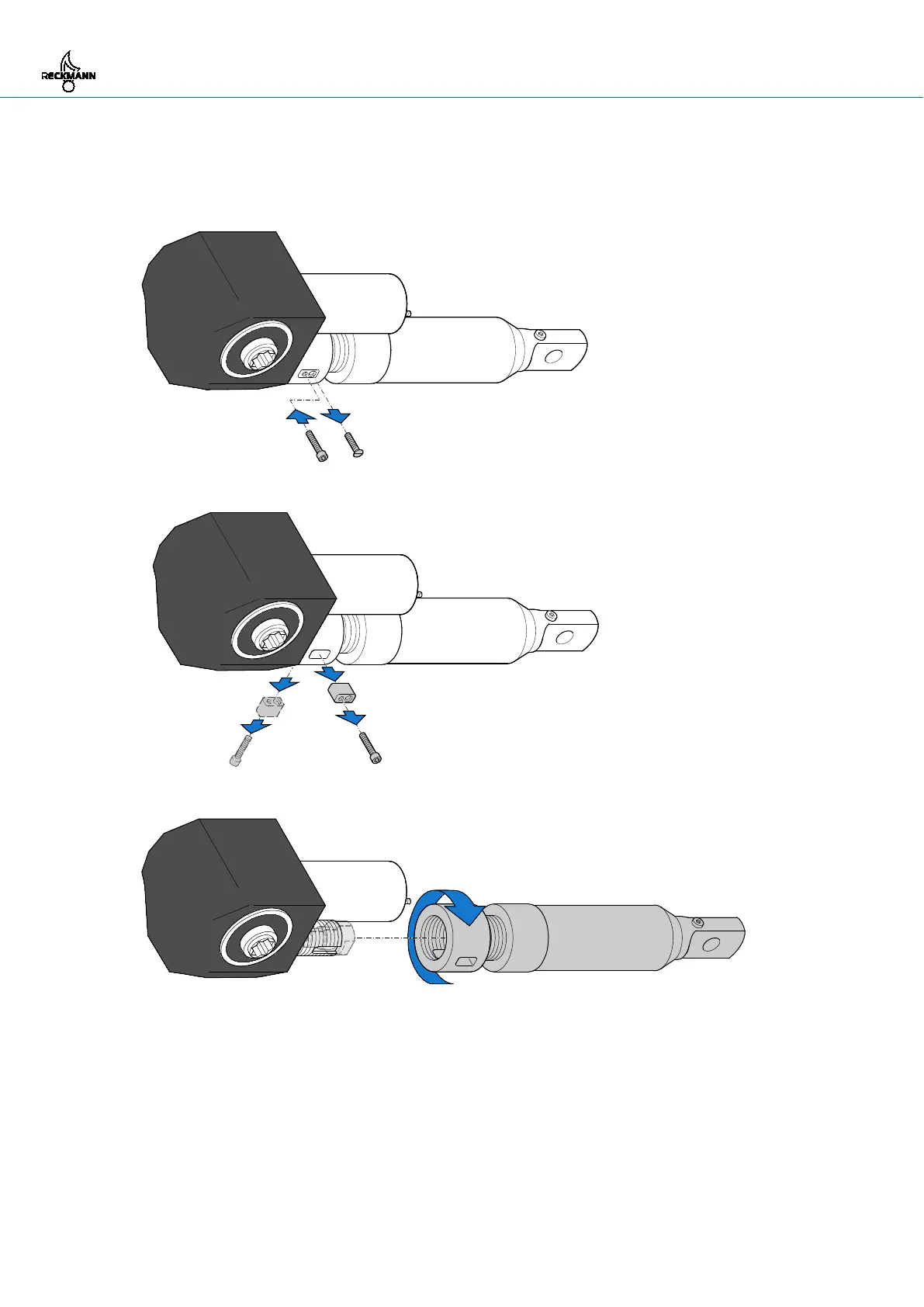

3. Unscrew the key-retaining screw.

4. Screw an M6 ✕ 40 screw into the second hole in the key and force the key out with it. Then

remove the screw.

5. RF90-5: Repeat these two steps for the second key.

6. Unscrew the adjuster tube from the adjuster axle.
