RECKMANN RF90 - Fitting the Cover; Mounting the Top Bushing

Assembly
Connecting the drive unit to the forestay
41
Pos: 53 /ZINDEL/Rollref fanlagen/Montage/ Schürze montieren @ 1\mod _1401097189689_1334 9.docx @ 13973 @ 3 @ 1

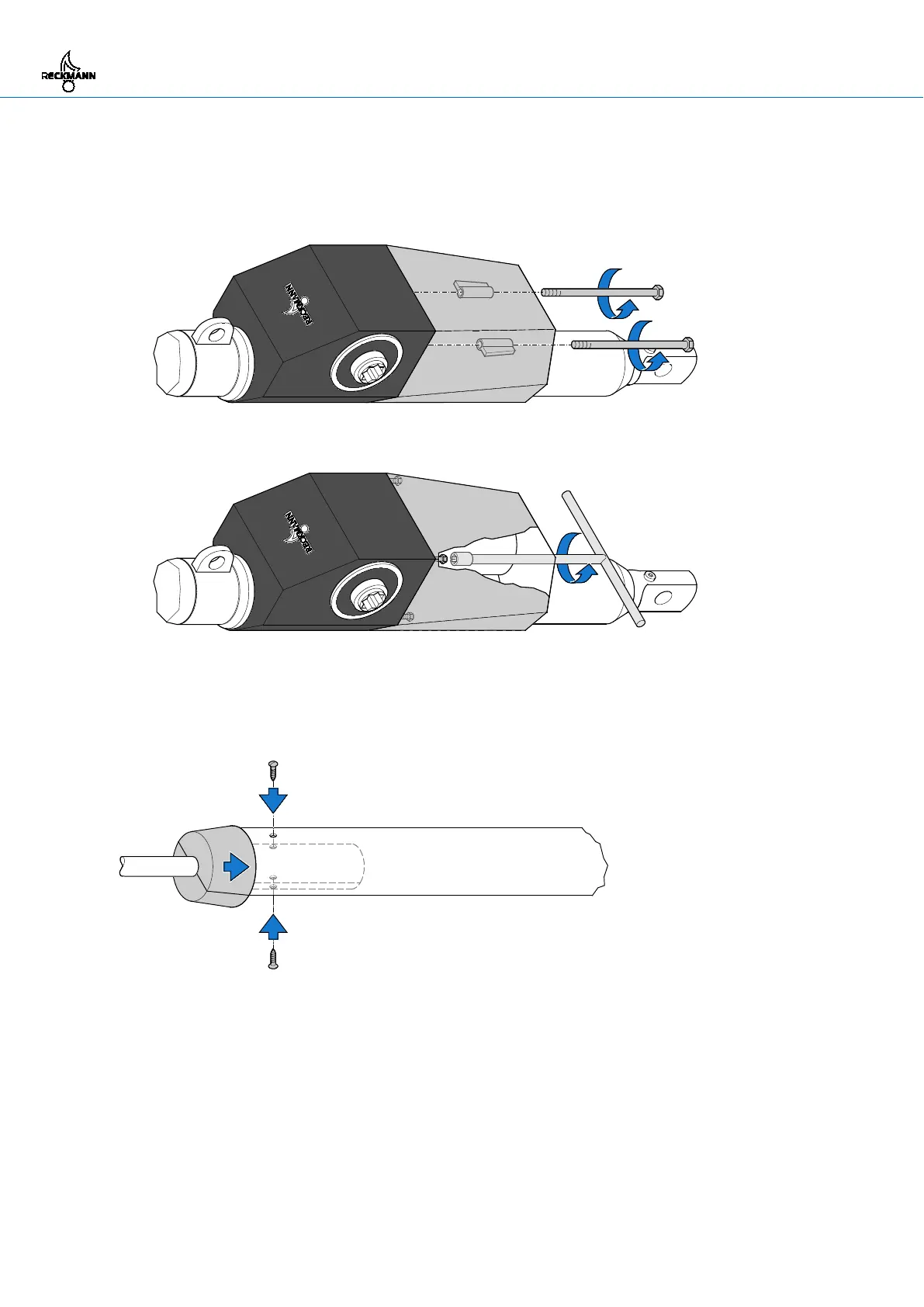

5.5.11 Fitting the cover
1. Place the cover with the eyes over the pins on the drive unit.
2.a RF90-4: Insert the screws through the guide sleeves and screw them tightly into the drive unit.
2.b RF90-5: Screw the cover to the drive unit using four nuts. Use the supplied box spanner to
tighten the nuts.
Pos: 54 /ZINDEL/Rollref fanlagen/Montage/ Alu/Topkappe montier en @ 1\mod_140084117846 5_13349.docx @ 13962 @ 3 @ 1
5.5.12 Mounting the top bushing
Insert the two halves of the top bushing into the top furling section and screw in.
