Operation
Wire pennant
46
6 Operation
Pos: 65 /ZINDEL/Rollref fanlagen/Bedien ung/Kopfstander @ 1\ mod_1400824020187_13349. docx @ 13958 @ 2 @ 1

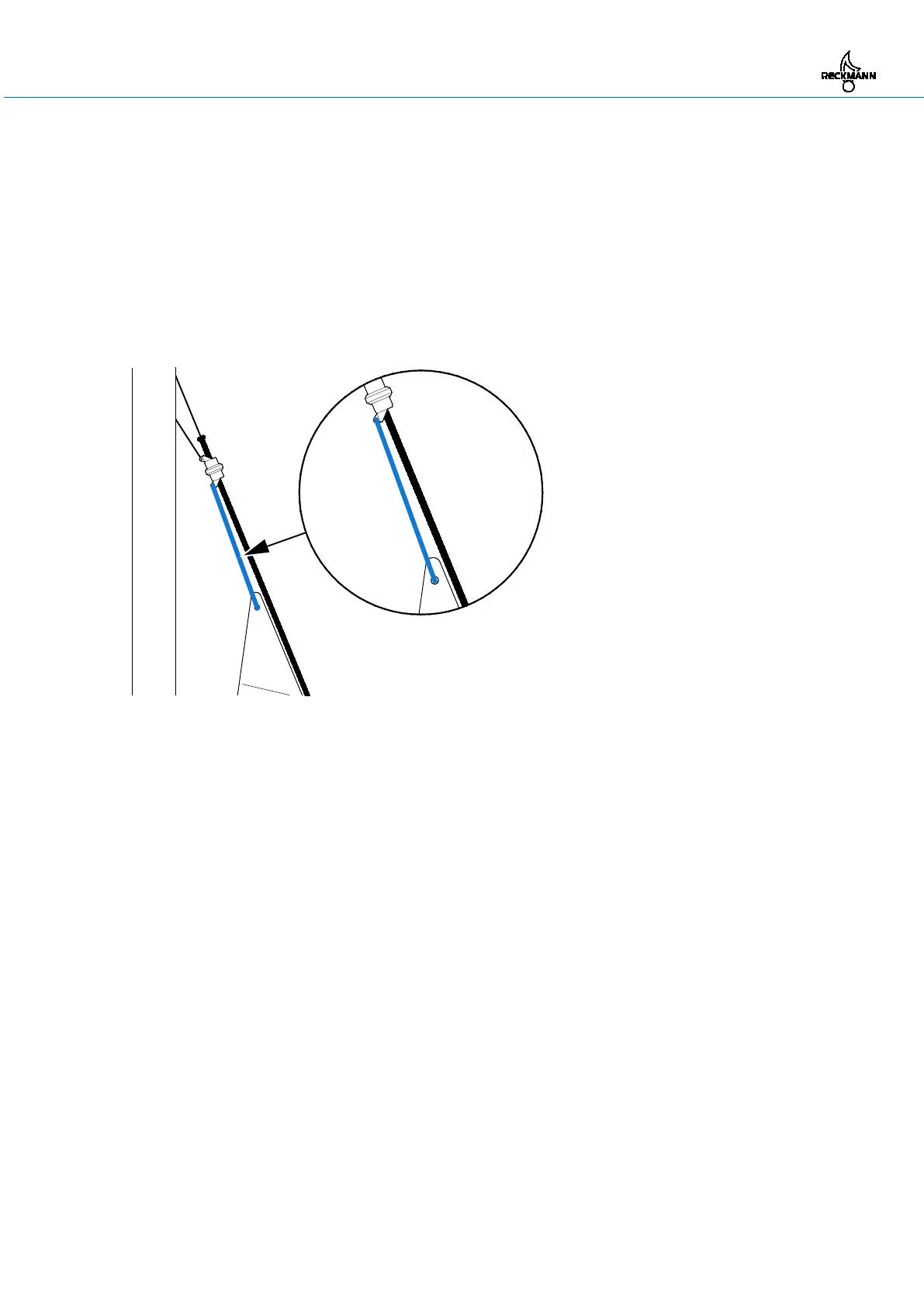

6.1 Wire pennant
When the sail is hoisted the halyard shackle must be as close as possible to the top end of the foil.
For a sail with a shorter luff a wire pennant must be fitted between the halyard swivel and the fore
sail.
Pos: 66 /ZINDEL/Rollref fanlagen/Bedien ung/Drehrichtung @ 1\ mod_1401198334606_133 49.docx @ 13982 @ 2 @ 1
6.2 Direction of rotation
In principle, the furling system can roll up the sail clockwise or anticlockwise.
Select the direction of rotation to ensure that the side with the UV-resistant coating is facing
outwards after the sail has been rolled up.
Pos: 67 /ZINDEL/Rollref fanlagen/Bedien ung/Segel reffen und Seg el ausrollen @ 1\mod_1401 198939968_13349.d ocx @ 13983 @ 2 @ 1
