Assembly
Connecting the drive unit to the forestay
39

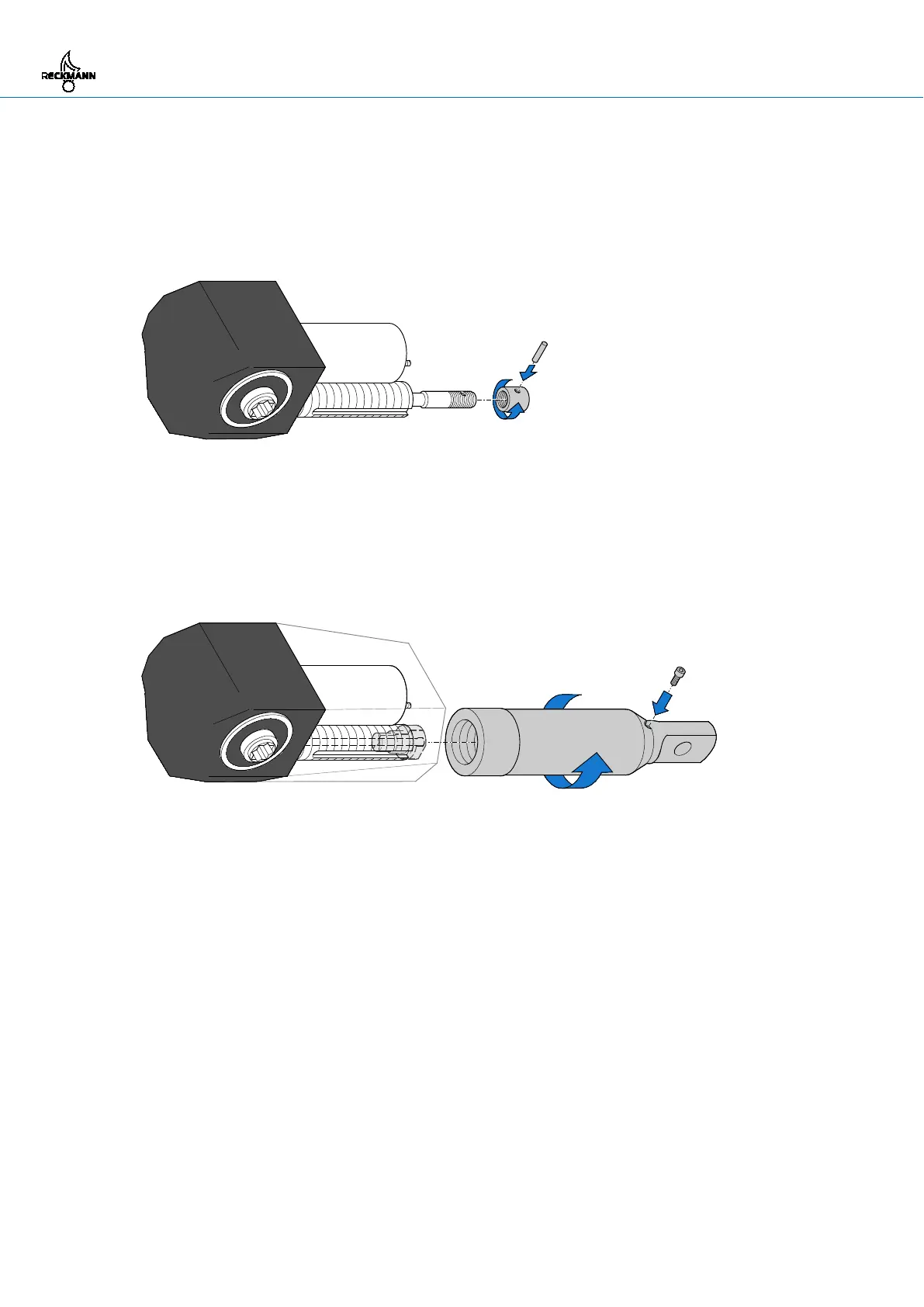

5.5.7 Securing the wire forestay
1. Insert the forestay through the drive unit until the entire thread is protruding from the adjuster
axle.
2. Screw the special nut all the way on to the forestay.
3. Secure the special nut with the accompanying pin.
4. Pull the forestay back into the drive unit until the special nut is in contact with the adjuster axle.
Pos: 50 /ZINDEL/Rollref fanlagen/Montage/ RF90-2, RF90-3/Vers telleinheit montieren ( RF90-2, RF90-3) @ 1\mod_1401 095435145_13349. docx @ 13972 @ 3 @ 1
5.5.8 Fitting the adjuster (RF90-2, RF90-3)
1. Screw the adjuster tube to the adjuster axle. The keys in the adjuster tube must be engaged in
the grooves in the adjuster axle.
2. Screw the locking screw tightly into the adjuster tube.
