Fitting the halyard swivel and the sail feeder (R20 – R40, R5)
34

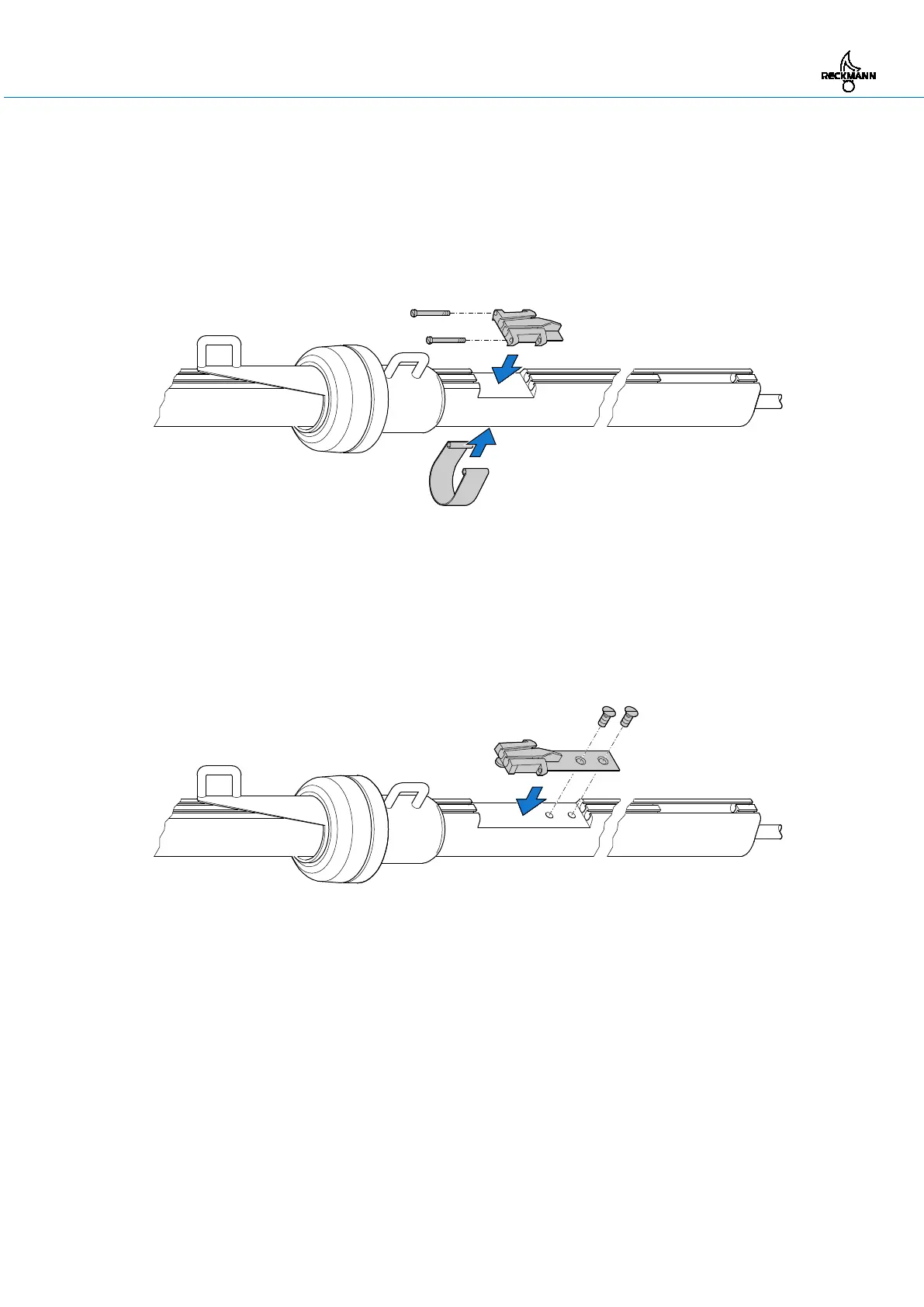

5.3 Fitting the halyard swivel and the sail feeder (R20 – R40, R5)
1. Slide the halyard swivel over the feeder section until it is above the recess for the sail feeder.
2. Place the sail feeder in the recess.
3. Snap the retaining clip for the sail feeder around the feeder section.
4. Secure the sail feeder and the retaining clip with two screws.
Pos: 41 /ZINDEL/Rollref fanlagen/Montage/ Alu/Fallensch litten und Segeleinführ er montieren (R6 – R8) @ 1\ mod_1400845753274_13349. docx @ 13963 @ 2 @ 1
5.4 Fitting the halyard swivel and the sail feeder (R6 – R7)
1. Slide the halyard swivel over the feeder section past the recess for the sail feeder.
2. Place the sail feeder with the tongue first in the recess.
3. Screw the threaded plate to the foil reinforcement using the supplied screws.
