RECKMANN RF90 - Page 41

Assembly
Connecting the drive unit to the forestay
37

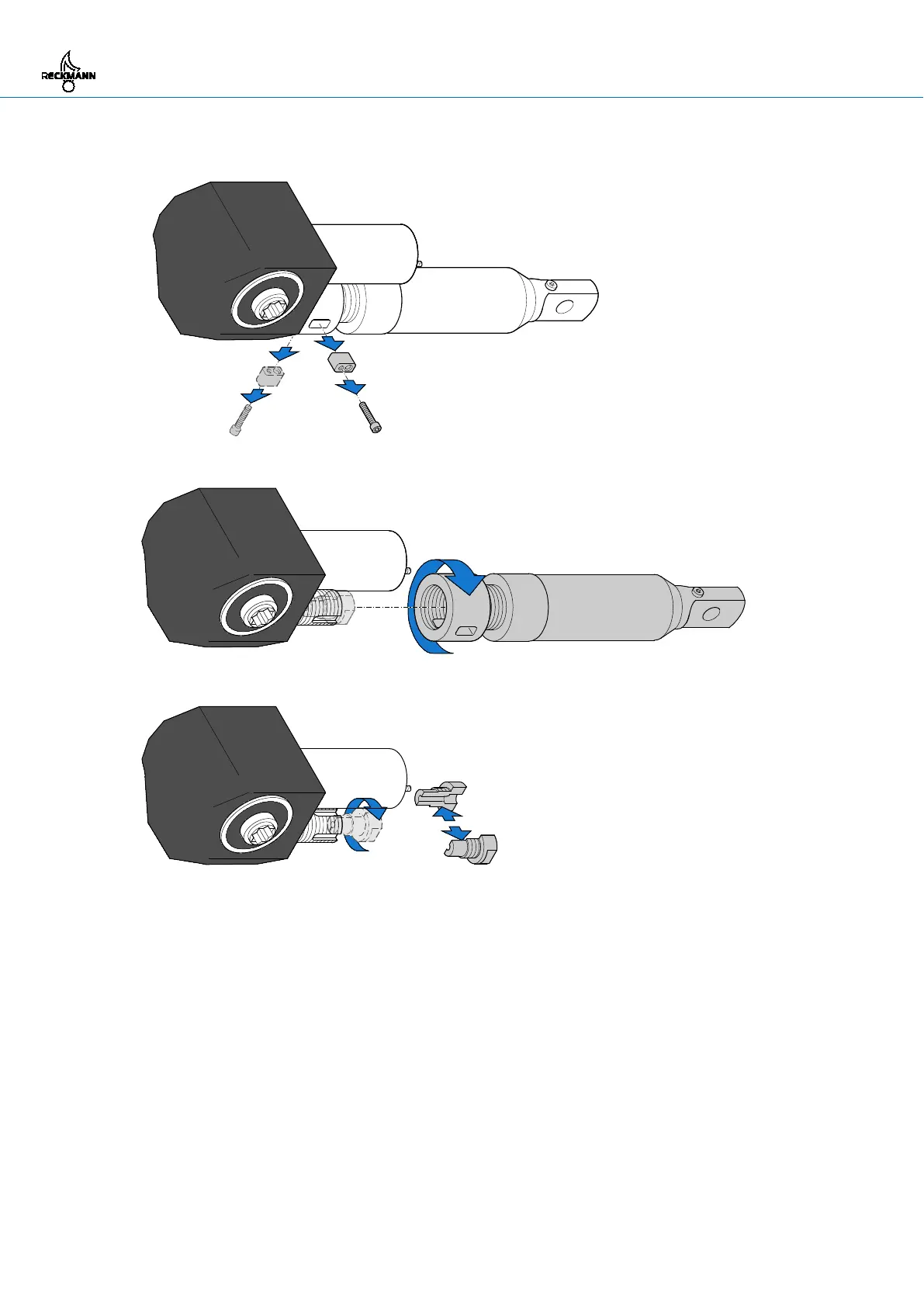

3. RF90-5: Repeat these two steps for the second key.
4. Unscrew the adjuster tube from the adjuster axle.
5. Only for a rod forestay: unscrew the rod collet from the adjuster axle.
