Assembly
Completing the forestay (R20 ā R40)
22

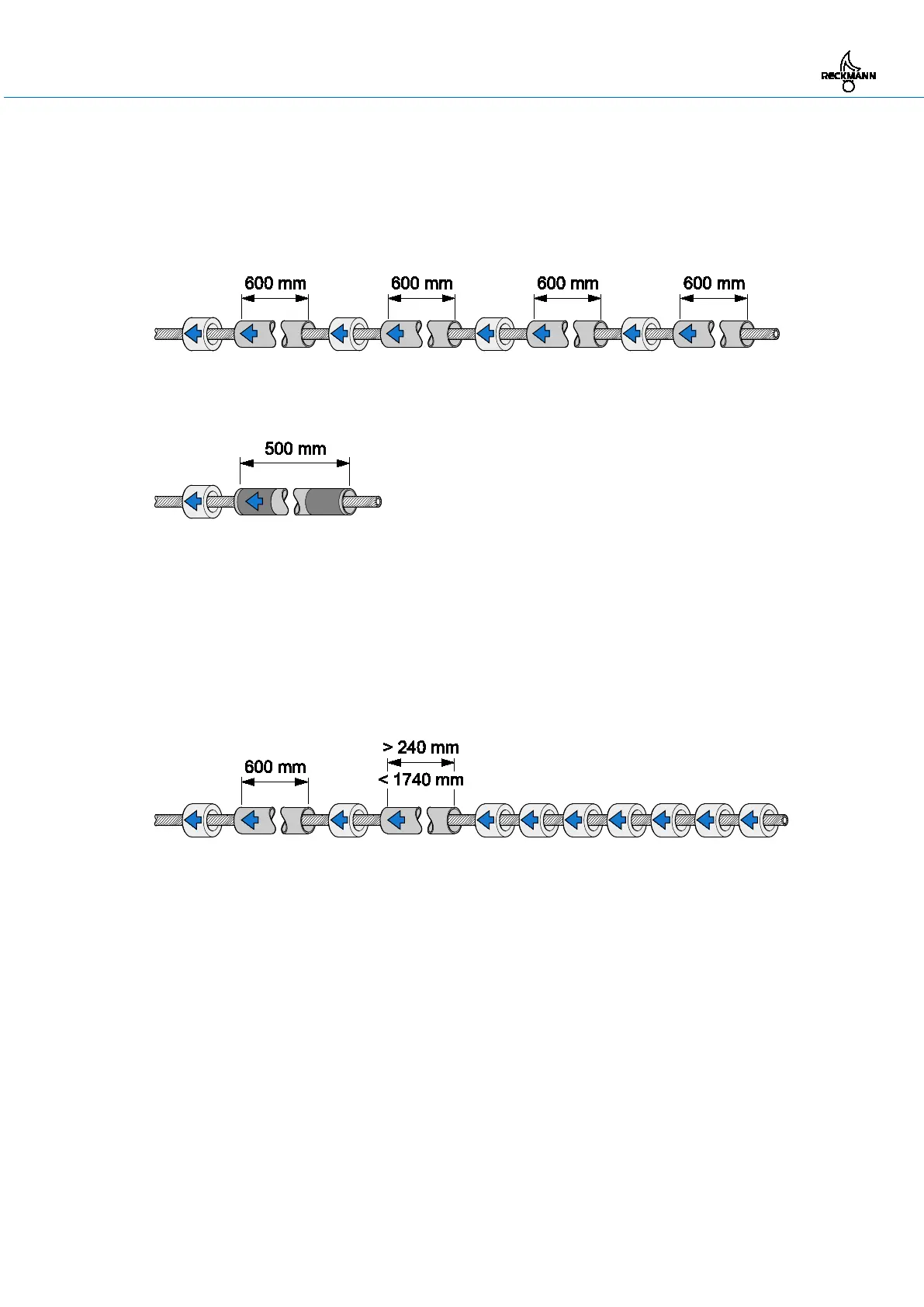

Sliding on bushings and spacer hoses for 3000-mm-long standard furling sections
Carry out the following steps for each of the 3000-mm-long standard furling sections. The top
furling section should not be included.
1. Slide on a standard bushing and a 600-mm-long spacer hose and repeat three more times.
2. Slide on a standard bushing.
3. Slide on a 500-mm-long spacer hose with ends marked red.
Sliding on bushings and spacer hoses for the top furling section
1. Slide on a standard bushing.
2. Slide on a 600-mm-long spacer hose.
3. Slide on a standard bushing.
4. Slide on the top spacer.
5. Slide on seven standard bushings.
