Assembly
Completing the forestay (R20 ā R40)
21

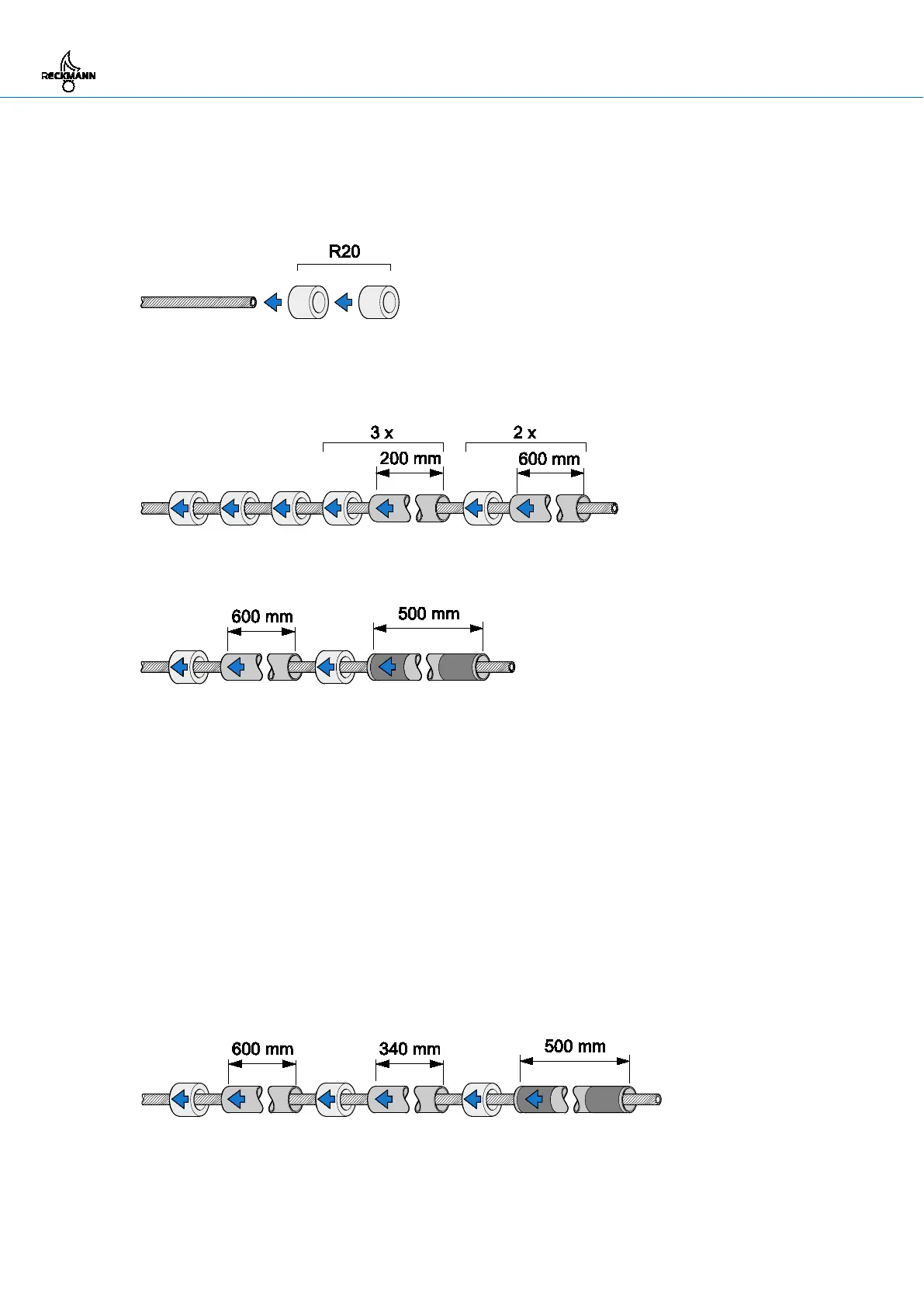

Sliding on bushings and spacer hoses for the feeder section
If a foil reinforcement should be fitted, skip the first four steps. In this case begin with step 5.
1. Only R20: slide on two standard bushings.
2. Slide on three standard bushings.
3. Slide on a standard bushing and a 200-mm-long spacer hose and repeat two more times.
4. Slide on a standard bushing and a 600-mm-long spacer hose and repeat one more time.
5. Slide on a standard bushing, a 600-mm-long spacer hose and another standard bushing.
6. Slide on a 500-mm-long spacer hose with ends marked red.
The furling section connectors will later be located on the spacer hoses marked red.
Sliding bushings and spacer hoses on for a 1500-mm-long furling section
The following steps are only necessary if a 1500-mm-long furling section is present. If no 1500-mm-
long furling section is present, continue with 'Sliding on bushings and spacer hoses for 3000-mm-
long standard furling sections'.
1. Slide on a standard bushing.
2. Slide on a 600-mm-long spacer hose.
3. Slide on a standard bushing.
4. Slide on a 340-mm-long spacer hose.
5. Slide on a standard bushing.
6. Slide on a 500-mm-long spacer hose with ends marked red.
