Operation
Adjusting the forestay length (RF90-4, RF90-5)
53
3. Slowly depressurise the hydraulic connection. The adjuster will now lengthen by the stroke
length 'X'.
4. Repeat these three steps until the desired length has been reached. The maximum length has
been reached when the visible part of the adjuster tube under the outer cover has reached the
length 'Y'.

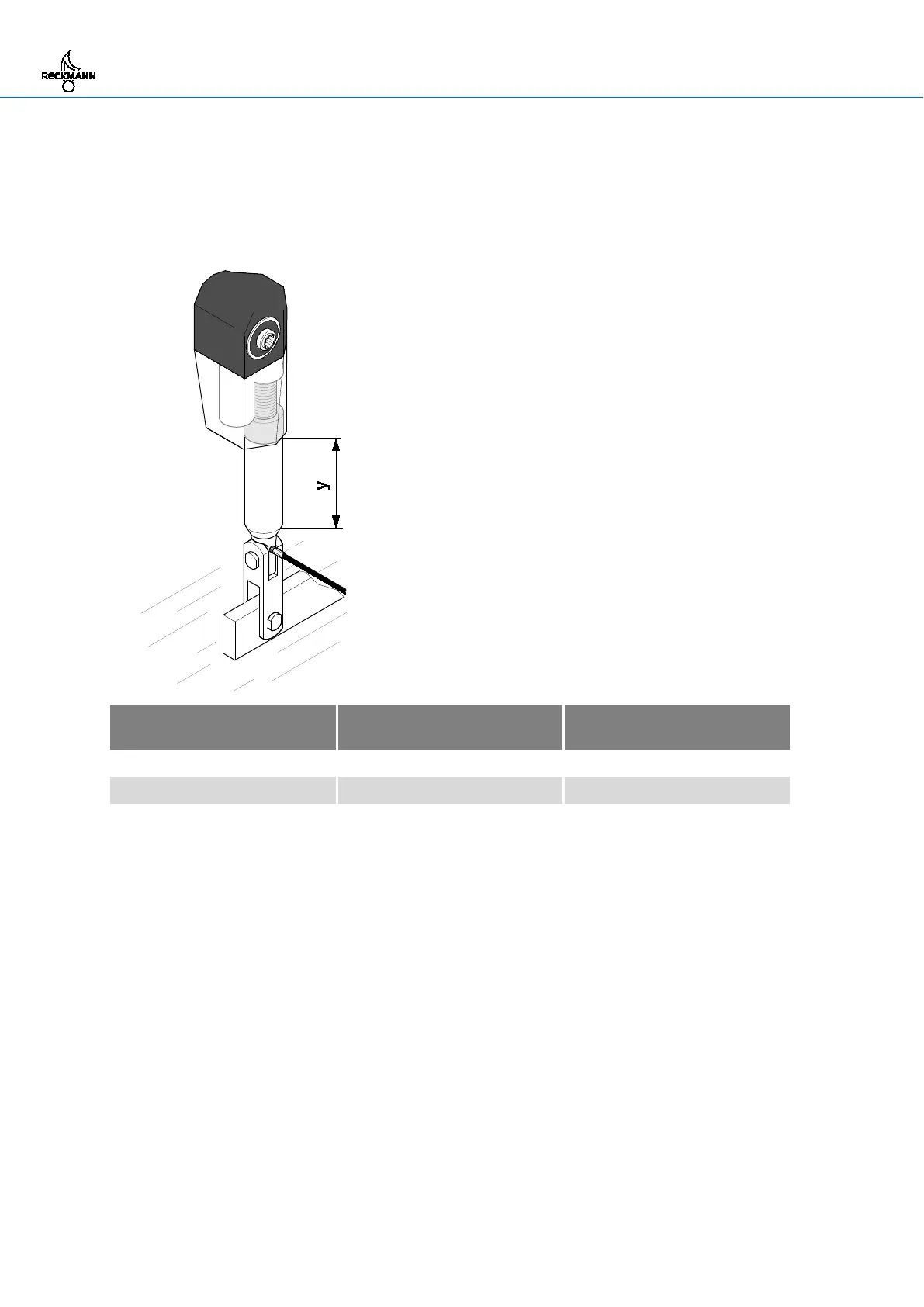

X: stroke length Y: maximum visible adjuster
tube length
RF90-4 17 mm 170 mm
RF90-5 20 mm 218 mm
