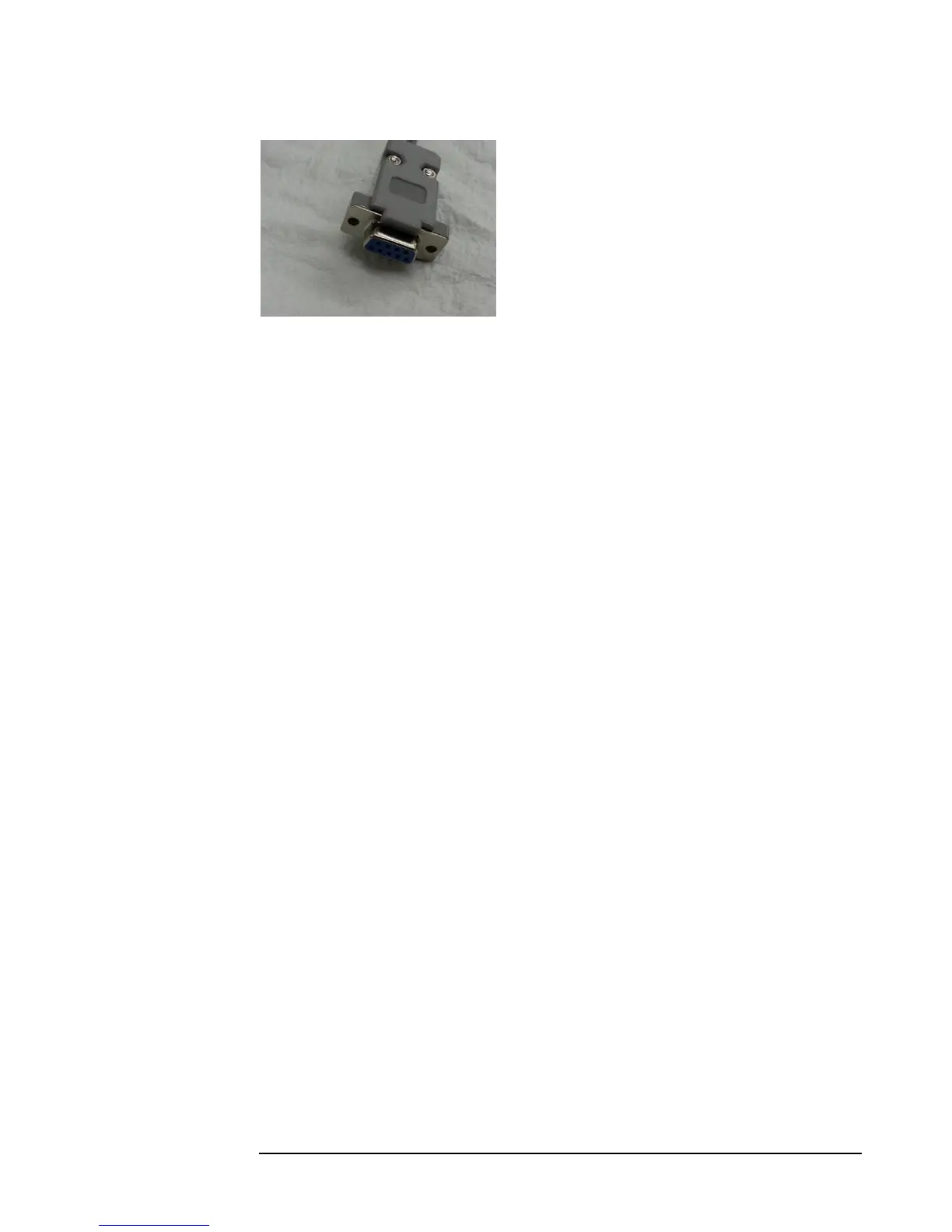

Figure 2: D9 Serial Connector. Used for RS-232 communication.
1.1 A Note Concerning the RS-232 Cable Connector
In Figure 2, the connector shown above is a female connector which is used with
many third-party dispatch terminals, and was the original default option provided
with early models of the Record CG3. Nowadays, the CG3 comes with a male
connector by default for communicating with the BlackCat OBDII device for
measuring automobile speed.
If you require a female connector, please contact us for a male-to-female adaptor,
which we provide for a nominal cost, plus shipping.
