SET UP EXTERNAL TIMECODE
To set up and adjust timecode generated by an external device, follow the instructions below.
1. Connect the external timecode generator to the BRAIN using a 3BNC-to-00 LEMO Sync Cable.
A. Connect the yellow BNC connector to the output on the timecode generator.
B. Connect the 00B LEMO connector to the SYNC port on the BRAIN.

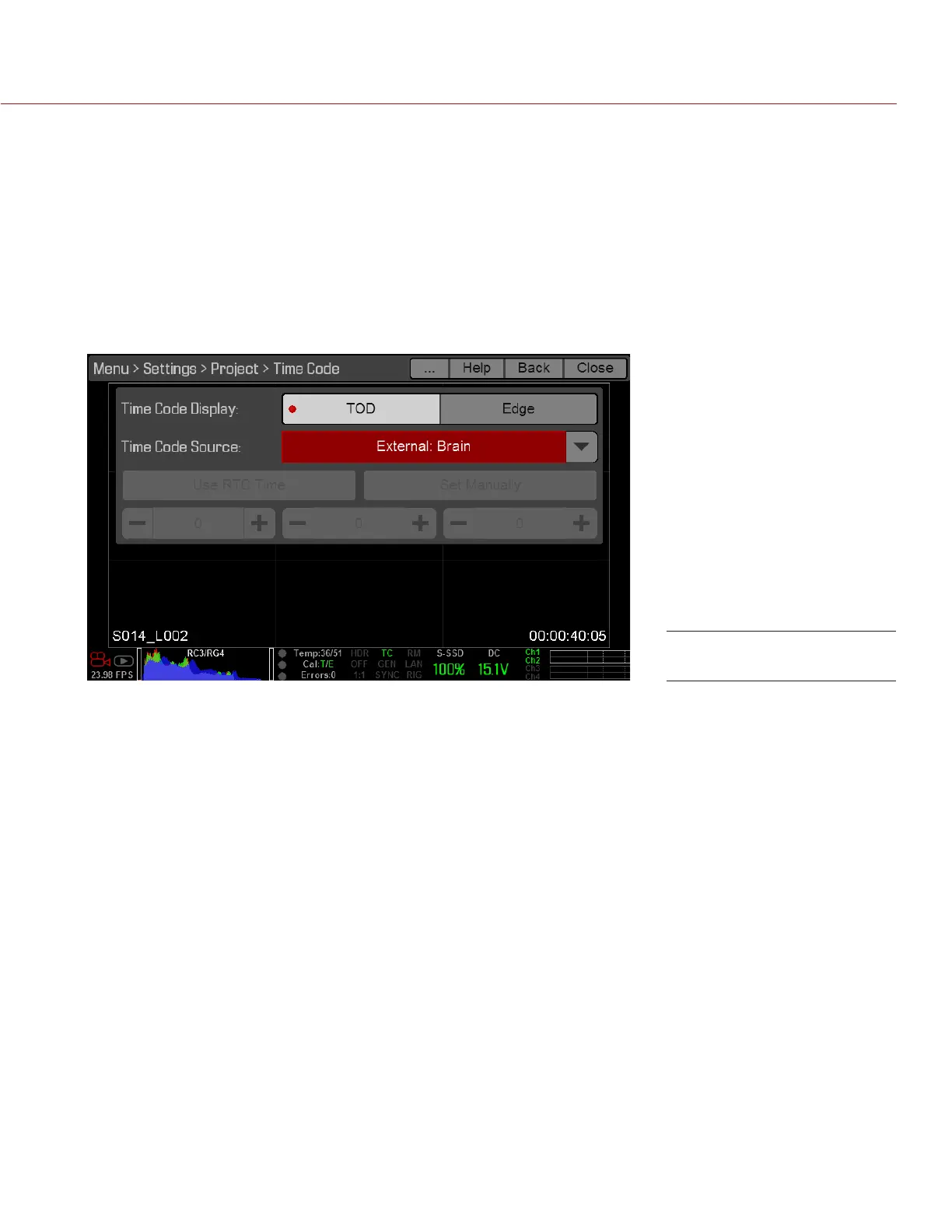

2. Go to Menu > Settings > Project > Time Code.
3. Select the desired Time Code Display mode.
4. Set Time Code Source to External: Brain.
The TC indicator in the Lower Status Row turns green when an external timecode source is locked.
NOTE: When an external source is selected but not present, timecode displays User Provided settings.
REQUIRED CABLE
790-0154: 3BNC-to-00 LEMO Sync Cable
Source: External: BRAIN
