RED DSMC OPERATION GUIDE

INSTALL THE MODULE ADAPTOR

You must install an adaptor module on the back of the BRAIN before you install a DSMC module.

REQUIRED TOOL: T20 Torx

driver

1. Turn off the BRAIN.

2. Remove the REDMOTE, if attached.

3. Position the Module Adaptor over the V-mount on the rear of the BRAIN.

4. Apply pressure and tighten the four (4) captive screws in a cross pattern (“X” pattern) approximately two (2)

turns each using a T20 Torx driver. DO NOT FULLY TIGHTEN.

5. Fully tighten the four (4) screws in a cross pattern (“X” pattern). DO NOT OVERTIGHTEN.

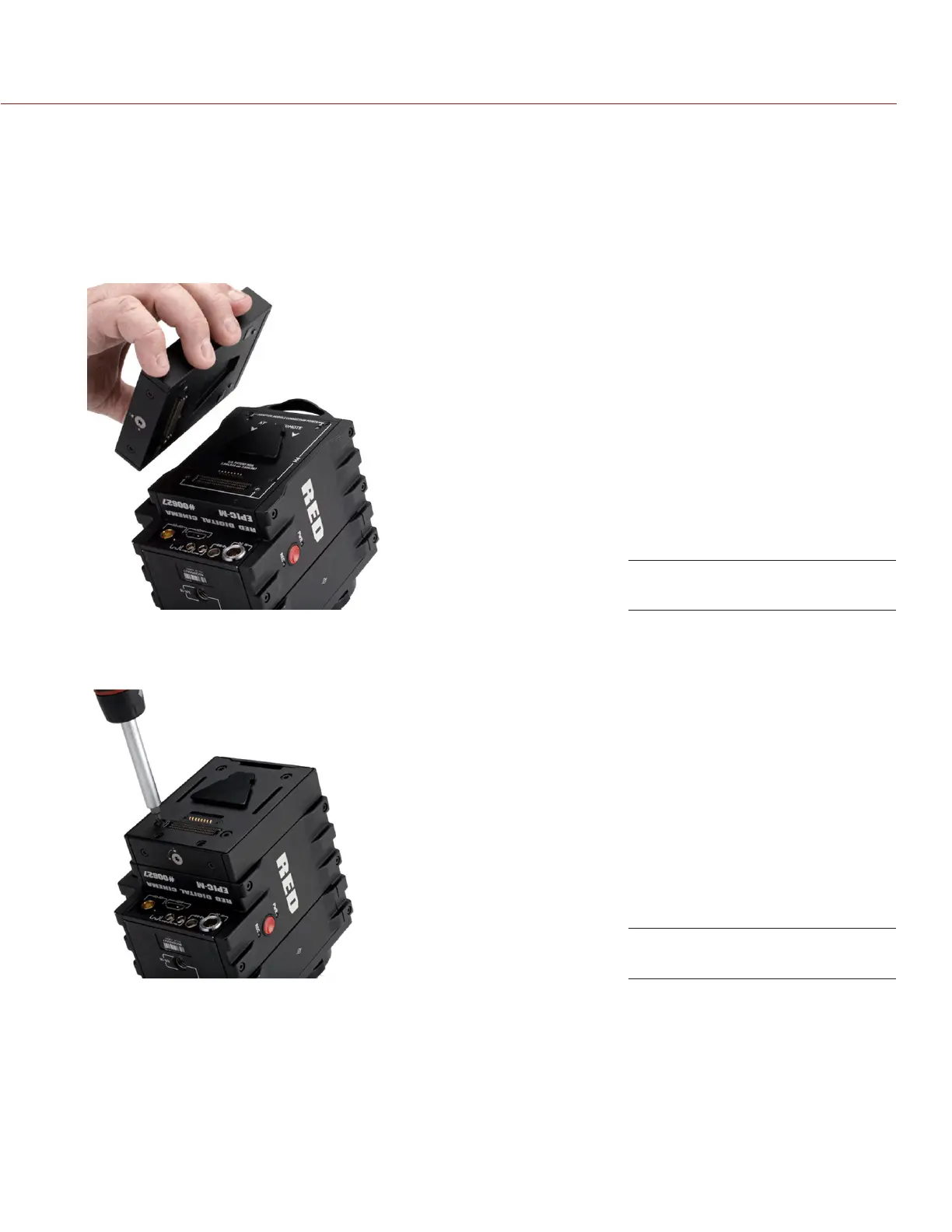

Install Module Adaptor

Install Screws
