RED DSMC OPERATION GUIDE

955-0020_V5.2, REV-G | 36

REMOVE THE MODULE ADAPTOR

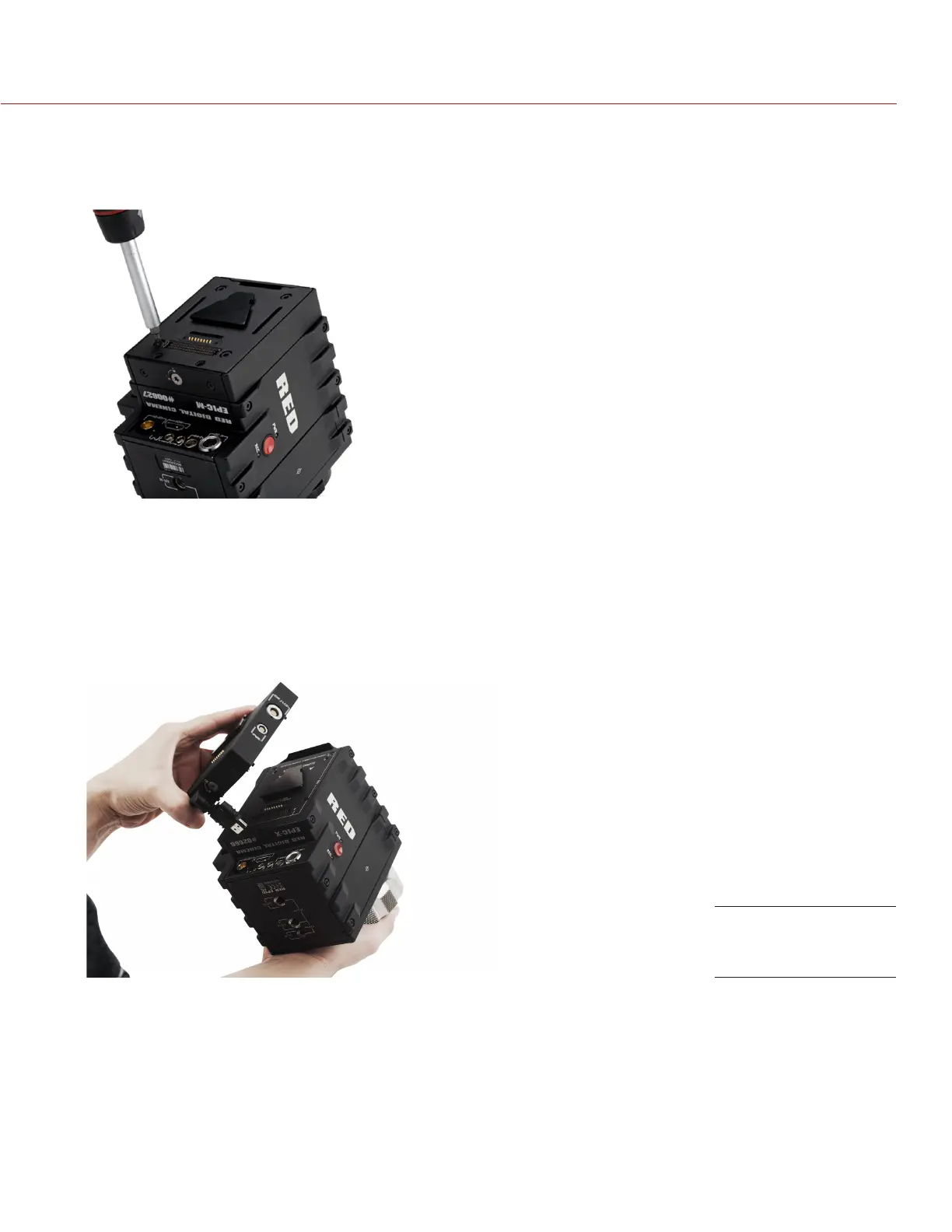

1. Turn off the BRAIN.

2. Use a T20 Torx driver to loosen the screws attaching the Module Adaptor to the BRAIN.

3. Remove the Module Adaptor from the BRAIN.

INSTALL THE +1 ADAPTOR MODULE

REQUIRED TOOL: T20 Torx driver

1. Turn off the BRAIN.

2. Remove the REDMOTE, if attached.

3. Position the +1 Adaptor Module over the V-mount on the rear of the BRAIN.

Install the +1 Module

Adaptor
