RED DSMC OPERATION GUIDE

4. Insert the HDMI connector into the HDMI port on the BRAIN.

5. Apply pressure and tighten the four (4) captive screws in a cross pattern (“X” pattern) approximately two (2)

turns each using a T20 Torx driver. DO NOT FULLY TIGHTEN.

6. Fully tighten the four (4) screws in a cross pattern (“X” pattern). DO NOT OVERTIGHTEN.

REMOVE THE +1 ADAPTOR MODULE

REQUIRED TOOL: T20 Torx driver

1. Turn off the BRAIN.

2. Use a T20 Torx driver to loosen the four (4) captive mounting screws that attach the +1 Adaptor Module to

the BRAIN.

3. Disconnect the HDMI connector from the BRAIN.

4. Remove the +1 Adaptor Module from the BRAIN.

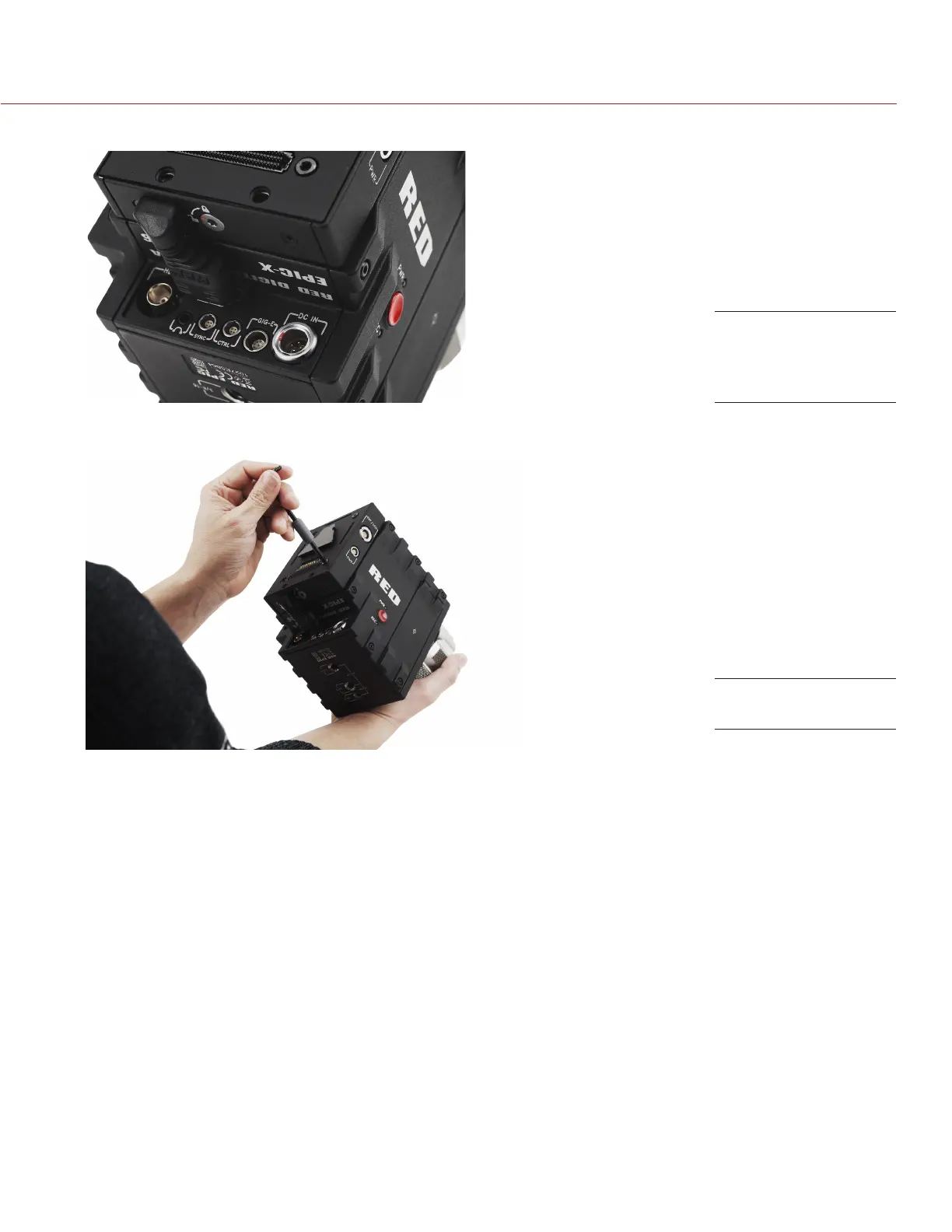

Insert the HDMI

Connector to the

BRAIN

Install screws
