RED DSMC OPERATION GUIDE

955-0020_V5.2, REV-G | 38

ATTACH A DSMC MODULE

REQUIRED TOOL: T20 Torx driver

1. Turn off the BRAIN.

2. Insert the lip at the top of the module into the recess at the top of the adaptor module.

3. Rotate the module down flush with the rear of the adaptor module.

4. Apply pressure and use a T20 Torx driver to turn the lock on the bottom of the adaptor module clockwise

into the Lock position.

REMOVE A DSMC MODULE

REQUIRED TOOL: T20 Torx driver

1. Turn off the BRAIN.

2. Use a T20 Torx driver to turn the lock on the adaptor module counter-clockwise to the Unlock position.

3. Rotate the module upwards and away from the adaptor module to disengage.

4. Remove the module.

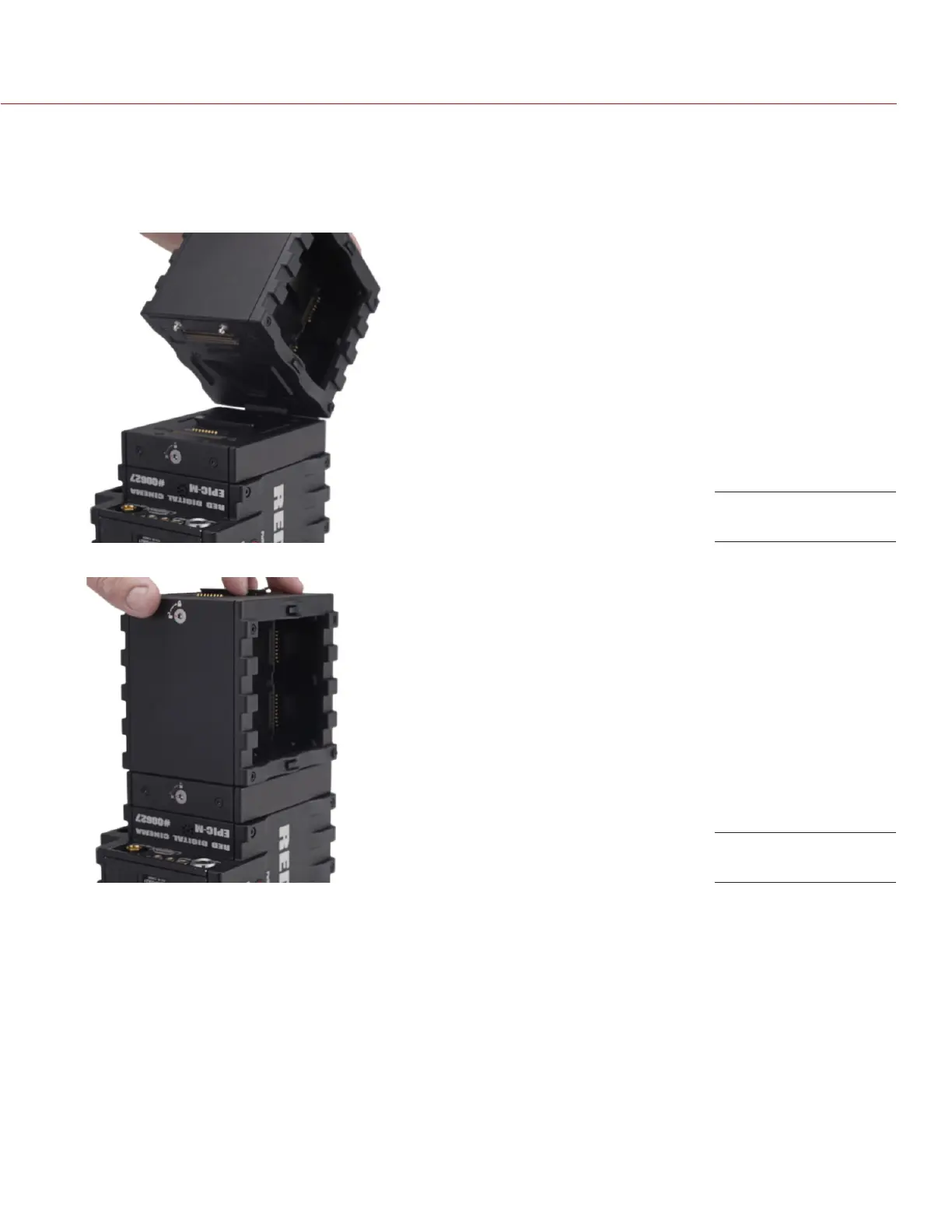

Insert Module Lip

Press Module Flush
