RED DSMC OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0020_V5.2, REV-G | 39
REPLACE THE HOOD SCOOP
The hood scoop on some EPIC-X and EPIC-M models extends beyond the rear plane of the BRAIN. RED offers
shorter hood scoops so that you can attach an LCD or other accessory to the mounting locations on the top
of the +1 Adaptor Module.
To replace DSMC fan hood scoop, follow the instructions below:.
1. Turn off the BRAIN.
2. Use a T8 Torx driver to remove the four (4) M3x0.5 x 6 mm cap screws holding the hood scoop.
3. Lift off the hood scoop.
4. Position the replacement hood scoop on the BRAIN.
5. Align the hood scoop screw holes with the threaded holes on top of the BRAIN.
6. Use a T8 Torx driver to tighten four (4) M3x0.5 x 6 mm cap screws in a cross pattern (“X” pattern). DO NOT
FULLY TIGHTEN.
7. Tighten the four (4) M3x0.5 x 6 mm cap screws evenly in a cross pattern (“X” pattern). DO NOT exceed 30
in-oz, or damage may occur.

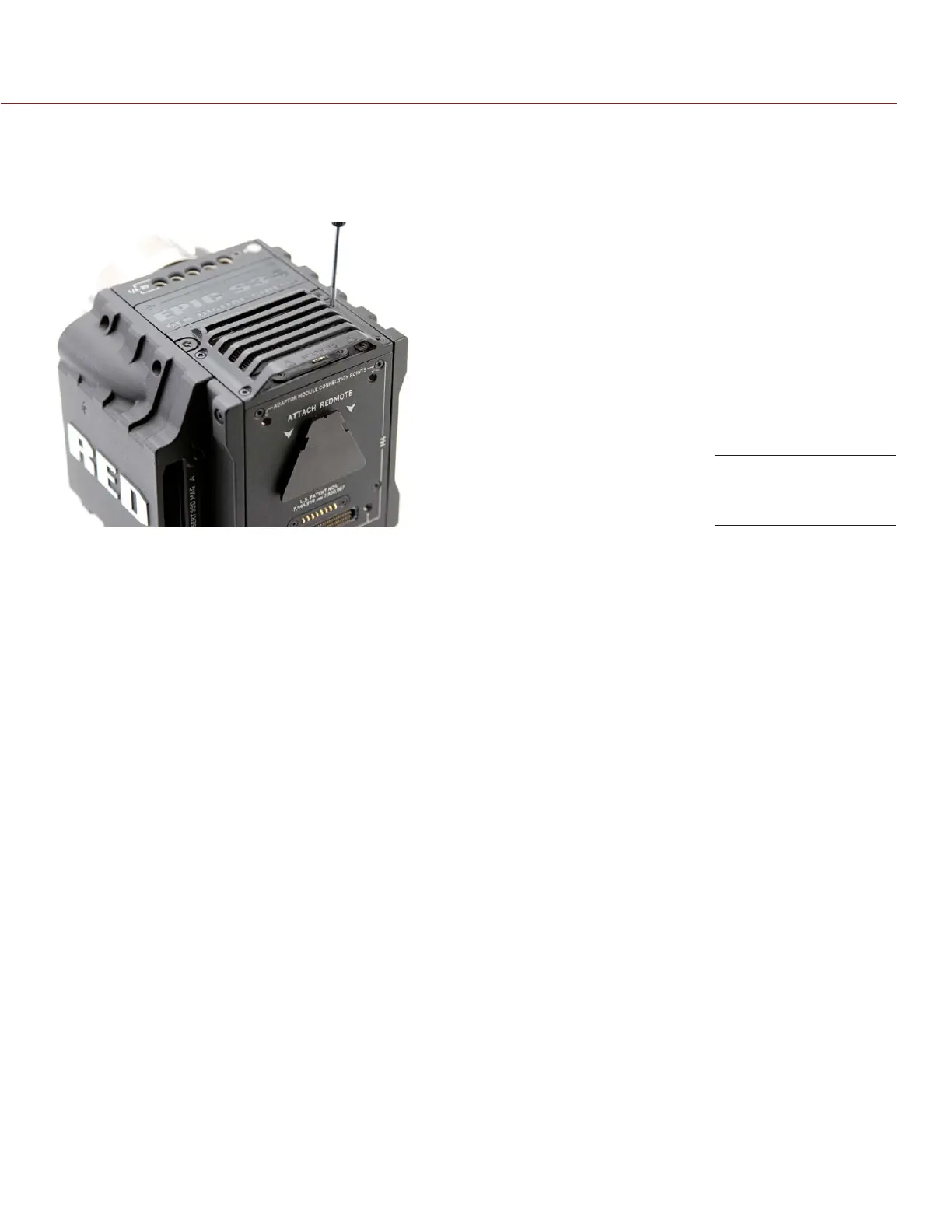

Replace the Hood
Scoop
