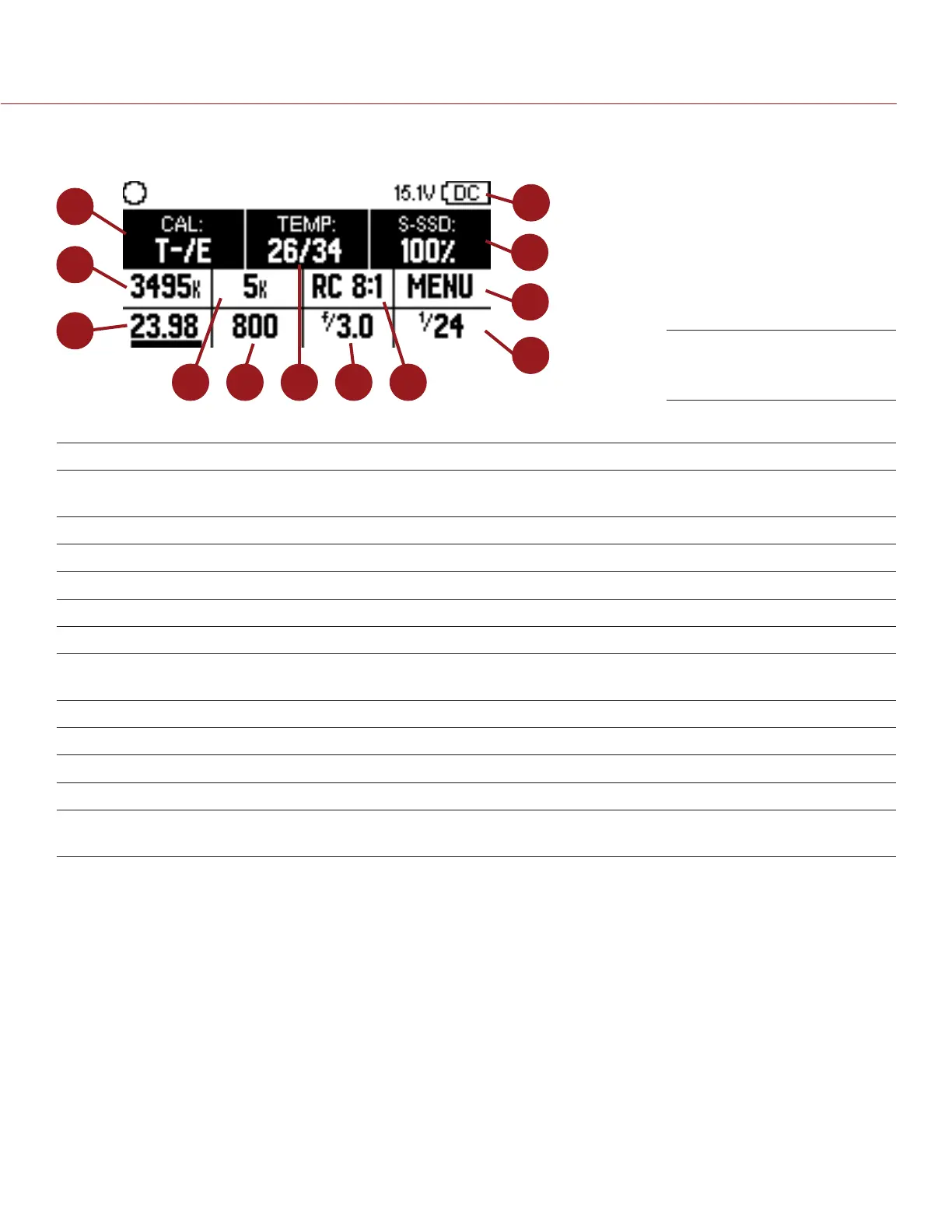

DSMC SIDE HANDLE DISPLAY
The DSMC Side Handle displays Basic Menu parameters and other system status information.
1
2
3
4 5 6 7 8
11
10
9
12
The DSMC Side Handle displays the following camera parameters:
# DISPLAY ITEM DESCRIPTION
1 Calibration Indicator of relative change in sensor temperature and exposure since
last calibration
2 White Balance Color temperature
3 Frame Rate Current frame capture rate
4 Resolution Recording resolution
5 ISO Camera sensor sensitivity
6 Temperature Displays camera sensor and core temperature, respectively
7 Lens Information Displays aperture when a supported Canon, Nikon, or Cooke lens is
attached
8 REDCODE REDCODE compression setting
9 Shutter Speed Exposure time or shutter angle
10 MENU Access to Advanced Menus
11 Media Status Displays media location and remaining media capacity
12 Power Status Indicates DC supply voltage or % of remaining battery capacity including
current supply voltage
