COPYRIGHT © 2014 RED.COM, INC
RED DSMC OPERATION GUIDE
955-0020_V5.2, REV-G | 68
LENS TAB
APERTURE (F STOP)
1/4 F#: F Stop (aperture) increments in 1/4 stops.
1/3 F#: F Stop (aperture) increments in 1/3 stops. (Default)
FOCUS DISTANCE
Metric: Displays lens focus distances in meters.
Imperial: Displays lens focus distances in feet and inches. (Default)
MOTION MOUNT ND AND MOTION MOUNT ISO PULL
Only applicable when using a DSMC
®
RED Motion Mount
TM
. For more information, see the DSMC Motion Mount
Operation Guide, available at www.red.com/downloads.
RACK TARGET DISTANCE
On: Displays the focus distance of each rack point on the main screen when rack focus is enabled. For more
information, go to “Set Up Rack Focus” on page 118.
Off: Does not displays the focus distance of rack points when rack focus is enabled. (Default)
GUIDES
Use the Guides menu to configure the Frame Guide, Action Guide, and Title Guide.
MODE
Off: Disable all guides.
Full: Guide has the same aspect ratio as the record format.
4:3, 16:9, 1.85:1, 1.9:1, 2.4:1: Guide has the selected aspect ratio.
User: Select an aspect ratio from the drop-down menu that displays when you select this option.
Absolute: Guide is defined by absolute pixel dimensions rather than aspect ratio and scale. When you select
Absolute, the Width/Height fields replace the Scale field.
SCALE
Percentage to scale guide from its maximum possible size. Available range is 0–100%.

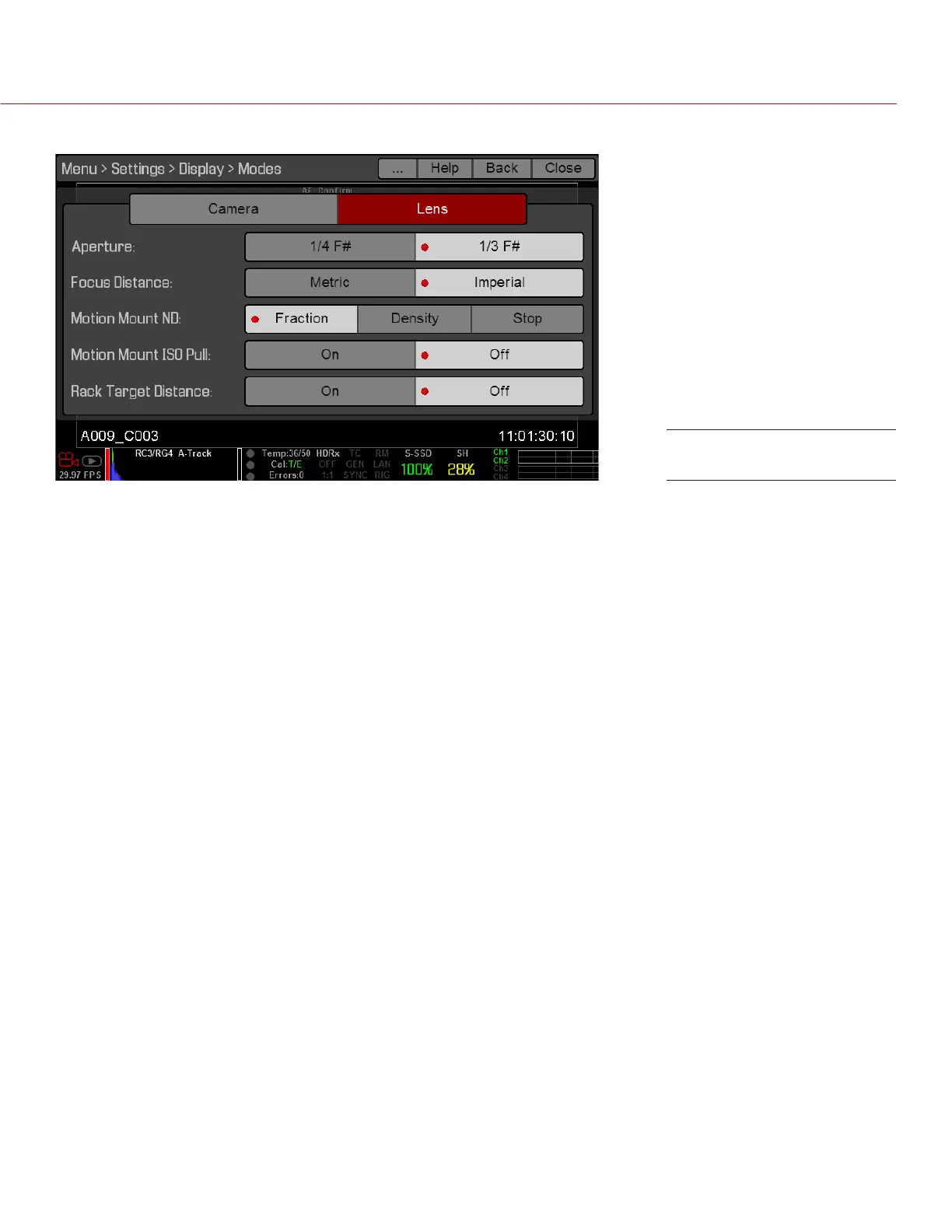

Display Mode: Lens
