RED DSMC OPERATION GUIDE: EPIC/SCARLET
COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J | 39

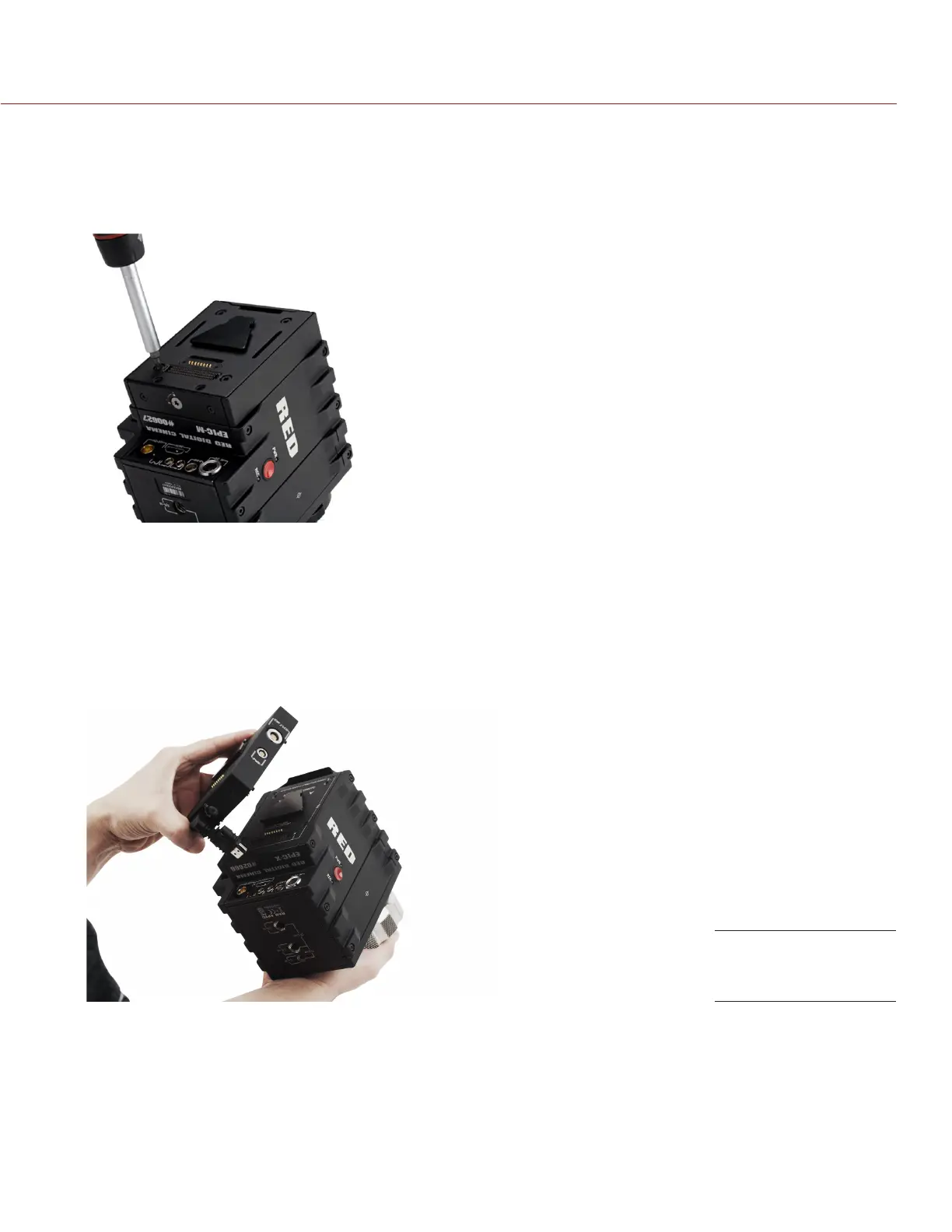

REMOVE THE MODULE ADAPTOR
REQUIRED TOOL: T20 TORX driver
1. Turn off the BRAIN.
2. Use a T20 TORX driver to loosen the screws attaching the Module Adaptor to the BRAIN.
3. Remove the Module Adaptor from the BRAIN.
INSTALL THE +1 ADAPTOR MODULE
REQUIRED TOOL: T20 TORX driver
1. Turn off the BRAIN.
2. Remove the REDMOTE, if attached.
3. Position the +1 Adaptor Module over the V-mount on the rear of the BRAIN.
Install the +1 Module
Adaptor
