RED DSMC OPERATION GUIDE: EPIC/SCARLET

955-0020_V6.0, REV-J | 40

4. Insert the HDMI connector into the HDMI port on the BRAIN.

5. Apply pressure and tighten the four (4) captive screws in a cross pattern (“X” pattern) approximately two (2)

turns each using a T20 TORX driver. DO NOT FULLY TIGHTEN.

6. Fully tighten the four (4) screws in a cross pattern (“X” pattern) using a T20 TORX driver.

WARNING: DO NOT OVERTIGHTEN.

REMOVE THE +1 ADAPTOR MODULE

REQUIRED TOOL: T20 TORX driver

1. Turn off the BRAIN.

2. Loosen the four (4) captive mounting screws in a cross pattern (“X” pattern) using a a T20 TORX driver.

3. Disconnect the HDMI connector from the BRAIN.

4. Remove the +1 Adaptor Module from the BRAIN.

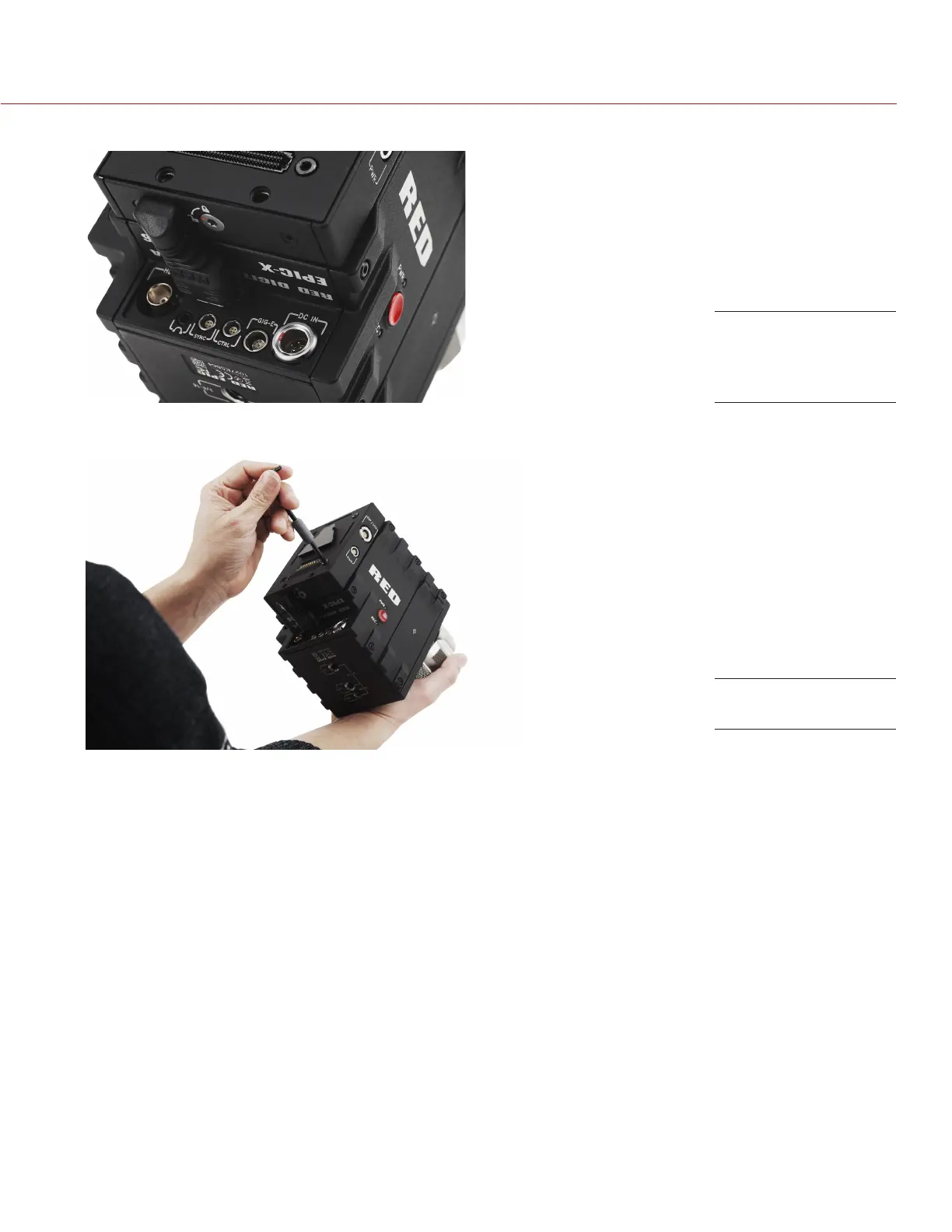

Insert the HDMI

connector to the

BRAIN

Tighten screws
