RED DSMC OPERATION GUIDE: EPIC/SCARLET
COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J | 41
ATTACH A DSMC MODULE
REQUIRED TOOL: T20 TORX driver
1. Turn off the BRAIN.
2. Insert the lip at the top of the module into the recess at the top of the adaptor module.
3. Rotate the module down flush with the rear of the adaptor module.
4. Apply pressure and use a T20 TORX driver to turn the lock on the bottom of the adaptor module clockwise
into the Lock position.
REMOVE A DSMC MODULE
REQUIRED TOOL: T20 TORX driver
1. Turn off the BRAIN.
2. Use a T20 TORX driver to turn the lock on the adaptor module counter-clockwise to the Unlock position.
3. Rotate the module upwards and away from the adaptor module to disengage.
4. Remove the module.

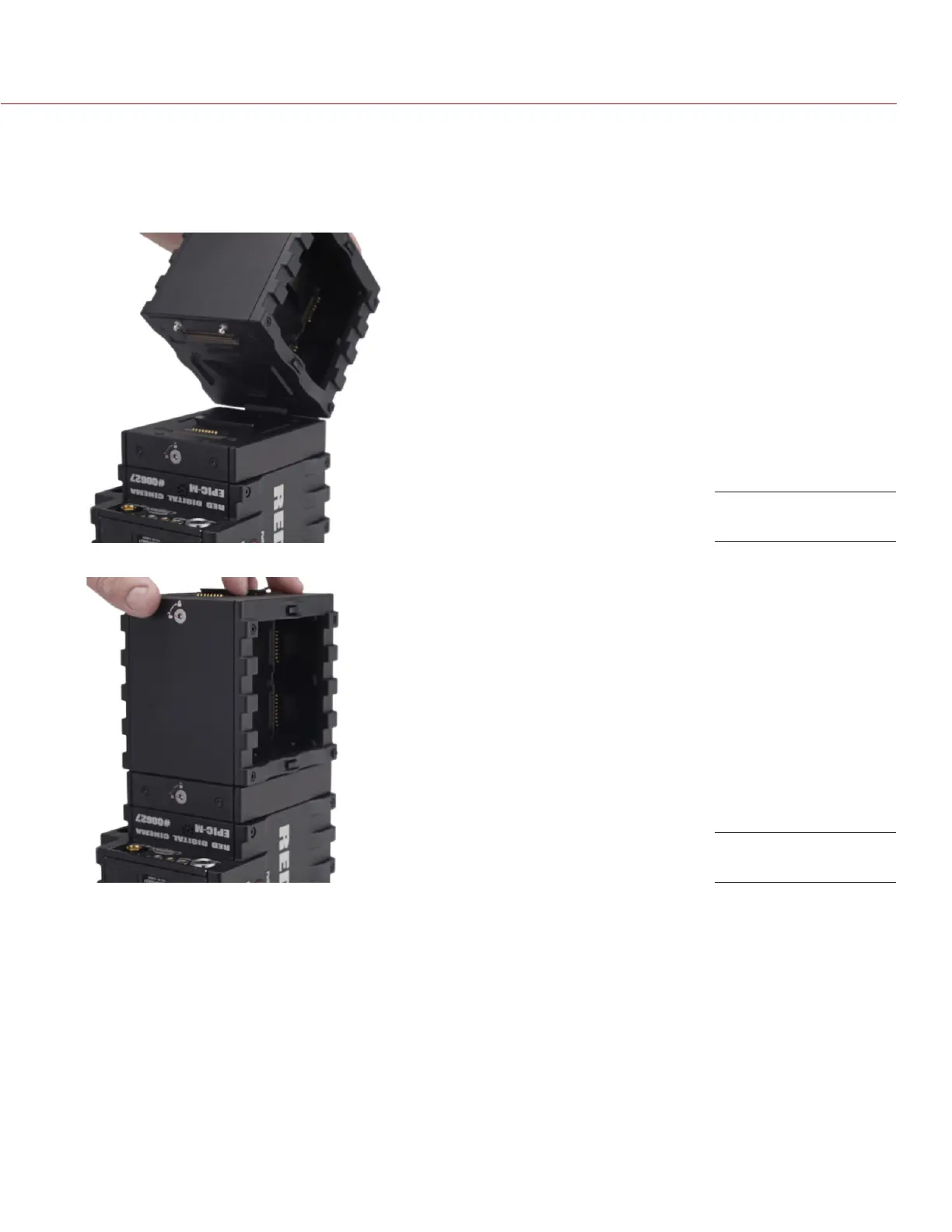

Insert module lip
Press module flush

RED Epic Specifications

General

Sensor	Mysterium-X
Resolution	5120 x 2700 (5K)
Lens Mount	PL Mount
Frame Rates	1-120 fps
Dynamic Range	13.5 stops
Recording Format	REDCODE RAW
Media	REDMAG (SSD)
Weight	5 lbs (2.3 kg) body only
Sensor Size	27.7 mm x 14.6 mm
Operating Temperature	32°F to 104°F (0°C to 40°C)
