RED DSMC OPERATION GUIDE: EPIC/SCARLET

955-0020_V6.0, REV-J | 46

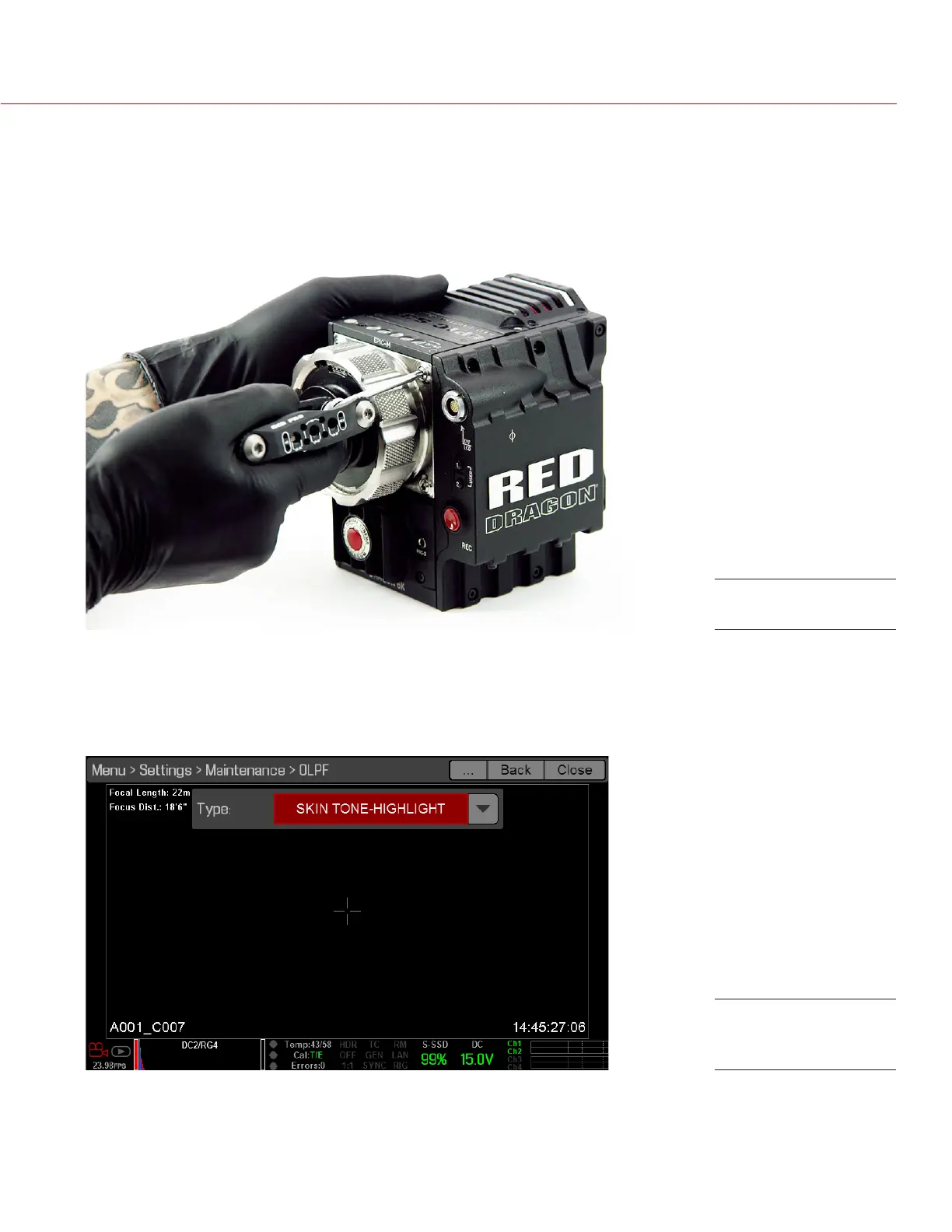

14. Replace and loosely tighten the four (4) M4x0.7 x 8 mm lens mount screws in a cross pattern (“X” pattern)

using a T20 TORX driver. DO NOT FULLY TIGHTEN.

NOTE: The DSMC Mg PL Mount 2.0 has captive screws that are not removable from the mount.

15. Fully tighten the four (4) lens mount screws in a cross pattern (“X” pattern) using a T20 TORX driver. DO

NOT exceed 350 in-oz, or damage may occur.

NOTE: DO NOT OVERTIGHTEN.

16. Turn on the BRAIN.

17. Go to Menu > Settings > Maintenance > OLPF.

18. Select the installed OLPF from the Type drop-down menu.

IMPORTANT: Ensure the correct OLPF type is selected from the drop-down menu. Failure to select the

correct OLPF type will affect color accuracy. For more information, go to “OLPF” on page 121.

Replace Lens Mount

OLPF Type menu

selection
